Installer manual Autotrol Magnum 293 - 298 Logix 742-762 - Installation
38 / 110 Ref. MKT-IM-012 / D - 03.02.2022

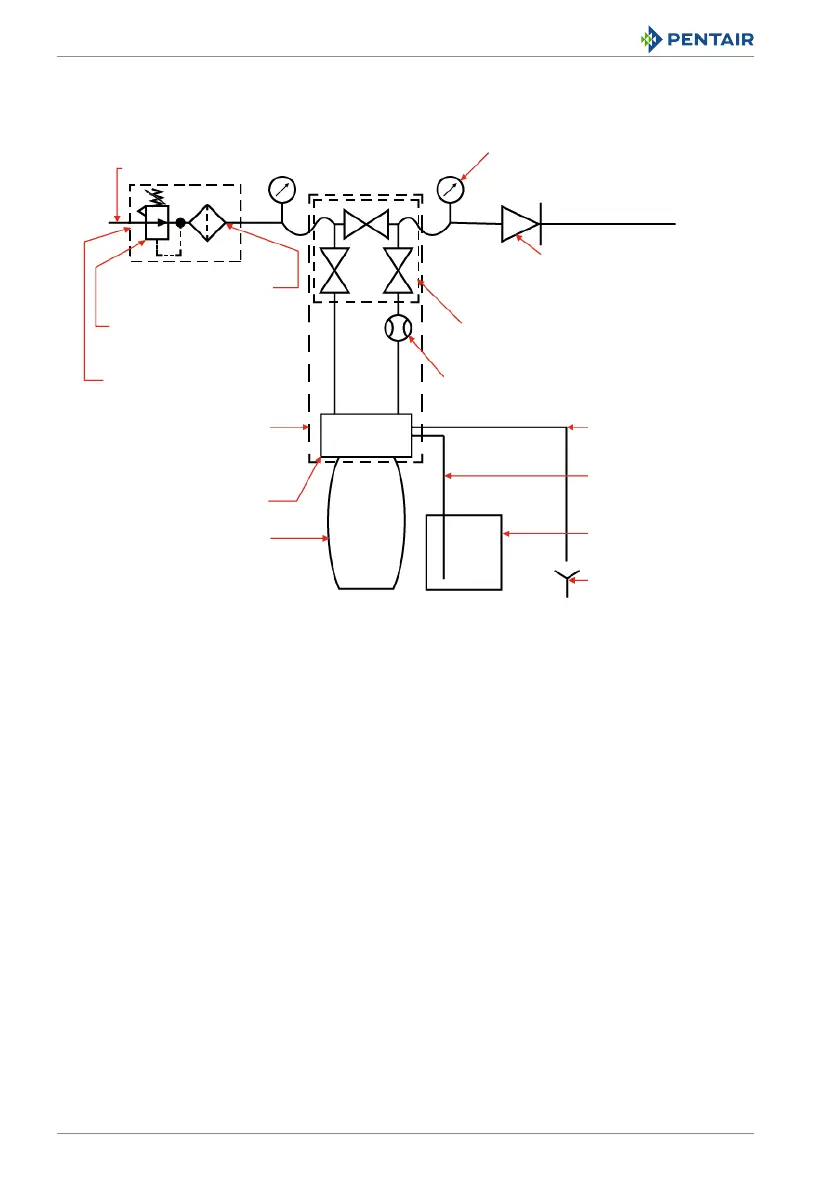

5.4 Block diagram and configuration example
Can be integrated in the
valve
Pressure gauge
Valve
Resin tank
Filter cartridge
Main inlet
Pressure regulator
Suggested options
Check valve to prevent water
harm
By-pass
Meter
Drain line
Brine line
Brine tank
Drain
Block diagram
User’s line
