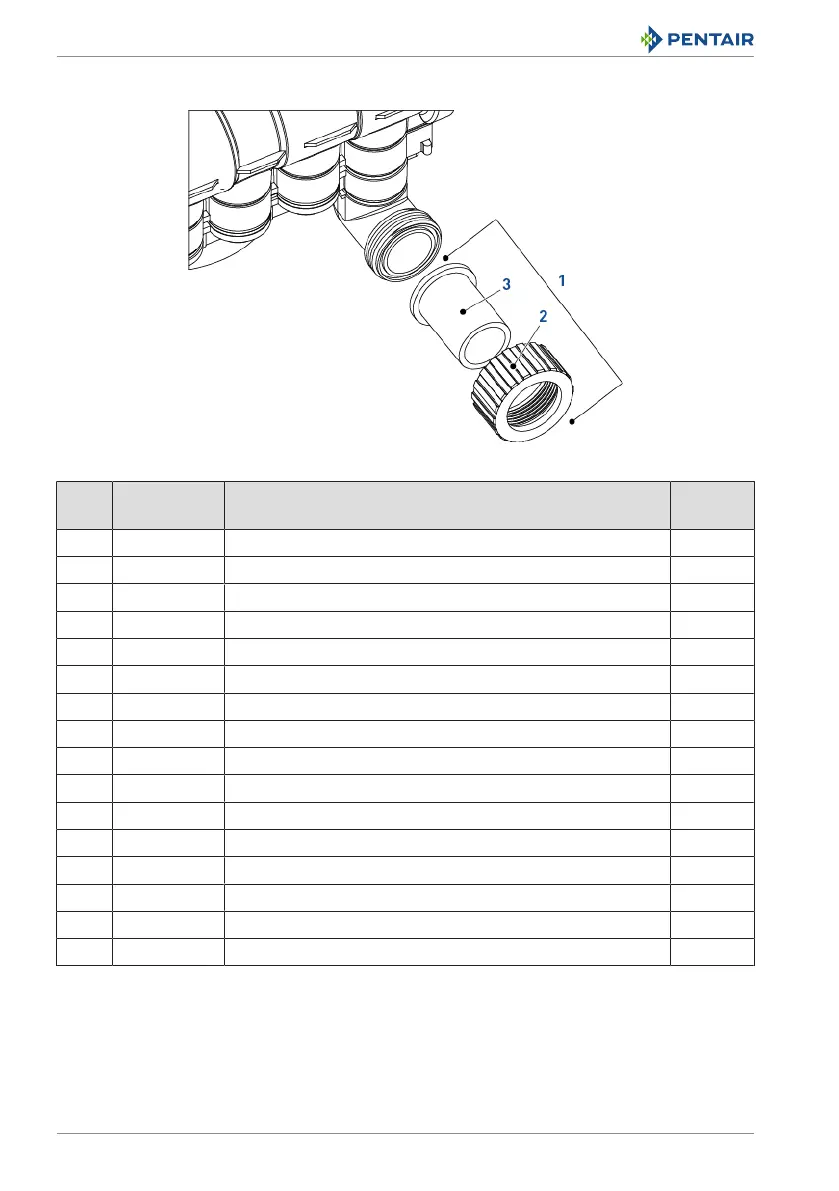

11.2 Magnum connections
Item Part number Description Assembly
quantity
1 1001655 Magnum Cv 1 ½" - 1 ½" PVC adapter kit 1
* 1001656 Magnum Cv 1 ½" - 50 mm PVC adapter kit 1
* 3023674 Magnum IT/Cv plus 2" - 2" BSP adapter kit 1
* 1040784 Magnum IT/Cv plus 2" - 2" PVC adapter kit 1
* 1040785 Magnum IT/Cv plus 2" - 63 mm PVC adapter kit 1
2 1000356 1 ½" adapter nut for Magnum Cv 1
3 3014556 1 ½" stainless steel BSP adapter 1
* 1000358 1 ½" PVC adapter 1
* 1000359 50 mm metric CPVC adapter 1
* 1010160 1 ½" adapter O-ring 1
* 1010165 2" adapter O-ring 1
* 1040921 Side mount adapter 1
* 1010162 O-ring tank adaptor 1
* 1010160 Riser tube O-ring 1
* 3024790 Magnum stainless steel tank adaptor 4" 1
* CH20805 Magnum tank adapter, Noryl 6" flanged kit 1
* Not shown
