11

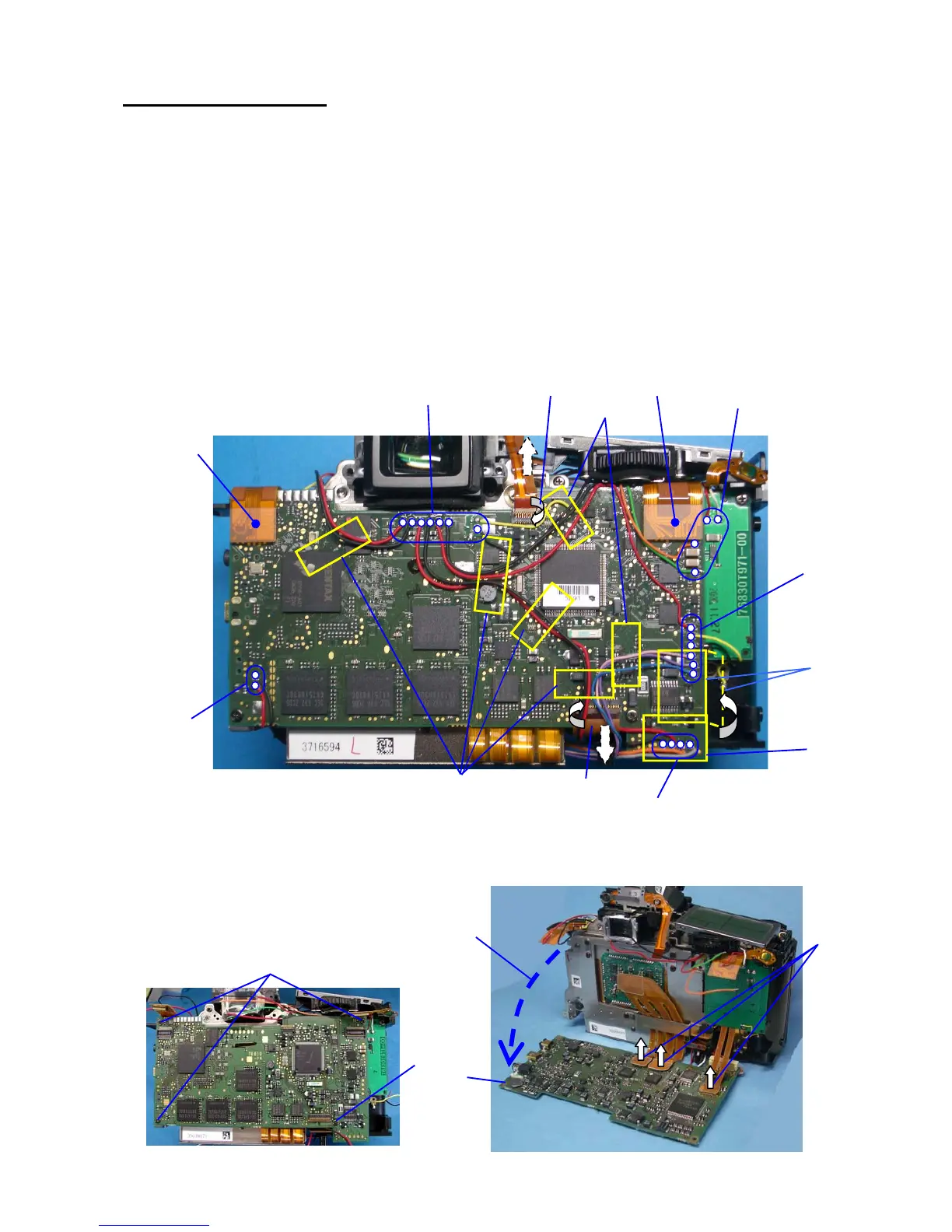

5. 0-T100 (Main PC board)
① Peel off the BT (5x15)… (x6)
② Peel off T90
③ Peel off U5 (76030- A35)
④ Unsolder 7 lead wires
⑤ Unsolder 2 lead wires
⑥ Unsolder 4 lead wires
⑦ Unsolder 6 lead wires
⑧ Unsolder 4 lead wires
⑨ Disconnect flex from connector (2 points Plug-in connector)
⑩ Disconnect flex from connector (2 points Flip lock connector)
…Peel off the J100
⑪ Screw (x3)
⑫Screw (TY-screw)
⑬ Put 0-T100 down as shown in figure bellow.
[Caution]The flex from SR/CCD should be take care carefully, otherwise it will effect the performance of
SR function.
⑭Disconnect flex from connector
(3 points Plug-in connector)
⑮T100
⑬
⑭
⑮
⑪
⑫
④
⑥
⑤
⑦
⑧
⑨
①
①
⑨
⑩
②
③
⑩
To Next Page
