6. 0-T970（SD circuit block）

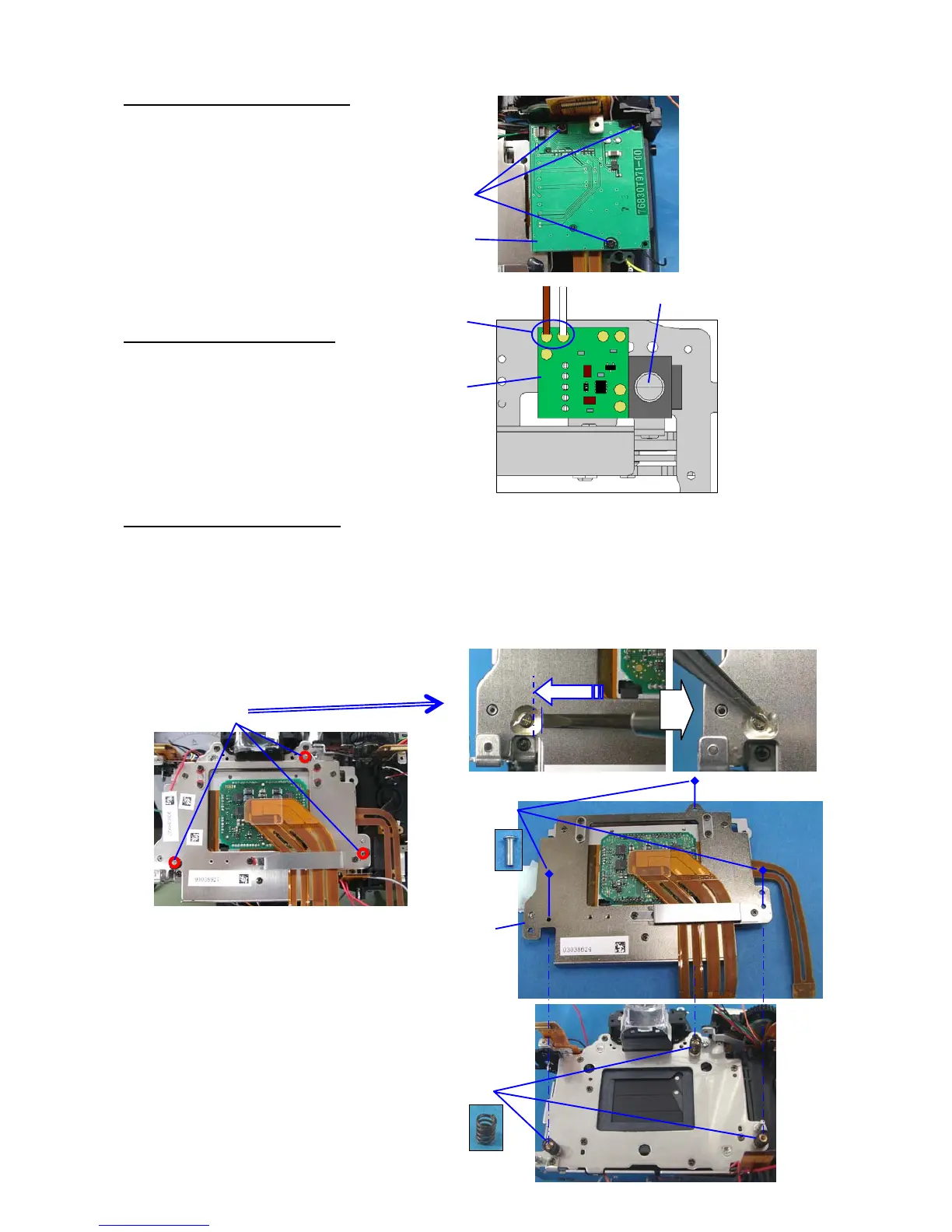

① Screw (x3)
② 0-T970
7. 0-T770 (PZ Circuit block)
① Unsolder lead wire x2 (Brown and White)
② Remove shoulder screw
③ 0-T770
8. 0-C000（SR/CCD block）
[Caution 1] Pay attention, there is powerful magnet is carried in the inside of a CCD/SR block.
[Caution 2] Since a performance is spoiled, a CCD/SR block cannot be disassembled and also don't apply
the external pressure to a movable part
[Caution 3] The flex from SR/CCD should be take care carefully, otherwise it will effect the performance of
SR function.
① Remove the glue with using tools. (3 position)
② A31 Adjusting screws x3
③ 0-C000 --- Do not scratch on surface of CCD.
④ A32 Coil spring x3
①
②
②
③
①
①
②
③
④
