52
3：AF AND RELATED ADJUST
↓

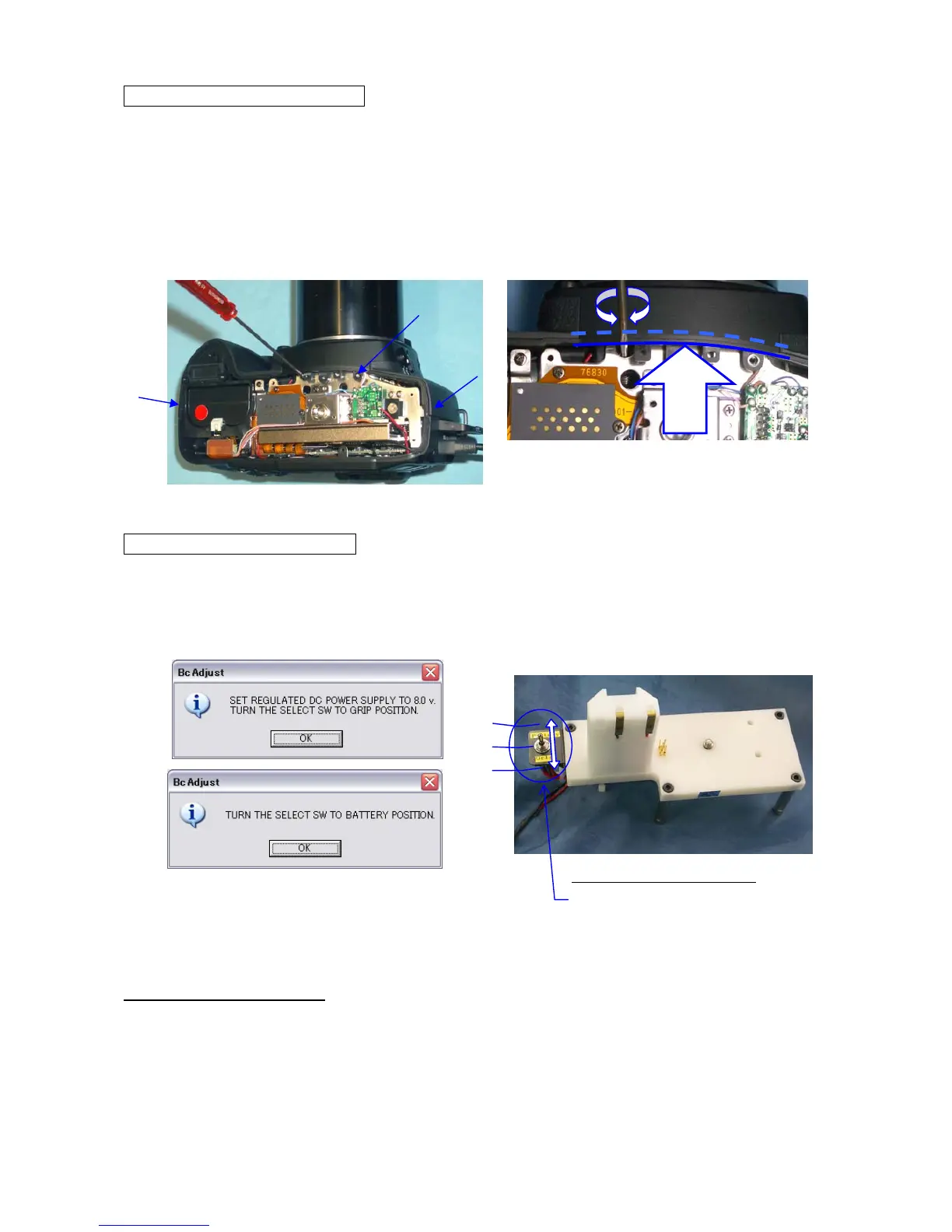

Method for [CCD POSITION ADJUST]
① Remove the bottom cover. (Leave power and USB cable)
② Remove 3 screws.
③ Pull front cover to front side and put driver then turn the adjustment screw.
6：BATTERY LEVEL ADJUST
↓[Required equipments]
Battery adaptor for 76830, Regulated DC power supply (8V/3A)
[Caution] When using battery adaptor, remove terminal cover for D-DB2.
① Follow the screen and set voltage and the Select switch.
Battery level check (optional)
*It can be confirmed battery side or D-BG2 side.
Set the voltage to DC8.0V correctly.
① Follow the screen and attach the battery adaptor then click [BC CHECK]
② Click [DUMP] (Read EEPROM data and indicate as shown figure -- [1])
①
②
③
Battery adaptor for 76830
Select SW：①Battery
②Battery & Grip
③Grip
To Next Page
