62
Table of Error Code (SR unit adjustment)

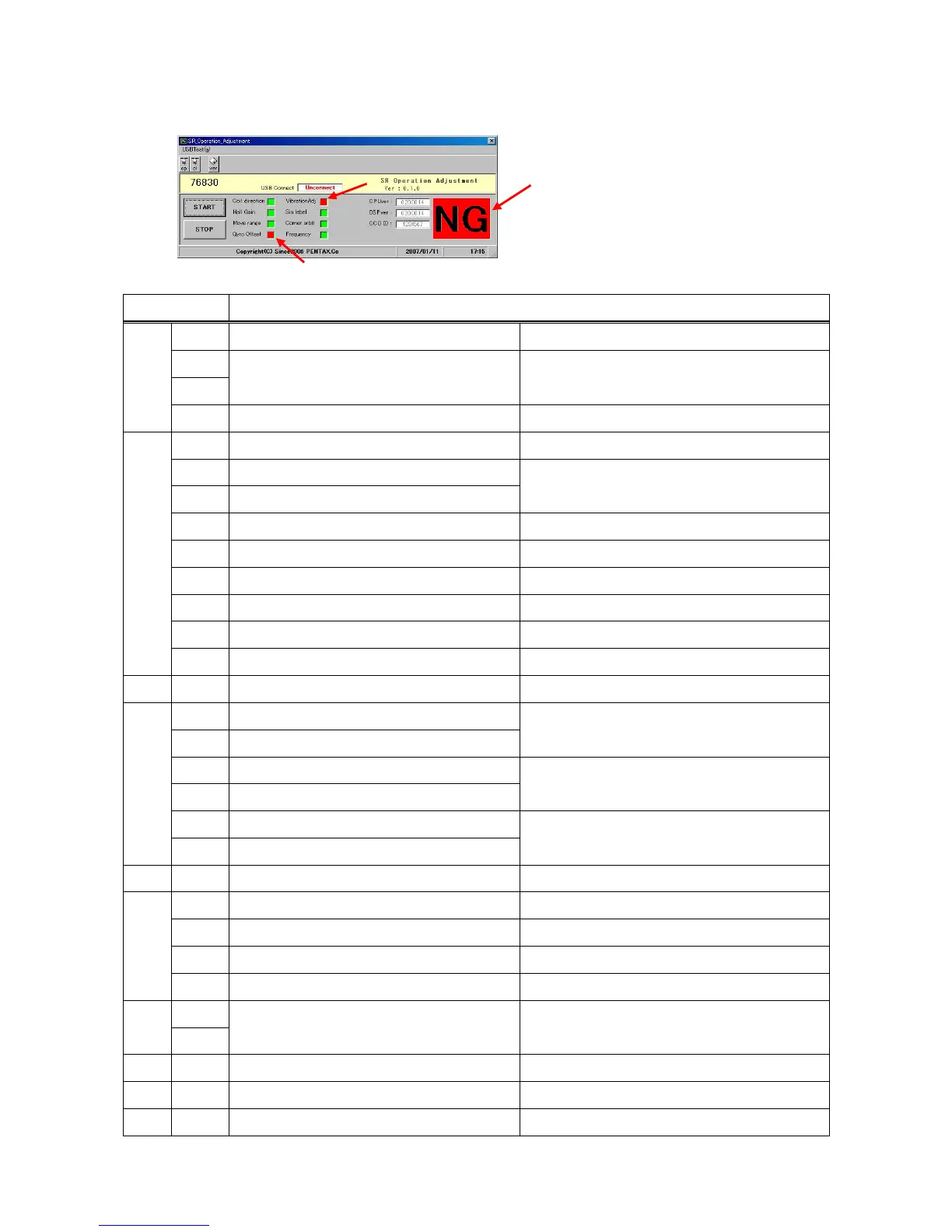

When adjustment error is occurred, below screen will be displayed.
[Table of Error Code for SR unit adjustment] (aa-bb)
Error code Contents
00 DUTY ERROR (X axis) X axis DUTY level error
01
02
DRIVE ERROR (YL,YR axis) Y axis driving error
01
03 DUTY ERROR (YL,YR axis) Y axis DUTY level error
00 Verf is NO GOOD (Hall X axis AD) X axis hall sensor AD value error
01 Verf is NO GOOD (Hall YL axis AD)
02 Verf is NO GOOD (Hall YR axis AD)
Y axis hall sensor AD value error
03 Hall Gain is NO GOOD hall sensor Vref is over limit
04 ---------
05 ---------
06 Hall Gain is NO GOOD (Iref X) X axis hall sensor Iref level error
07 Hall Gain is NO GOOD (Iref YL) YL axis hall sensor Iref level error
02
08 Hall Gain is NO GOOD (Iref YR) YR axis hall sensor Iref level error
03 00 Move range Error
X，Y axis move range error
00 Overlimit (X axis Error)
01 Overlimit (X axis Error All)
X axis oscillation level is over limit
02 Overlimit (YL axis Error)
03 Overlimit (YL axis Error All)
YL axis oscillation level is over limit
04 Overlimit (YR axis Error)
04
05 Overlimit (YR axis Error All)
YR axis oscillation level is over limit
05 00 ---------
00 Overlimit (Corner orbit [UR]) UR axis driving oscillation level is over limit
01 Overlimit (Corner orbit [UL]) UL axis driving oscillation level is over limit
02 Overlimit (Corner orbit [LR]) LR axis driving oscillation level is over limit
06
03 Overlimit (Corner orbit [LL]) LL axis driving oscillation level is over limit
00 07
01
Overlimit (Frequency) Frequency characteristic level error
08 00 ---------
09 00 Gyro Offset Error Gyro output is uneven
10 XX Vibratuon Adjustment No Good Frequency adjustment error
To Next Page
