Pepperl+Fuchs OPC - Network Cable; RS-232 Interface; VGA Output

OPC / OPD / OPE
Product Description
2015-07
17
Other lengths on request.
Field-attachable M12 socket
4.5.2 Network Cable
The sensor is connected to the network using an M12 plug.
4.5.3 RS-232 Interface
The sensor's RS-232 interface is connected via an M12 plug.
4.5.4 VGA Output
The sensor is connected to a monitor using an M9 plug.

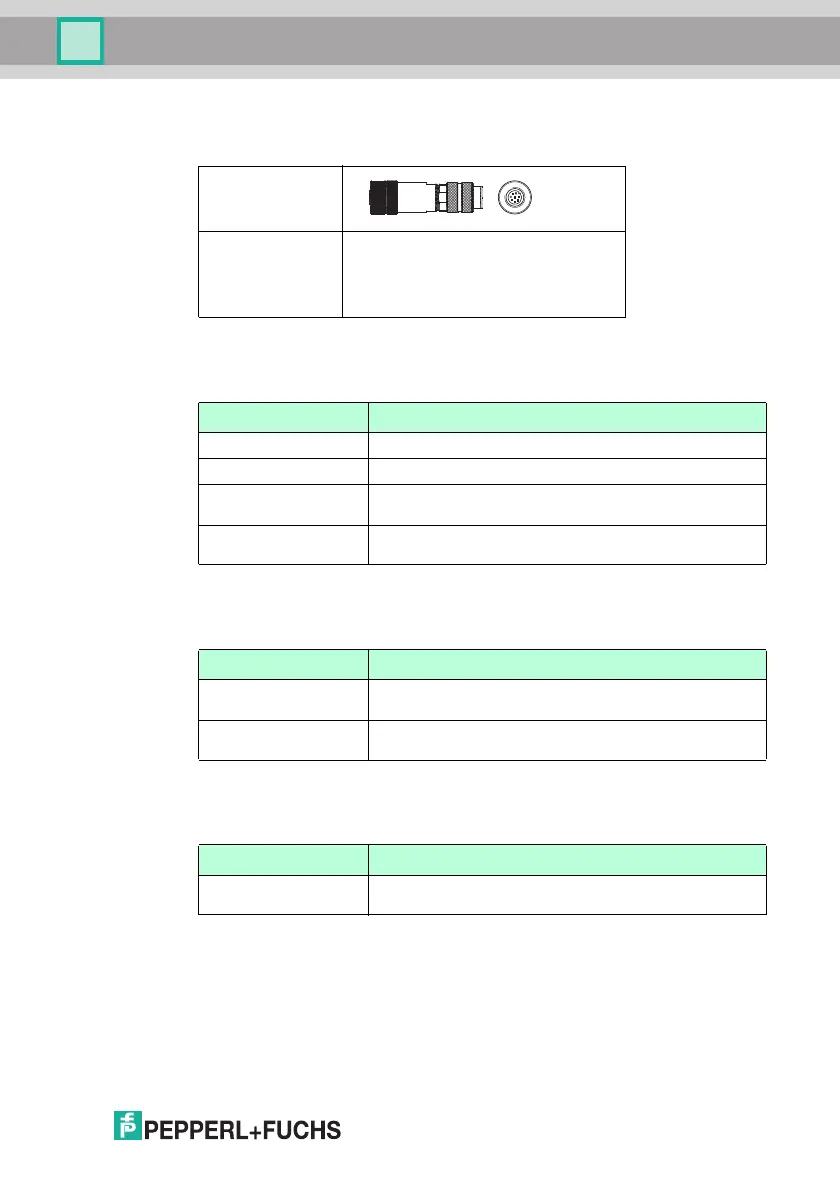

Model number
V19-G-ABG-PG9 ■ 8-pin M12 socket, straight
■ Screw terminals for max. 0.75 mm
2
PG9
cable gland
■ Cable diameter : 5 mm ... 8 mm
Designation Description
V45-G RJ45 network plug, field attachable
V1S-G M12 plug, 4-pin, field attachable
V1SD-G-2M-PUR-
ABG-V45X-G
Double-ended cordset, RJ45 network plug with M12 plug,
crossed, 4-pin
V1SD-G-2M-PUR-
ABG-V45-G
Double-ended cordset, RJ45 network plug with M12 plug, 4-
pin
Designation Description
V15S-G-5M-PUR-ABG Male single-ended cordset, M12, 5-pin, PUR cable, shielded
cap nut
V15S-G-5M-PUR-ABG-
SUBD9
Connection cable, M12 plug, 5 -pin, 9-pin to D-Sub housing
Designation Description
ODZ-MAC-CAB-VIDEO Video connection cable, round plug, 7-pin on D-Sub socket,
15-pin VGA, length: 2 m
