OPC / OPD / OPE
Product Description
2015-07
9
4.2 Indicators and Operating Controls
OPC reader and OPD reader
The illumination unit has 7 LED indicators that provide information on the various
device statuses.

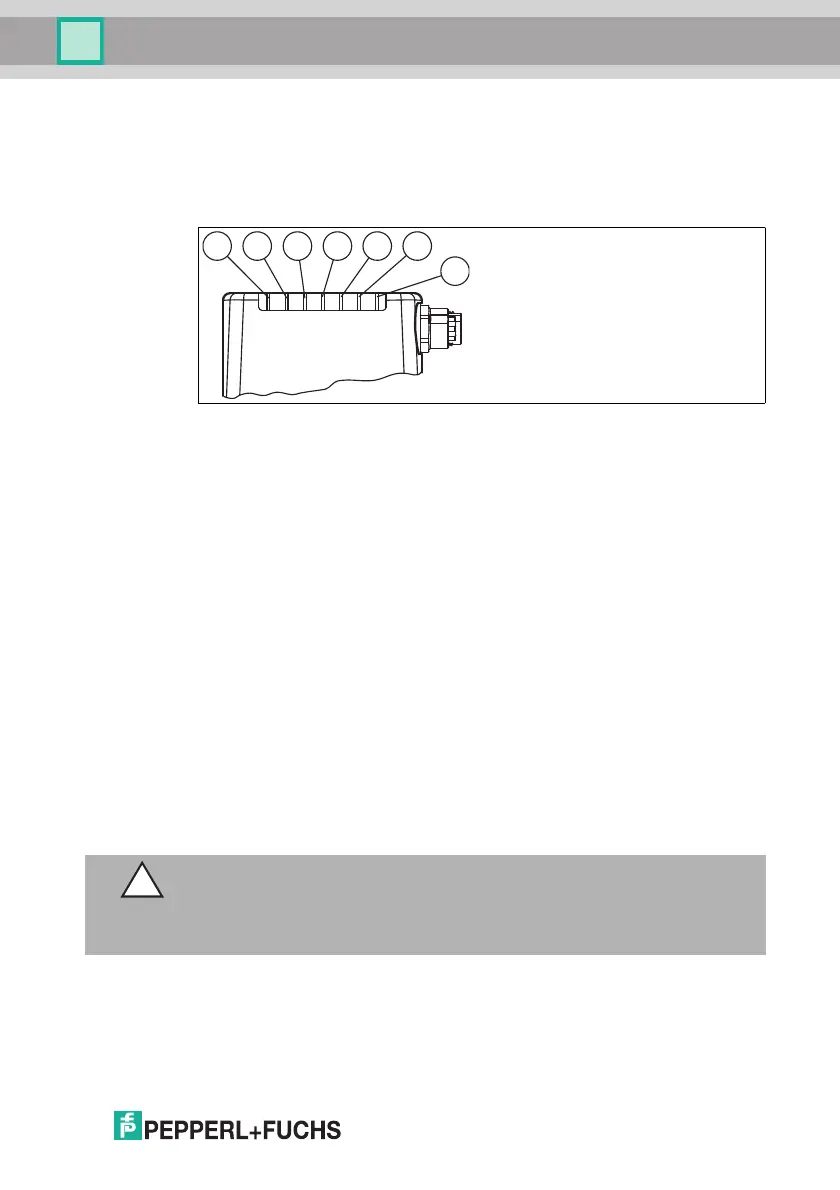

Figure 4.1 Indicators and Operating Con trols
1. DIAG 2
Yellow LED. Generates different flashing sequences to signal diagnostic
messages.
2. DIAG 1
Yellow LED. Generates different flashing sequences to signal diagnostic
messages.
3. Power (PWR)
Lights up green when the sensor is ready for operation.
4. Ready (READY)
Lights up yellow when the sensor is ready.
5. Reading process triggered (BAD)
Lights up yellow if the reading was unsuccessful.
6. Reading process triggered (GOOD)
Lights up yellow if the reading was successful.
7. Trigger sensor (TRG)
Lights up yellow when a connected trigger sensor is activated.
Caution!
Software update
The READY LED flashes while the sensor is being programmed. During this time,
the sensor must not be switched off.
