OPC / OPD / OPE
Installation
OPE mounting
The device has two M5 threads positioned on the base of the housing to allow
easy mounting of the reader in your plant.
The read distance differs according to the reader. You can find the correct read
distance in the technical data for the reader to be installed.

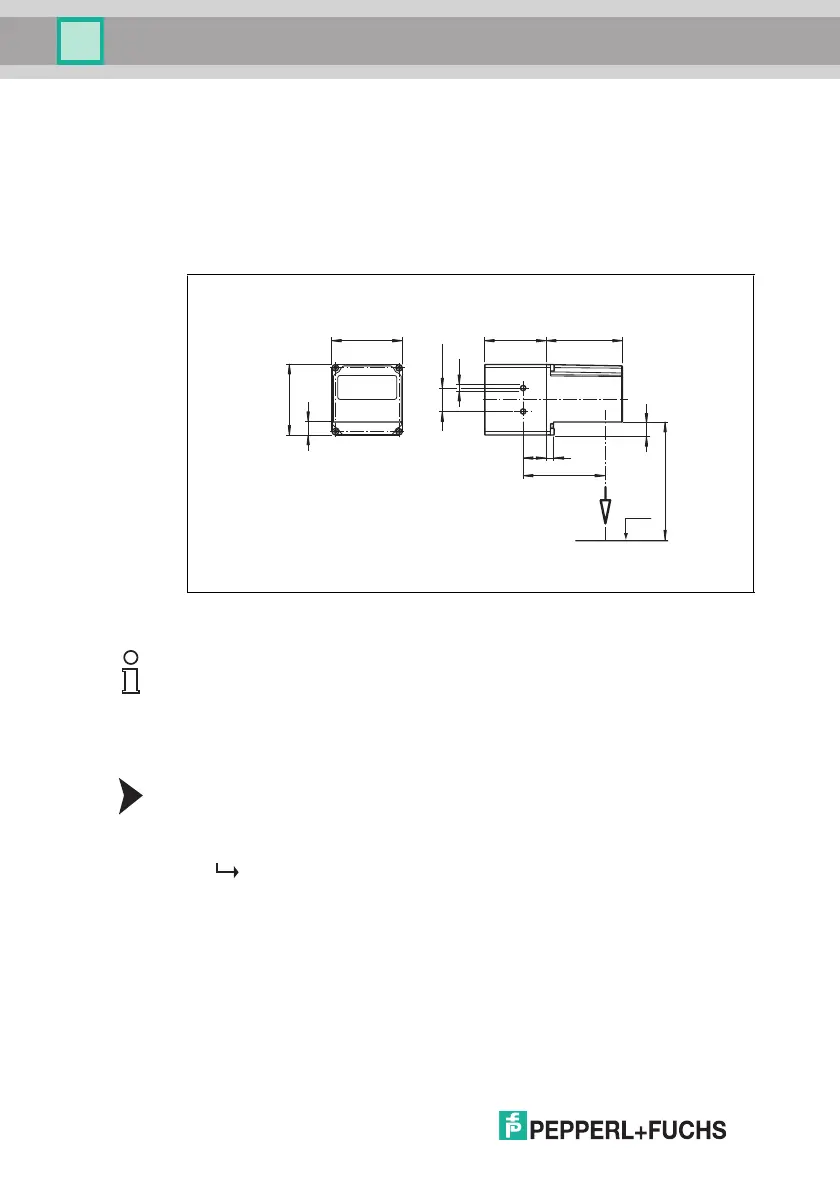

The following illustration shows all the relevant housing dimensions in mm:
Figure 5.1 Dimensions of the angle housing
5.3 Setting up the Power Supply
Connecting the Supply Voltage
1. Insert the 8-pin M12 socket into the plug provided on the side of the housing.
2. Screw the cap nut onto the connector as far as it will go.
This ensures that the power cable cannot be inadvertently pulled out.
Reading distance
11
60
60 65
M5
20 6
11
Code
52.7
20 ±0.1
72.5
Note!
Connection to ground
When installing the device, ensure that it is has a ground connection.
