OPC / OPD / OPE
Product Description

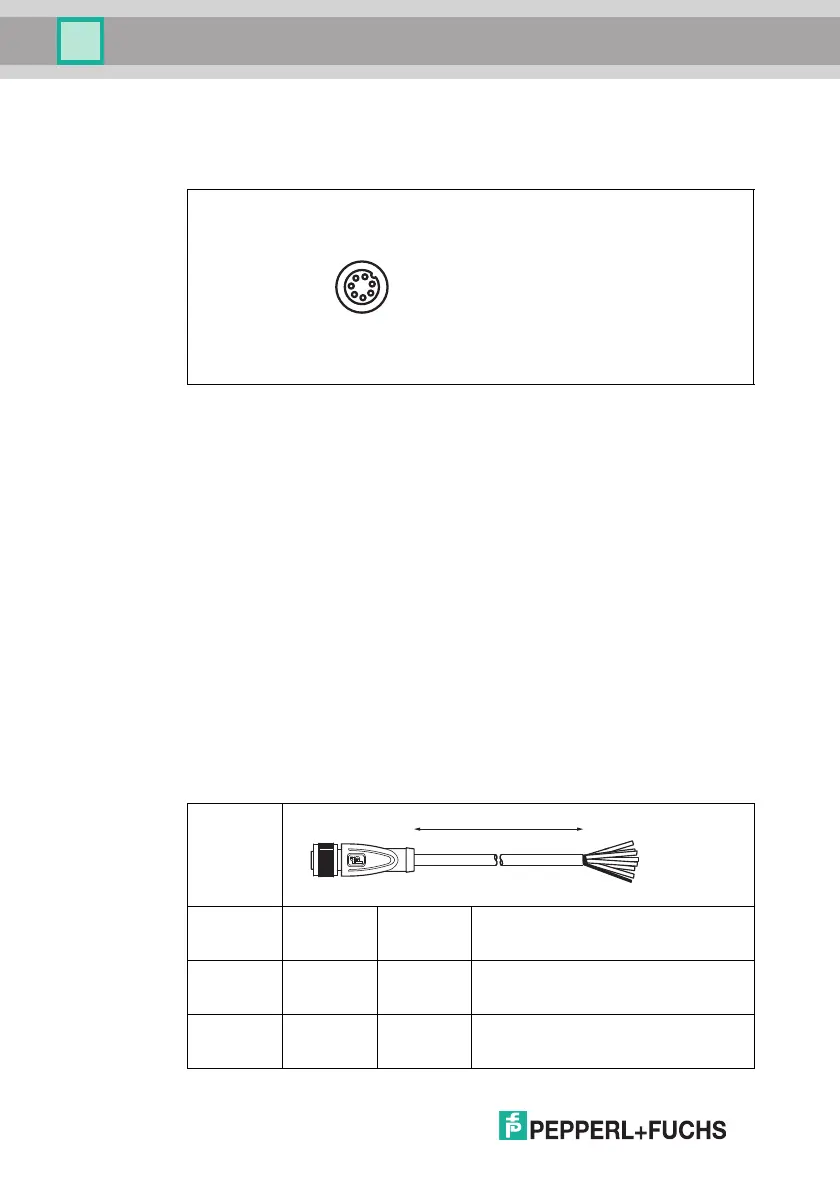

VGA Output
There is a 7-pin M9 socket on the back of the sensor housing to connect the VGA
plug. The following diagram shows the pinning:
1. OUT VSYNC
2. GND
3. OUT R
4. OUT G
5. GND
6. OUT B
7. OUT HSYNC
4.4 Scope of Delivery
■ Optical Print Inspector
■ Quick start guide
4.5 Accessories
Various accessories are available.
4.5.1 Power Supply
Use the following double-ended cordset to connect the power supply, inputs, and
outputs to the sensor.
Female field connector
1
3
4
5
6
7
2
Model
numb er
V19-G-2M-
PUR-ABG
8-pin M12
socket,
straight
L = 2 m Open cable end with multistranded
conductors
V19-G-5M-
PUR-ABG
8-pin M12
socket,
straight
L = 5 m Open cable end with multistranded
conductors
V19-G-
10M-PUR-
ABG
8-pin M12
socket,
straight
L = 10 m Open cable end with multistranded
conductors
L
