OPC / OPD / OPE
Vision Configurator Software
7.3.4 Trigger Modes Tab

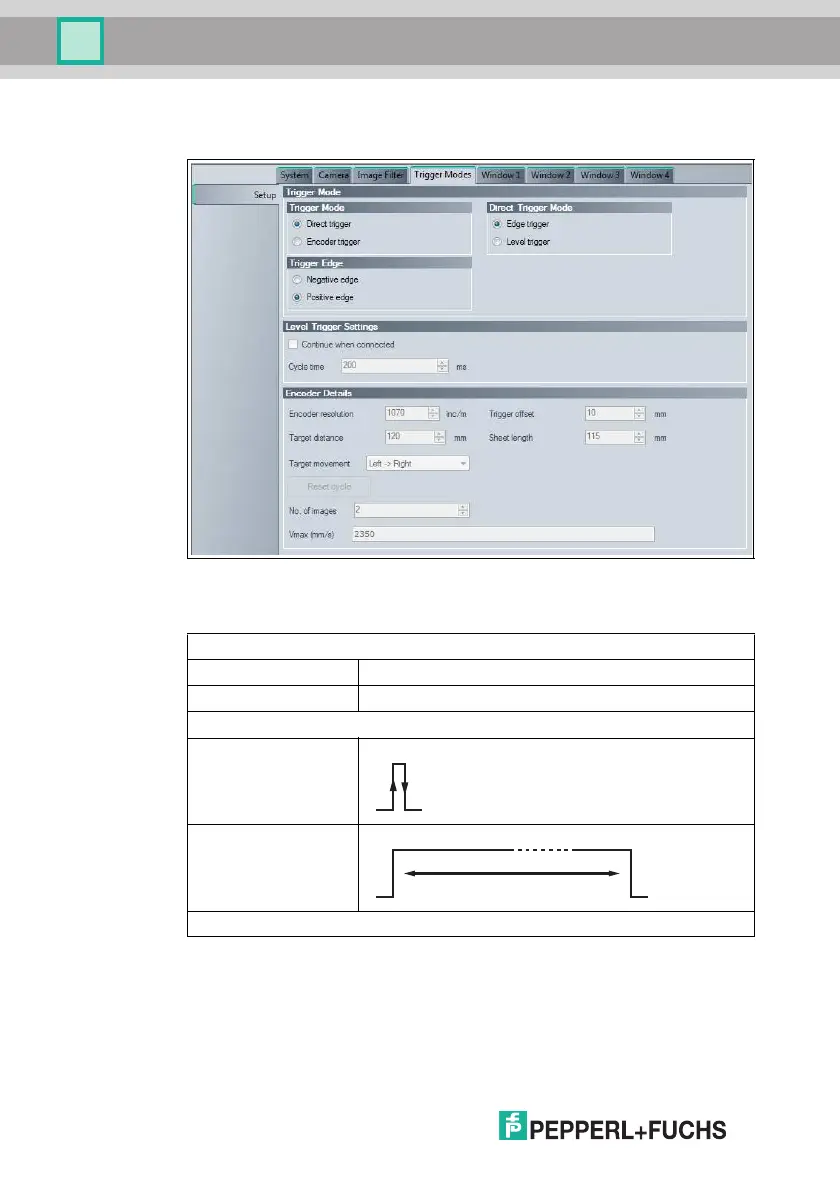

Figure 7.13 Trigger Modes tab, Setup menu item
Trigger Mode
Trigger Modes Tab, Setup Menu Item
Trigger mode
Direct trigger Trigger is evaluated directly
Encoder trigger Trigger is generated by rotary encoder increments
Direct Trigger Mode
Edge trigger Trigger signal edge activates a trigger
Level trigger Signal level triggers a continuous trigger
Trigger Edge
