Pepperl+Fuchs OPC - Interfaces and Connections

2015-07
12
OPC / OPD / OPE
Product Description
4.3 Interfaces and Connections
OPC reader and OPD reader
The device includes the following connections:

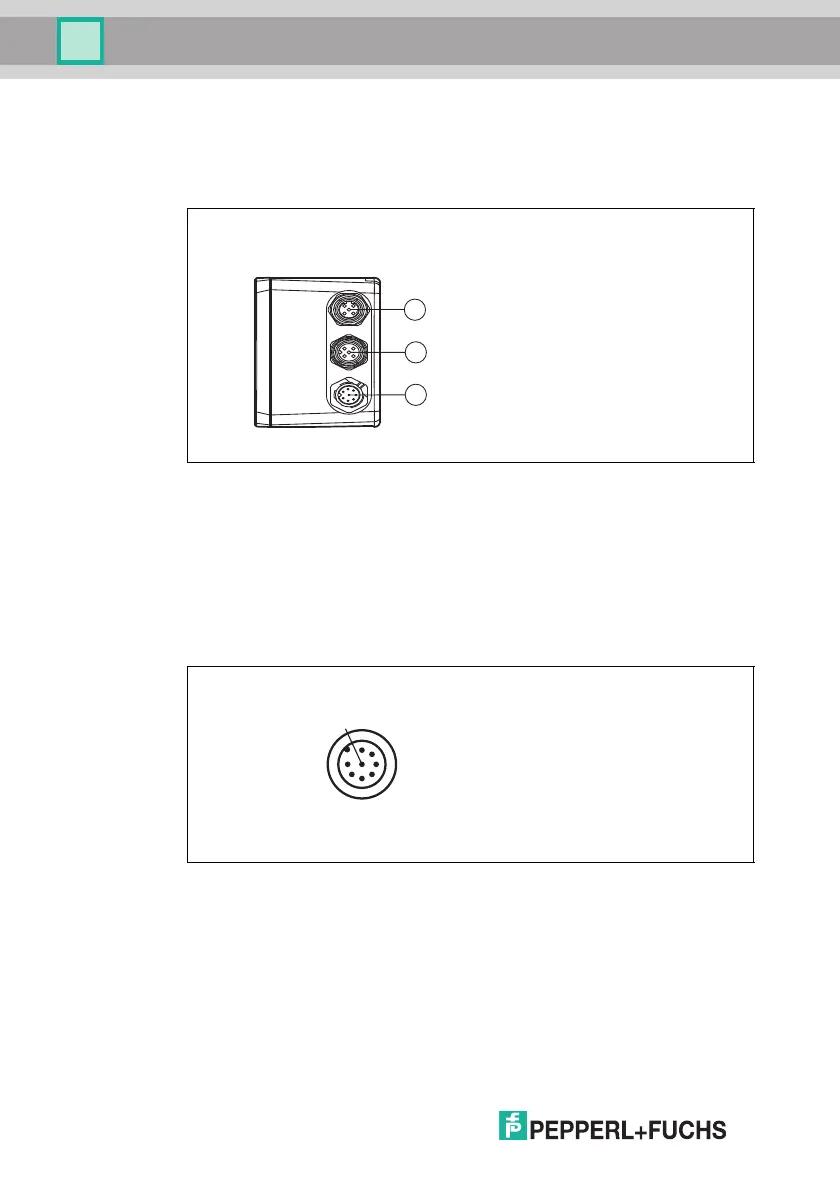

Figure 4.2 Device Connections
1. Network (4-pin M12 socket)
2. Input IO (5-pin M12 socket)
3. Power supply, inputs, and outputs (8-pin M12 plug)
Power Supply
There is an 8-pin M12 plug on the side of the housing for connecting the power
supply, and the inputs and outputs. The following diagram shows the pinning:
Figure 4.3 Connection layout for operating voltage, and inputs and outputs
1. Trigger IN
2. + UB
3. OUT Good
4. OUT Bad
5. IN 1
6. OUT 1
7. GND
8. OUT match code
1
2
3
1
4
6
7
8
53
2
