7.3 Configuration window
Various parameters are specified in the configuration window. The individual
parameters depend on the current authorization level and are, therefore, not
always all visible. Some features are available in different variants only.
Depending on the parameters set, some fields will be grayed out.
7.3.1 System Tab

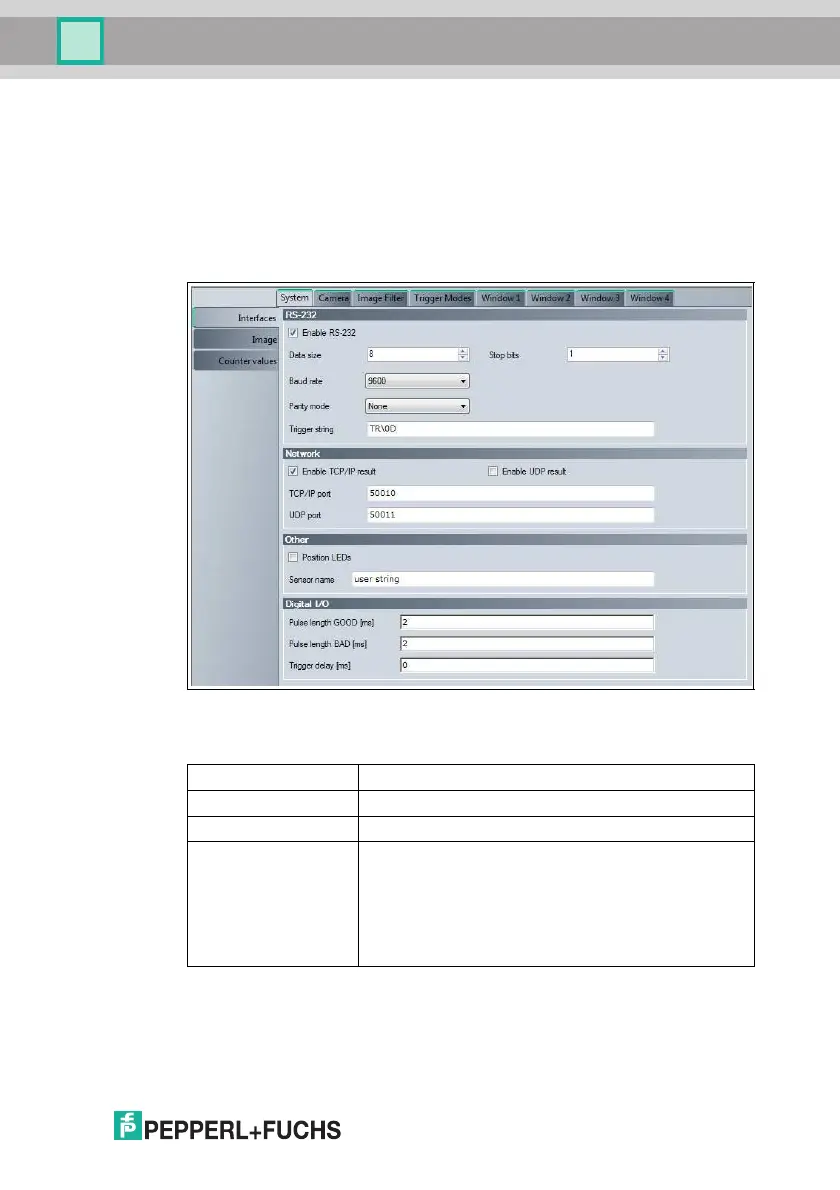

Figure 7.8 System tab, Interfaces menu item
RS-232
System Tab, Interfaces Menu Item
Enable RS-232 Enables or disables RS-232 transmission
Data size Number of data bits. Adjustment range 5 ... 8
Stop bits Number of stop bits. Adjustment rang e 1 ... 2
Baud rate Selection of the baud rate
■ 9 600
■ 5 7600
■ 3 8400
■ 1 9200
■ 1 15200
