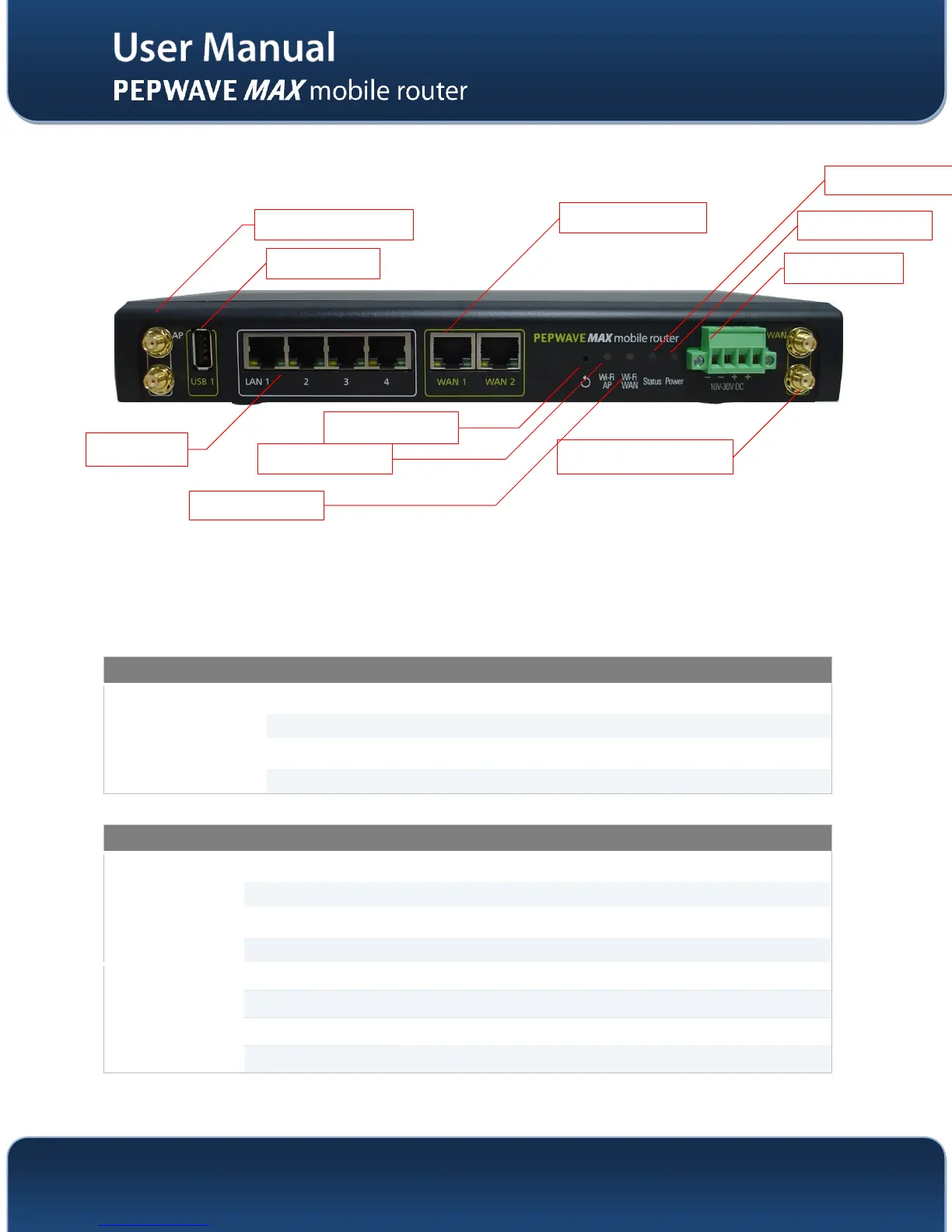

4.2 MAX 700
4.2.1 Front Panel Appearance
4.2.2 LED Indicators
The statuses indicated by the Front Panel LEDs are as follows:
Status Indicators
Status
OFF
System initializing
Red
Booting up or busy
Blinking red
Boot up error
Green
Ready
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN
OFF
Disconnected
Blinking slowly
Connecting to network
Blinking
Connected to network with traffic
ON
Connected to network without traffic
Wi-Fi AP
OFF
Disabled
Blinking slowly
Enabled but no client connected
Blinking
Connected to network with traffic
ON
Client(s) connected to wireless network
LAN Ports
Ethernet WAN Port
Wi-Fi WAN Connector
Wi-Fi LAN Connector
USB Port
Wi-Fi AP LED
Wi-Fi WAN LED
Reset Button
Power LED
Terminal Block
Status LED
