4 Pepwave MAX Mobile Router Overview
4.1 MAX 600
4.1.1 Front Panel Appearance
4.1.2 LED Indicators

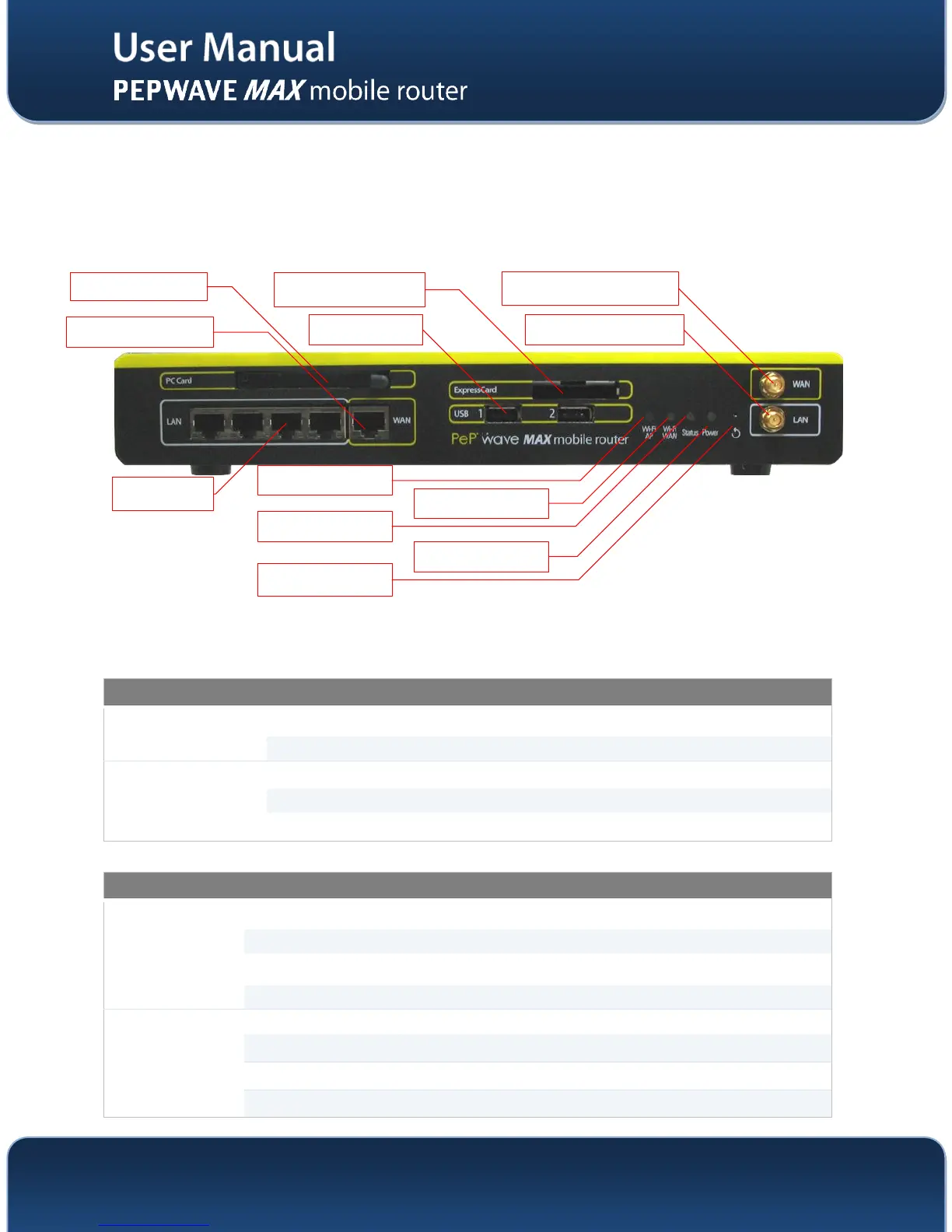

The statuses indicated by the Front Panel LEDs are as follows:
Power and Status Indicators
Power
OFF
Power off
Green
Power on
Status
OFF
System initializing
Red
Booting up or busy
Green
Ready state
Wi-Fi AP and Wi-Fi WAN Indicators
Wi-Fi WAN
OFF
Disabled Intermittent
Blinking
Trying to connect but not connected to any wireless network
ON
Connected to wireless network(s) without traffic
Continuous Blinking
Transferring data
Wi-Fi AP
OFF
Disabled Intermittent
Blinking
Enabled but no client connected
ON
Client(s) connected to wireless network
Continuous Blinking
Transferring data to wireless network
Wi-Fi AP LED
LAN Ports
Ethernet WAN Port
PC Card Slot
Express Card Slot
Wi-Fi WAN Connector
Wi-Fi LAN Connector
USB Ports
Status LED
Power LED
Wi-Fi WAN LED
Reset Button
