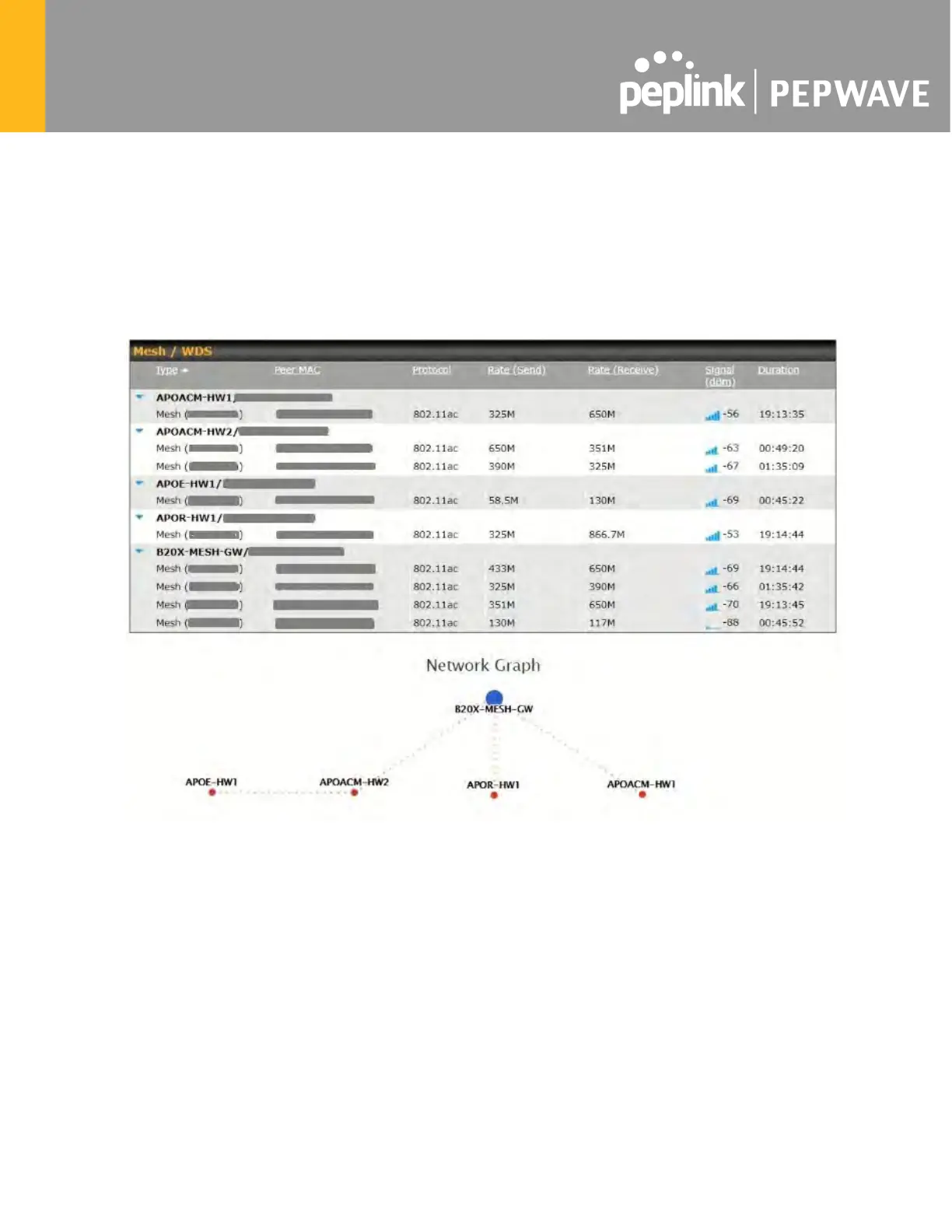

26.4 Mesh / WDS

Mesh / WDS allows you to monitor the status of your wireless distribution system (WDS) or

Mesh, and track activity by MAC address by navigating to AP > Controller Status > Mesh /

WDS. This table shows the detailed information of each AP, including protocol, transmit rate

(sent / received), signal strength, and duration.
