Advanced Maintenance . 85

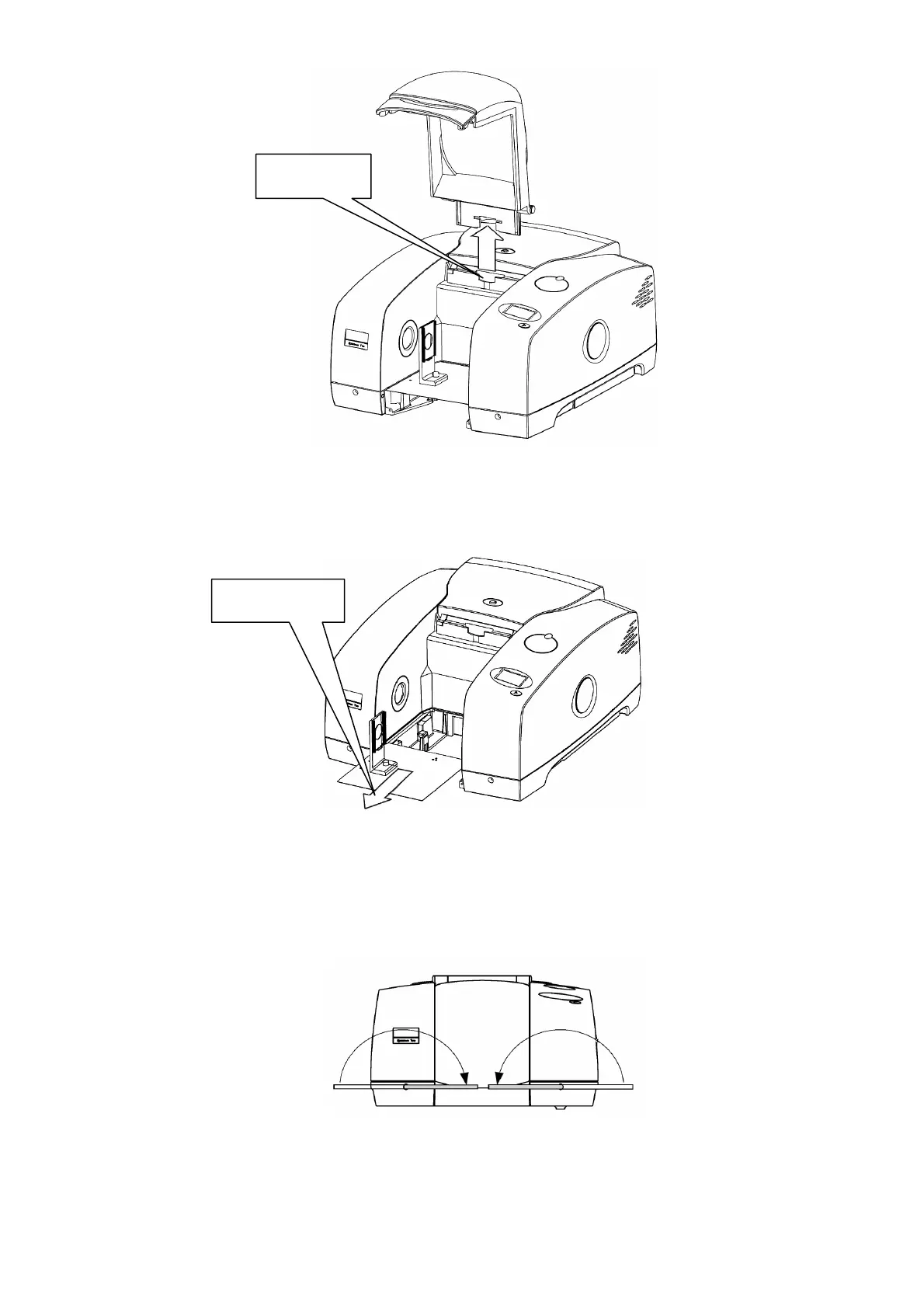

Figure 30 Removing the sample area cover
5. Remove the fitted sampling accessory, by pulling the blue release handle towards
you and sliding the accessory towards you (Figure 31).
Figure 31 Removing the sampling accessory
6. Undo the two locking bolts (Figure 32) on the front of the instrument using the
hexagonal wrench supplied; insert the wrench, so that the free end is pointing
horizontally away from the instrument and rotate the wrench 180
o
in the direction
indicated by the arrows in the figure.
Figure 32 Undoing the locking bolts
Sample Cover
Release Clip
Sampling Accessory
Release Handle
To Next Page
