Perkins 1206E-E66TA - Sensors and Electrical Components; Sensors and Electrical Components (Aftertreatment)

SEBU8603-01 37
Operation Section
Features and Controls
i04215952
Sensors and Electrical
Components
(Aftertreatment)
The illustration within the section shows the
typical loc
ations of the sensors and other electrical
components on the industrial engine. Specific engine
aftertreatment systems may appear different due to
the applica
tion.

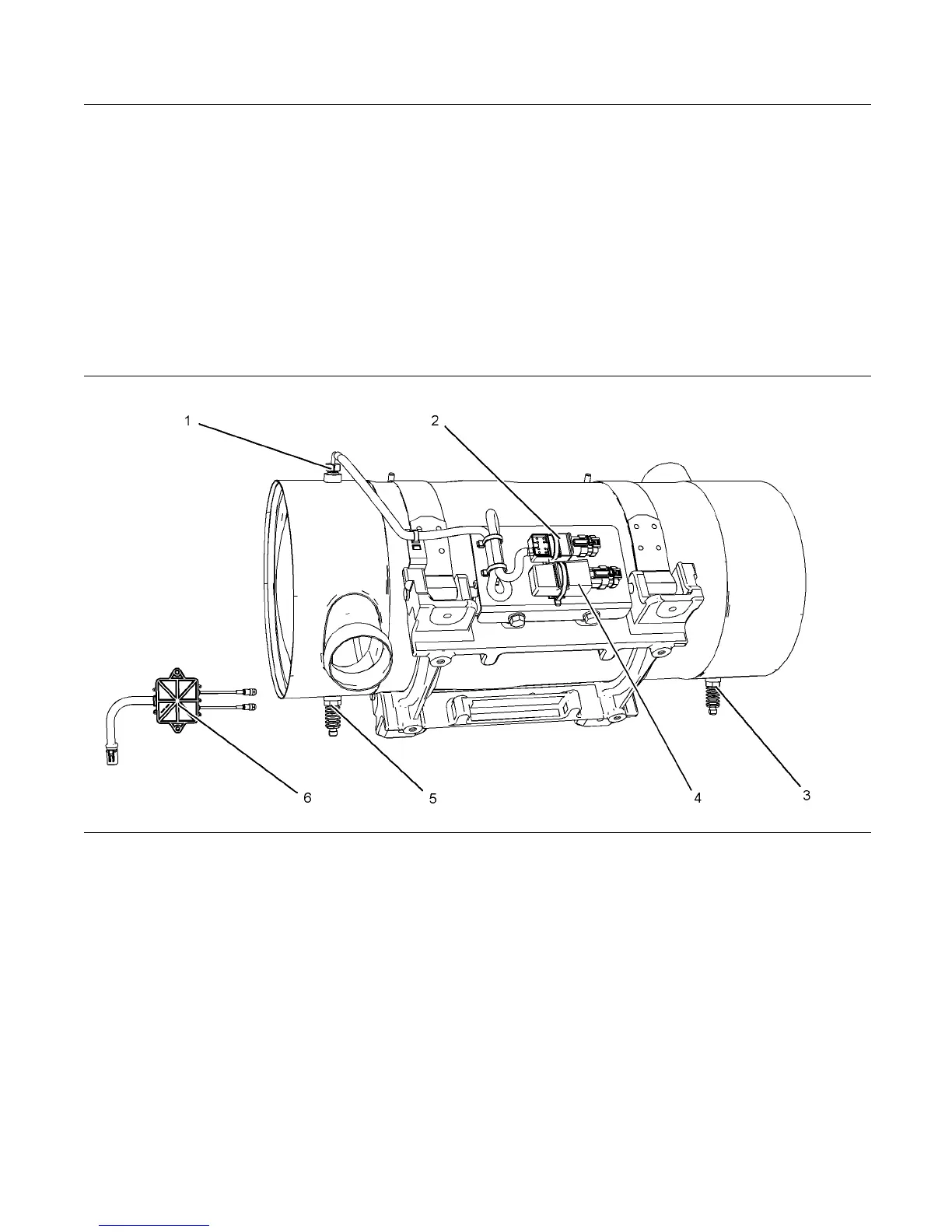

g02395776
Illustration 28
(1) Temperature S ensor
(2) Connector for Tem perature Sensor
(3) S oot S ensor Connection
(4) Aftertreatment Identification Module
(5) S oot S ensor Connection
(6) Soot Sensor
Note: The location of the soot sensor will depend
on the application.
i04220589
Sensors and Elec trical
Components
The Illustration within the section shows the typical
locations of the sensors for a 1206E-66 Industrial
Engine. Specific engines may appear different from
the illustration due to differences in applications.
