38 SEBU8603-01
Operation Section
Features and Controls
g02392837

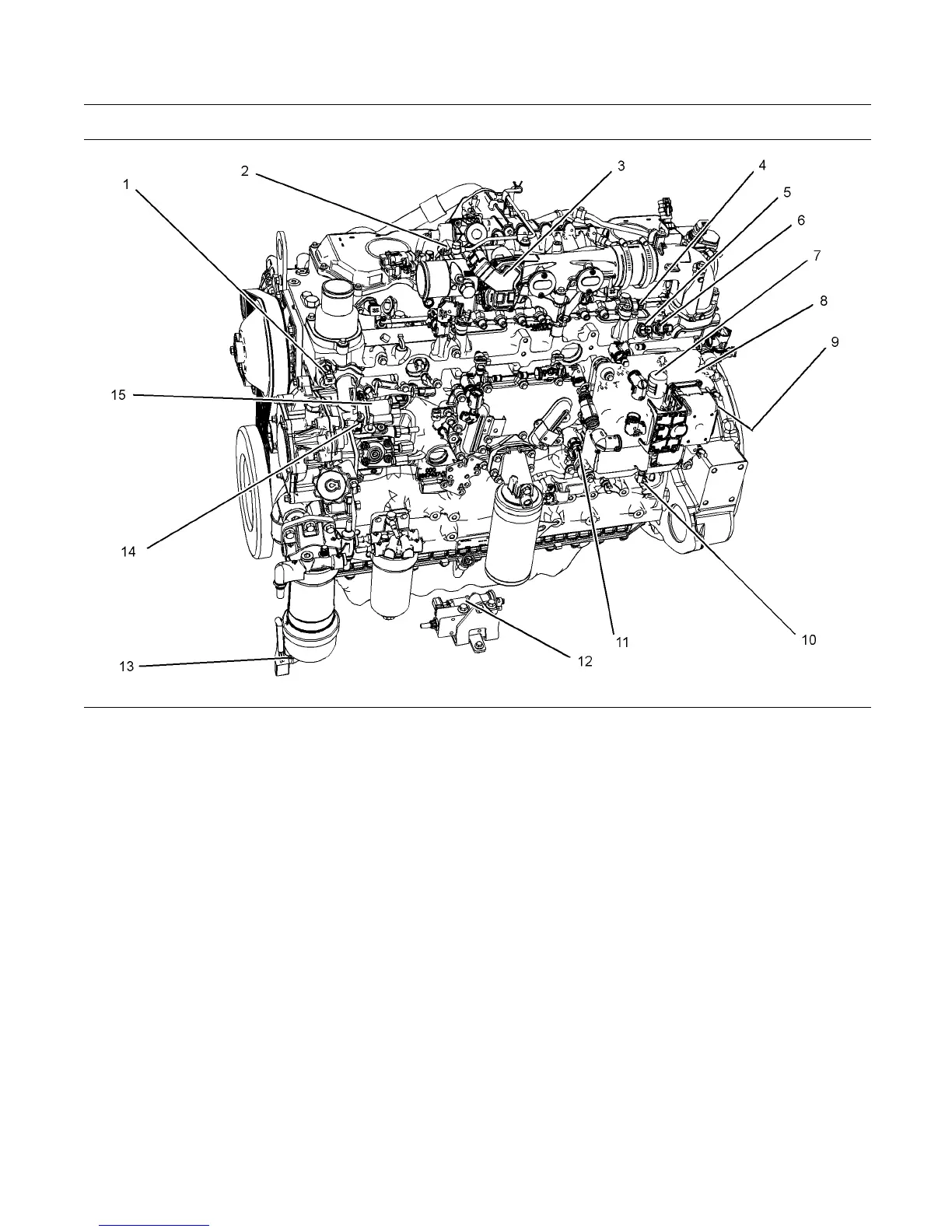

Illustration 29
Typical example
(1) Coolant Temperature S ensor
(2) Wastegate Regu lator
(3) Throttle v alve
(4) Fuel Pressure S ensor (Fuel Ra il
Pressure Sensor)
(5) Intake Manifold Air Temperature Sensor
(6) Intake Manifold Pressure Sensor
(7) Diagnostic Conn ector
(8) Electronic Control Module ( ECM )
(9) Atmospheric Pressure Sensor
(Barometric Pressure Sensor)
(10) Primary Speed/Timing Sensor
(11) O il Pressure S ensor
(12) Fuel Priming Pum p
(13) Water in Fuel Switch
(14) Fuel Temperature Sensor
(15) Solenoid for the High P res sure Fue l
Pump
Note: The location of the secondary fuel filter, the
primary fuel filter, and the fuel priming pump will
depend on the application. These locations will affect
items (12, and 13).
