SEBU8603-01 39
Operation Section
Features and Controls
g02392856

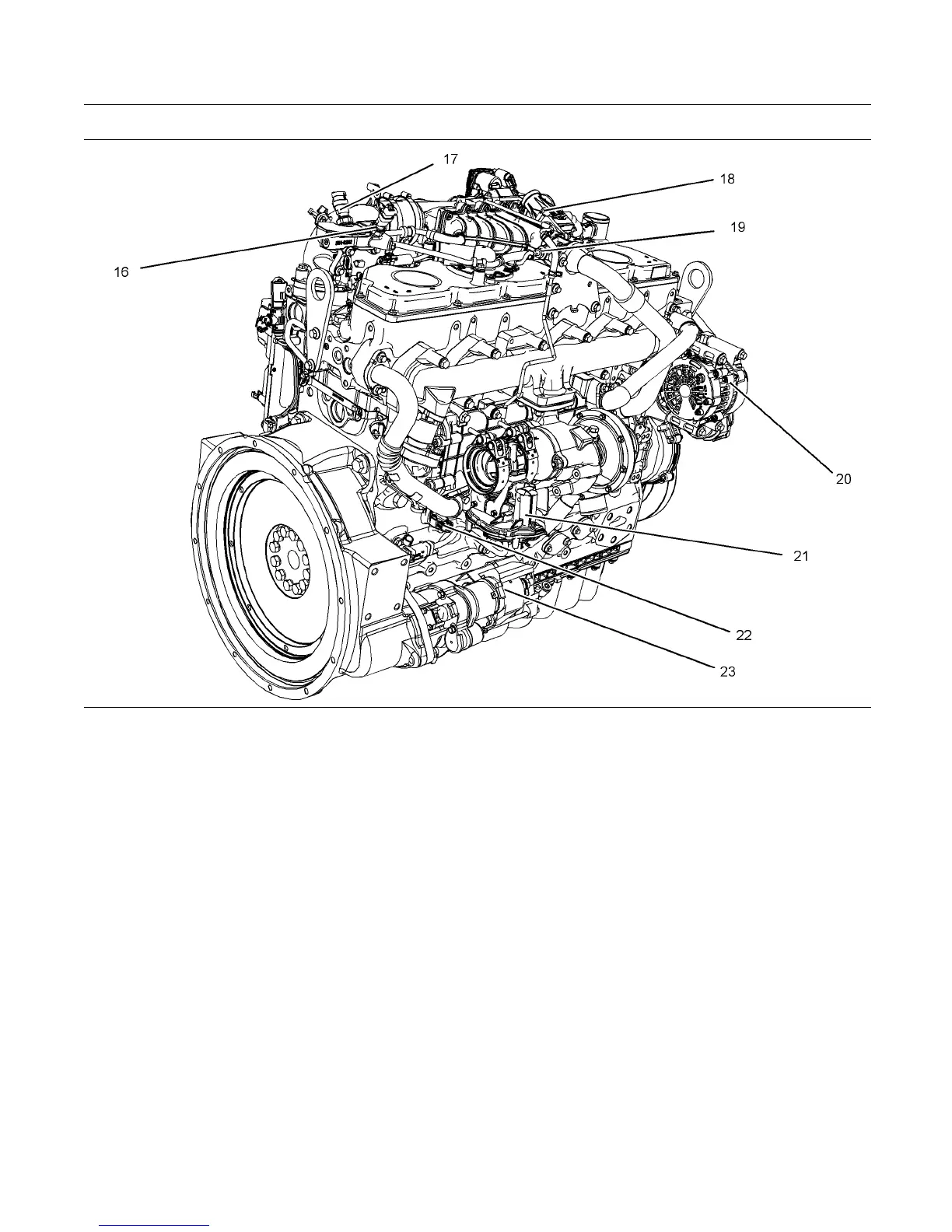

Illustration 30
Typical example
(16) Inlet Pressure S ensor for the NOx
Reduction System (NRS)
(17) Outlet Pressure sensor for the NRS
(18) Control Valve for the NRS
(19) Temperature Sensor for the NRS
(20) Alternator
(21) Bac k Pressure Valve
(22) Secondary Speed/Timing S ensor
(23) S tarter Motor
