40 SEBU8603-01
Operation Section
Features and Controls

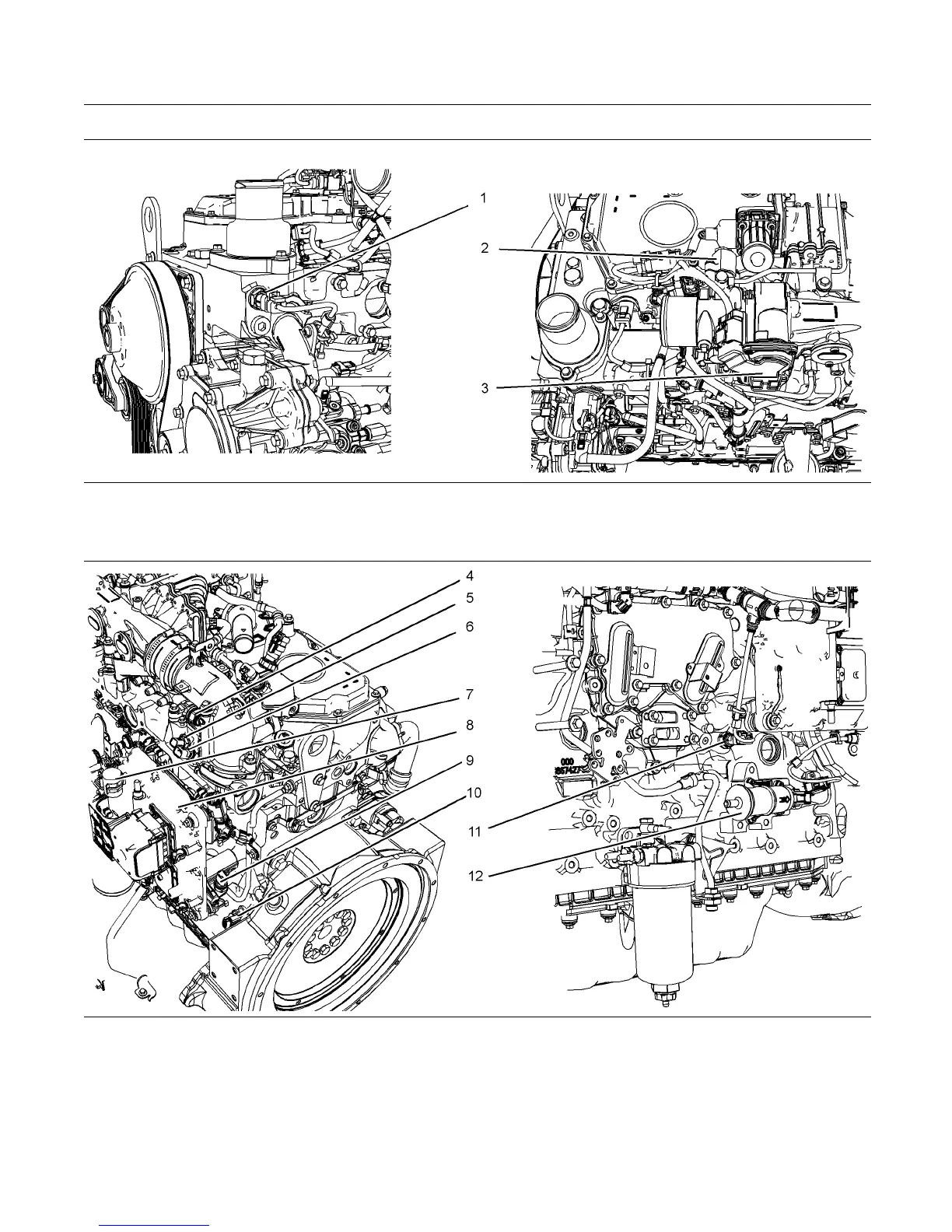

g02394156
Illustration 31
Typical example
(1) Coolant Temperature S ensor (2) Wastegate Regulator (3) Throttle valve
g02394157
Illustration 32
Typical example
(4) Fuel Pressure S ensor (Fuel Ra il
Pressure Sensor)
(5) Intake Manifold Air Temperature Sensor
(6) Intake Manifold P ressure S ensor
(7) Diagnostic Conn ector
(8) Electronic Control Module ( ECM )
(9) Atmospheric Pressure Sensor
(Barometric Pressure Sensor)
(10) Primary Spee d/Timing Sensor
(11) O il Pressure S ensor
(12) Fuel Priming Pum p
