2-10
2. Machine Assistant

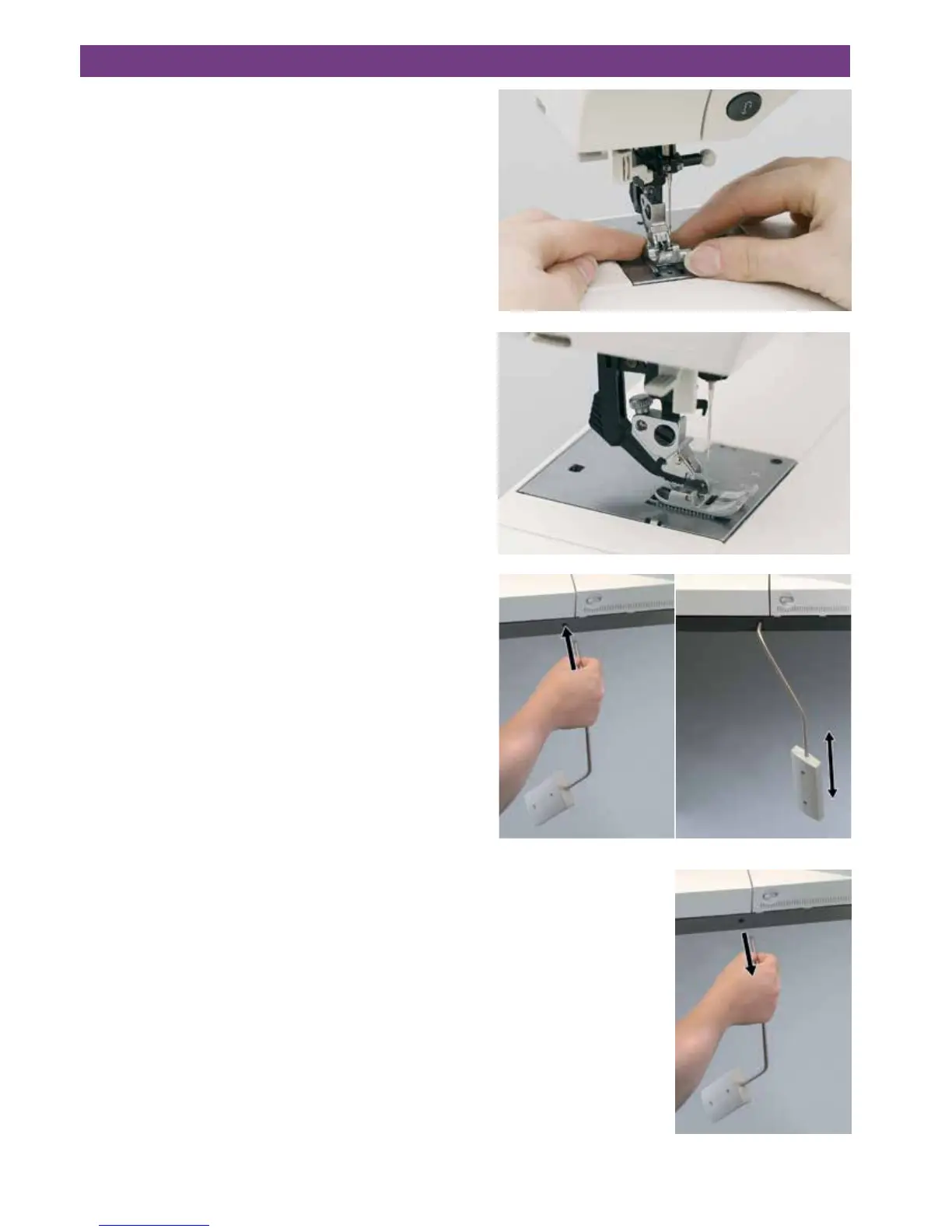

Changing the presser foot
Removing the presser foot:
Set the needle at its highest position. Raise the presser foot
and press the foot upwards at the front and downwards at the
back at the same time until it snaps out of the presser foot
holder (9). When disengaging buttonhole foot 5A, the runner
must be pulled to the back and pressed upwards.
Replacing the presser foot:
Place the presser foot under the presser foot holder (9) so that
the pins of the foot engage in the presser foot holder when the
presser foot lifter (42) is lowered. Check that the presser foot
has engaged properly by raising the presser foot lifter.
Electronic knee lift
Your Pfaff creative 2144 is provided with an electronic knee lift
for regulating the presser foot height.
1. Push the knee lift fully into the provided hole (5) on the
machine.
Note: the flat side must face upwards.
2. Adjust the rectangular bar on the knee lift until it is positio-
ned at a comfortable height for you.
If you press the knee lift to the right, the presser foot will
raise. Now you can guide the fabric with both hands.
3. To remove the knee lift, just pull it out of the hole.
2.
1.
3.
