2. Machine Assistant

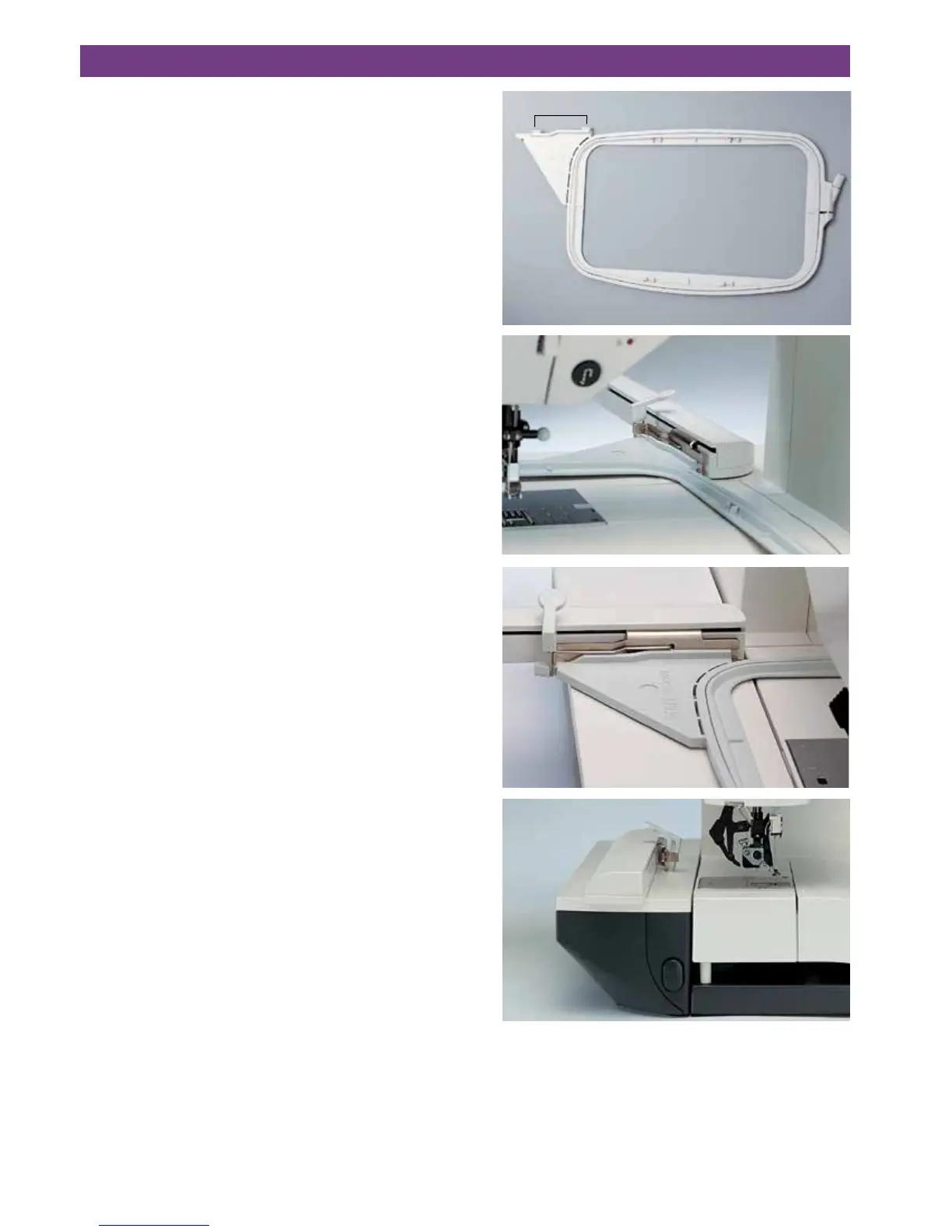

Embroidery hoop
There are two embroidery hoops supplied with your Pfaff
creative 2144. One rectangular hoop with the embroidery
surface (C) 140 x 225 mm and a round hoop for embroide-
ries up to 115 x 120 mm.
A: snap-in pin
B: Guide pins for retaining the hoop.
C: Embroidery surface
D: retaining screw for the fabric
Note: A round embroidery hoop with an embroidery surface
of 80 x 80 mm is available as an optional accessory from
your PFAFF dealer.
Engage the hoop to the embroidery unit
Slide the hoop underneath the presser foot by raising the
presser foot lifter as far as possible. The retaining screw (D)
of the hoop must be facing you and the guide pins (B) must
be pointing to the right.
Slide the hoop with the guide pins (B) into the metal guide
until the snap in pin (A) engages behind the release lever
(H) of the embroidery unit.
Remove the hoop
To remove the hoop, push down the release lever (H) of the
embroidery unit and pull the hoop towards you and away.
Remove the embroidery unit
Raise the embroidery arm in the area of the recessed grip
and turn it to the left, until it locks in the storage position.
Note: Before the embroidery arm is turned, make sure that
the hoop holder doesn’t protrude from the front arm edge.
Press the release button on the left side of the embroidery
unit and remove it.
Warning!
The sewing machine must be switched off before remo-
ving the embroidery unit!
For more detailed information about embroidery please
refer to the following sections:
Chapter 4, section “Embroidery / card”
Chapter 6, “Embroidery Assistant”
