Connecting the embroidery unit
Embroidery unit socket
The socket for the embroidery unit (15) is located at the back of
the machine.
Warning!
The sewing machine must be switched off before connec-
ting the embroidery unit!

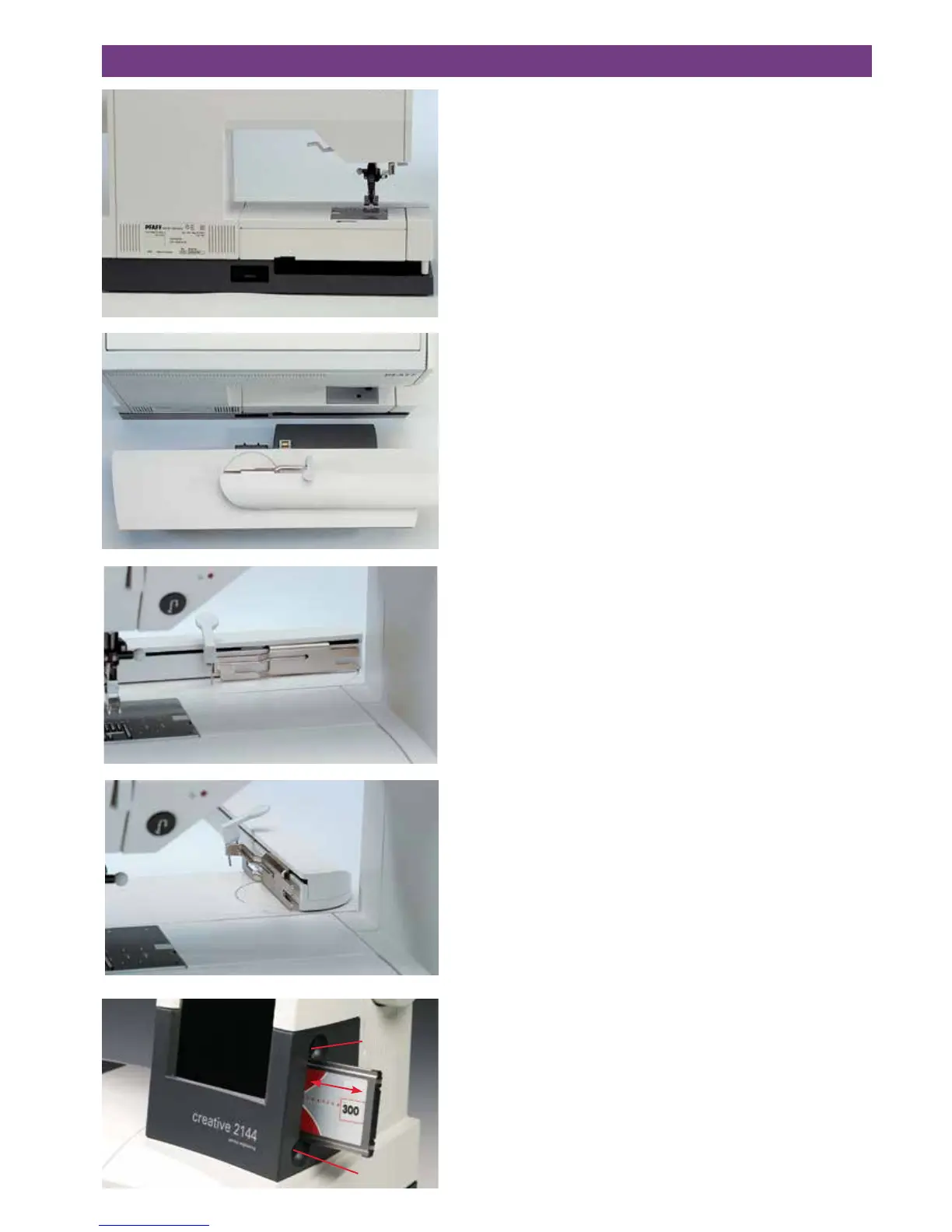

Place the embroidery unit directly behind the machine and pull
it into the socket.
Make sure that the guide (F) is slid between the base plate and
the free arm as far as it will go.
Raise the embroidery arm in the area of the recessed grip and
turn it to the back.
The embroidery arm locks in embroidery position.
Note: You can change bobbin with the unit attached, but make
sure that the accessory tray is not swung too far to the rear. The
angle of the accessory tray should not exceed 90°. Otherwise
the embroidery unit could be pushed out of its socket.
Inserting a card
Insert a creative Card into the front or rear card drive, in the
direction of the arrow, as far as it will go.
The release button springs out approximately 6 mm (1/4’’) when
the card is inserted properly.
To remove the creative Card push the release button (A) next to
the relevant card drive.
