3. Manually place the nut into contact.
4. Tighten the nut 1/2 turn using an open-ended spanner while holding the body of the connec-
tor still.
5.3.2 Connecting the pump to the water circuit
Water-cooling circuit connection

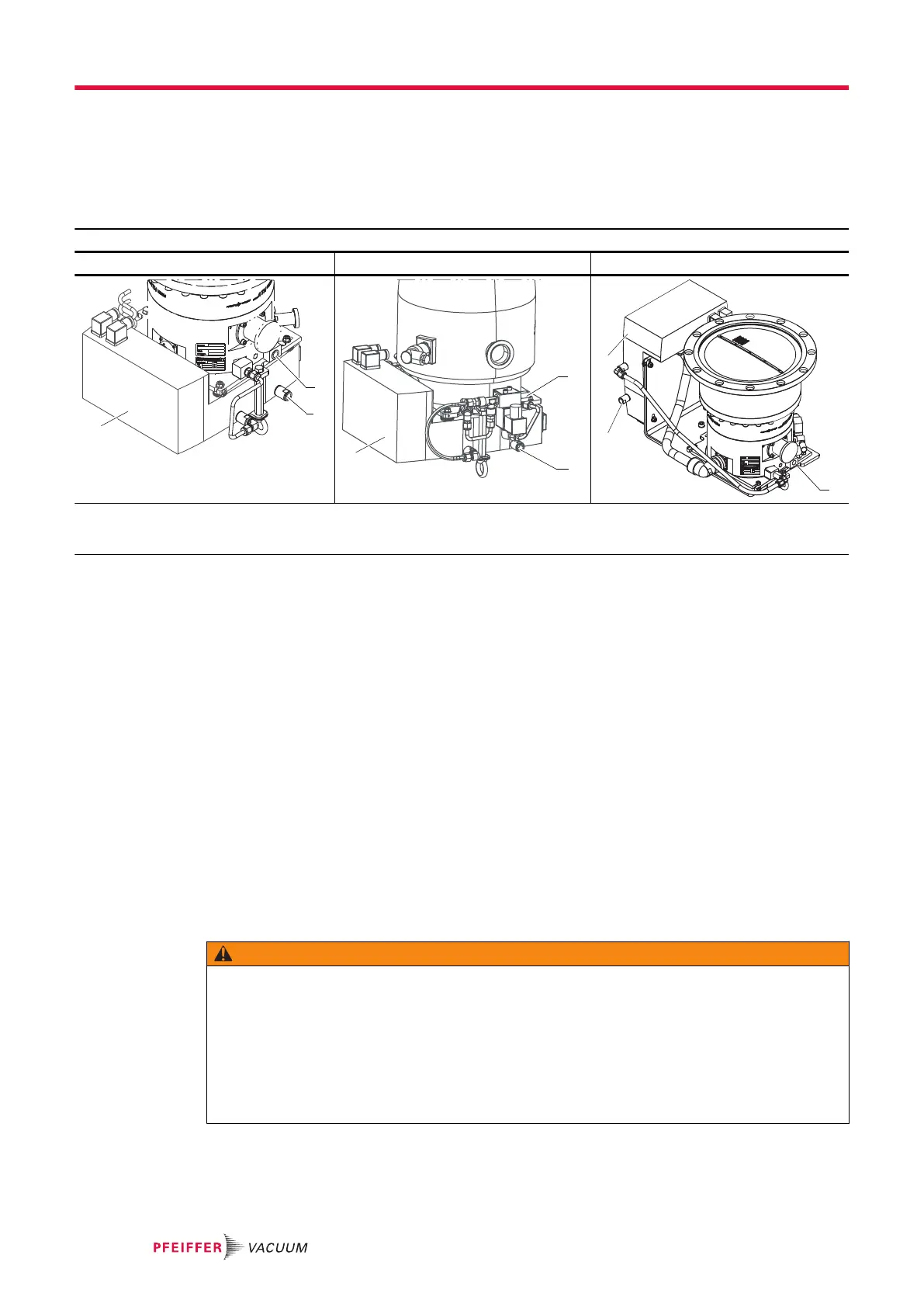

M version of pump with OBC MT version of pump with OBC M version of pump with lateral OBC
1. Water outlet connector
2. Water inlet connector (WATER IN)
3. Electronic drive unit (OBC)
For M version pump
1. Provide a water-cooling circuit equipped with a flow meter.
2. Connect the water inlet circuit to WATER IN.
3. Connect the other connector to the pump water-cooling circuit with a flexible tube (supplied with
the pump).
4. Connect the pump to the drainage circuit with a flexible tube.
5. Check that there are no leaks in the pipes and connections of the water circuit.
For an MT version pump
This pump is equipped with a water solenoid valve supplied and controlled by the electronic drive unit.
1. Provide a water-cooling circuit equipped with a flow meter.
2. Connect the water inlet circuit to WATER IN.
3. Connect the other connector to the water solenoid valve and then the solenoid valve to the pump
using a rigid pipe (supplied with the pump).
4. Connect the pump to the drainage circuit with a flexible tube.
5. Note the direction of water flow so as not to disrupt the operation of the solenoid valve.
6. Check that there are no leaks in the pipes and connections of the water circuit.
5.4 Electrical connection
WARNING
Risk of electric shock due to non-compliant electrical installations
This product uses mains voltage for its power supply. Non-compliant electrical installations or installa-
tions not done to professional standards may endanger the user’s life.
►
Only qualified technicians trained in the relevant electrical safety and EMC regulations are au-
thorized to work on the electrical installation.
►
This product must not be modified or converted arbitrarily.
►
Check that the product is properly connected to the equipment’s or pumping installation’s emer-
gency stop circuit.
Installation
20/60
