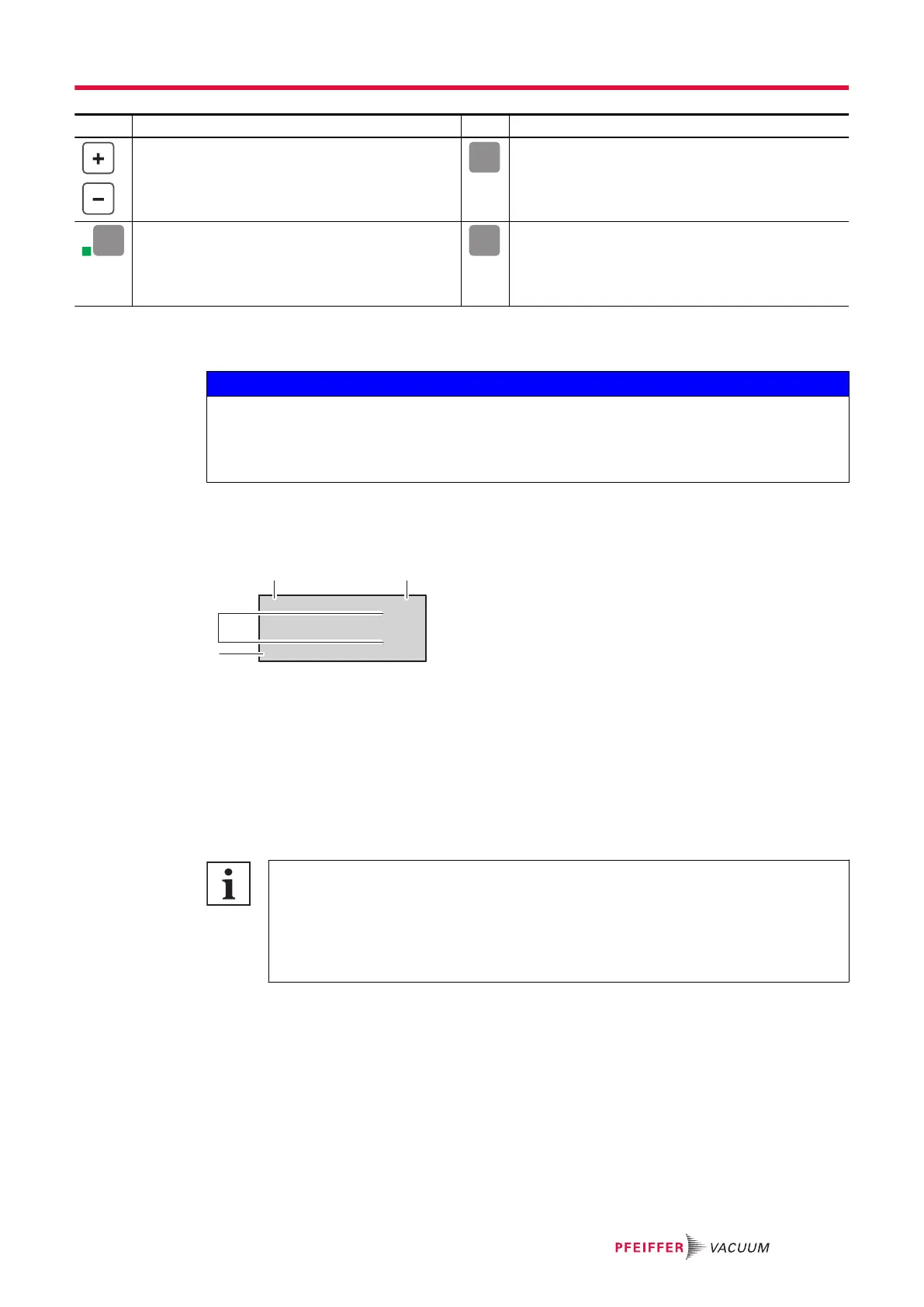

Key Functions Key Functions
● To move to the next or previous menu, next or
previous parameter in the displayed menu.
● To select or adjust the parameter value.
● To start the pump in local mode via HHR when
the [SET UP][REMOTE CONTROL] menu is
[KEYBOARD] (see chapter 'Menu SETUP').
● To allow purge operation via HHR when the
[SET UP][REMOTE CONTROL] menu is set
to [KEYBOARD] (see chapter 'Menu SE-
TUP').
LED is lit when the purge is activated.
● To stop the pump in local mode via HHR when
the [SET UP][REMOTE CONTROL] menu is
[KEYBOARD] (see chapter 'Menu SETUP').
Tbl. 2: Description of the HHR's keys
NOTICE
Risk of damage to the keypad
The keys are protected by a membrane. Using hard, pointed objects like pens and screwdrivers can
damage the keys.
►
Always use your hands to operate the keypad.
Description of the display
The display shows the status of the pump and the monitored parameters. Use the +/- keys to scroll
through the monitored parameters.
KEYB xxxx H
Pump 24°C 0.00 A
Ctrl 27°C
0 rpm
........ Ready to start ..........
1 2
3
4
1 Control mode 3 Operating parameters/fault messages
2 Running time 4 Pump operating status messages
8.2.1 Powering on
►
Check that the electrical connections have been made before using the HHR.
►
Connect the hand held remote to the SERVICE connector.
►
Set the main switch to I: the HHR unit boots up.
The HHR unit can be connected when the pump is switched on and/or when the rotor is rotating.
The factory settings
When the pump is run for the first time, it uses the default settings set at the factory to re-
flect the settings in the ordering guide. The factory settings are protected by an access
code (initially 0) that can be changed.
●
The user or the integrator is responsible for changing the pump parameters according
to the requirements of the application.
HHR mode is active when the ‘Keyboard’ control mode is configured by the HHR or the RS-232/RS-485
serial link.
Interfaces for control
31/60
