PFT G4 - Page 48

Mixing Pump PFT G4
Operation
48 2007-09-05

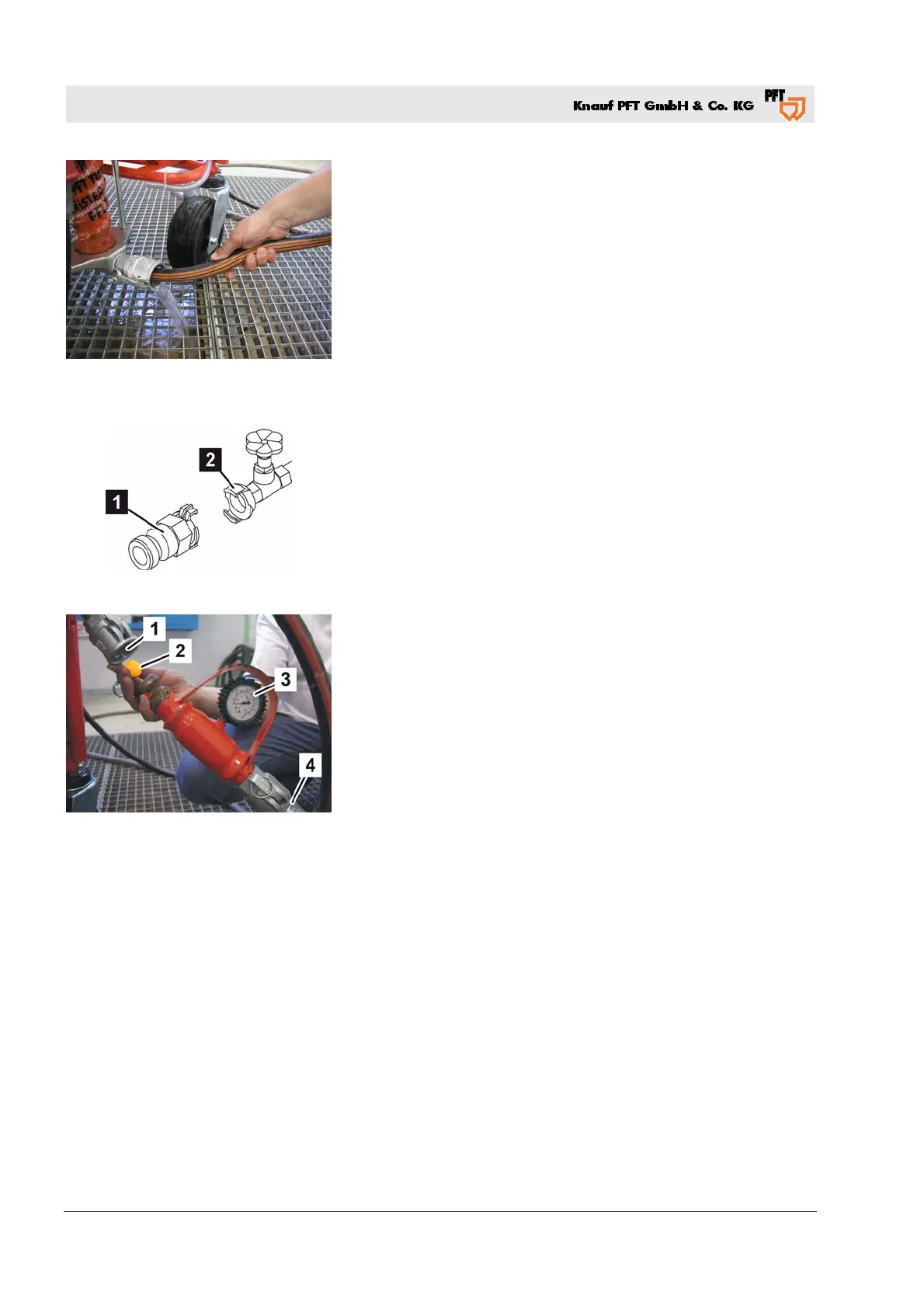

Fig. 47: Rinsing out deposits
21. Insert the rinsing hose into the pressure flange and rinse out
remaining deposits (
Fig. 47).
Cleaning the mortar hose
Fig. 48: Plaster component
22. Connect the plaster component (Fig. 48/1) to the mortar
pressure connection (Fig. 48/2).
Fig. 49: Connecting the mortar hose
23. Introduce the water-soaked sponge ball (Fig. 49/2) into the
mortar manometer (Fig. 49/3).
24. Connect the mortar hose (Fig. 49/4) with the mortar pressure
manometer (Fig. 49/3) to the plaster component (Fig. 49/1).
