Philips Avalon FM20 - Removing the Recorder Chassis

10 Repair and Disassembly
162
c.
d.

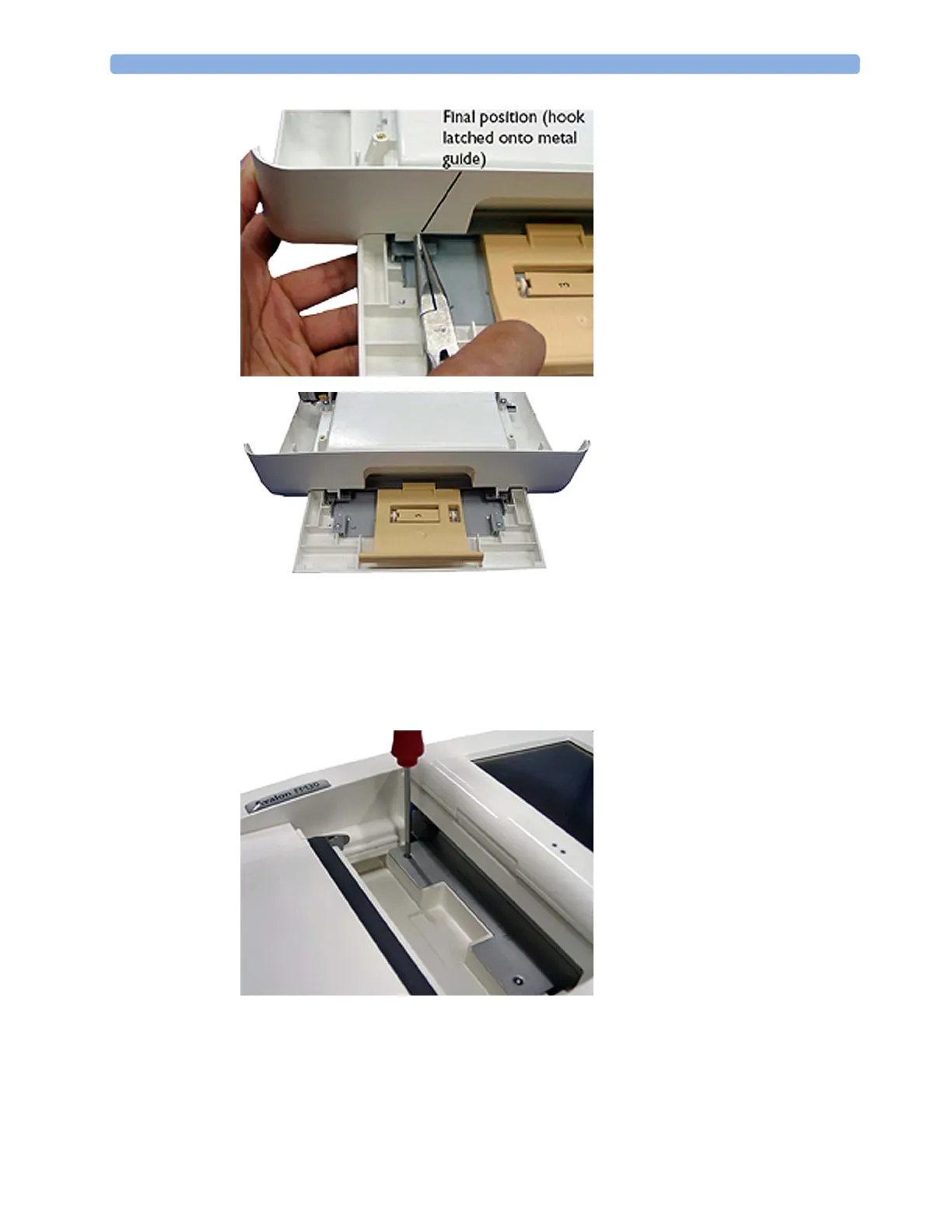

Removing the Recorder Chassis
1 Remove the top cover assembly (see “Removing the Top Cover Assembly” on page 141).
2 Slide open the paper drawer, to gain access to the two countersunk screws (in the following
photographs, we have removed the drawer assembly).
3 Remove the two countersunk screws.
