7 Testing and Maintenance
64

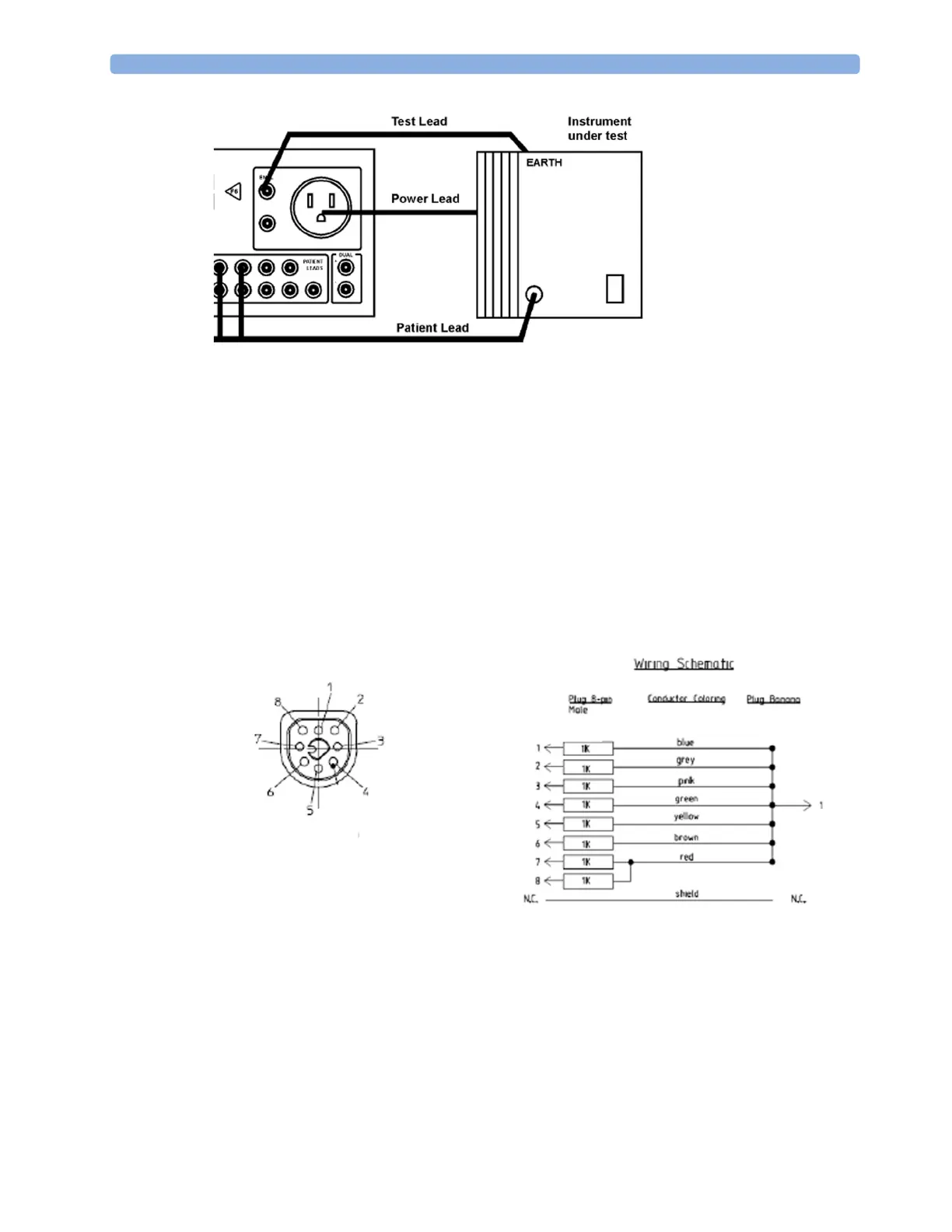

Applied Part Current Test - Setup Example
NOTE
The above graphics resemble the Metron QA-90 setup and are protected by copyright. Copyright
owned by Fluke (Metron).
Safety Test Adapter Cable - Schematics
The following graphics provide schematics of safety test (patient lead) adapter cables which can be
used for electrical safety testing. These schematics can also be used as a guideline for making your own
safety test adapter cables. Alternatively, other methods to make safety test adapt er cables can be used,
e.g. using a modified accessory cable.
FM20-FM50 Safety Test Adapter Cable Schematic
SpO
2
Safety Test Adapter Cable Schematic
To Next Page
