Attach the IUP adapter cable (989803143931) to the socket on the patient module or Toco
+
transducer.
5 Cut the sensor tip off an IUP catheter (M1333A).
6 Connect the catheter to the IUP adapter cable.
7 Connect the silicone tubing to the test volume chamber and the manometer as shown in the
picture.
8 Connect the cut end of the catheter to the silicone tubing.
9 Apply a pressure of 80 mmHg ± 5 mmHg with the manometer. Check that the value on the
display and on trace corresponds to this pressure. Slowly release the pressure, and check that the
value on the display and on trace shows this change in pressure.

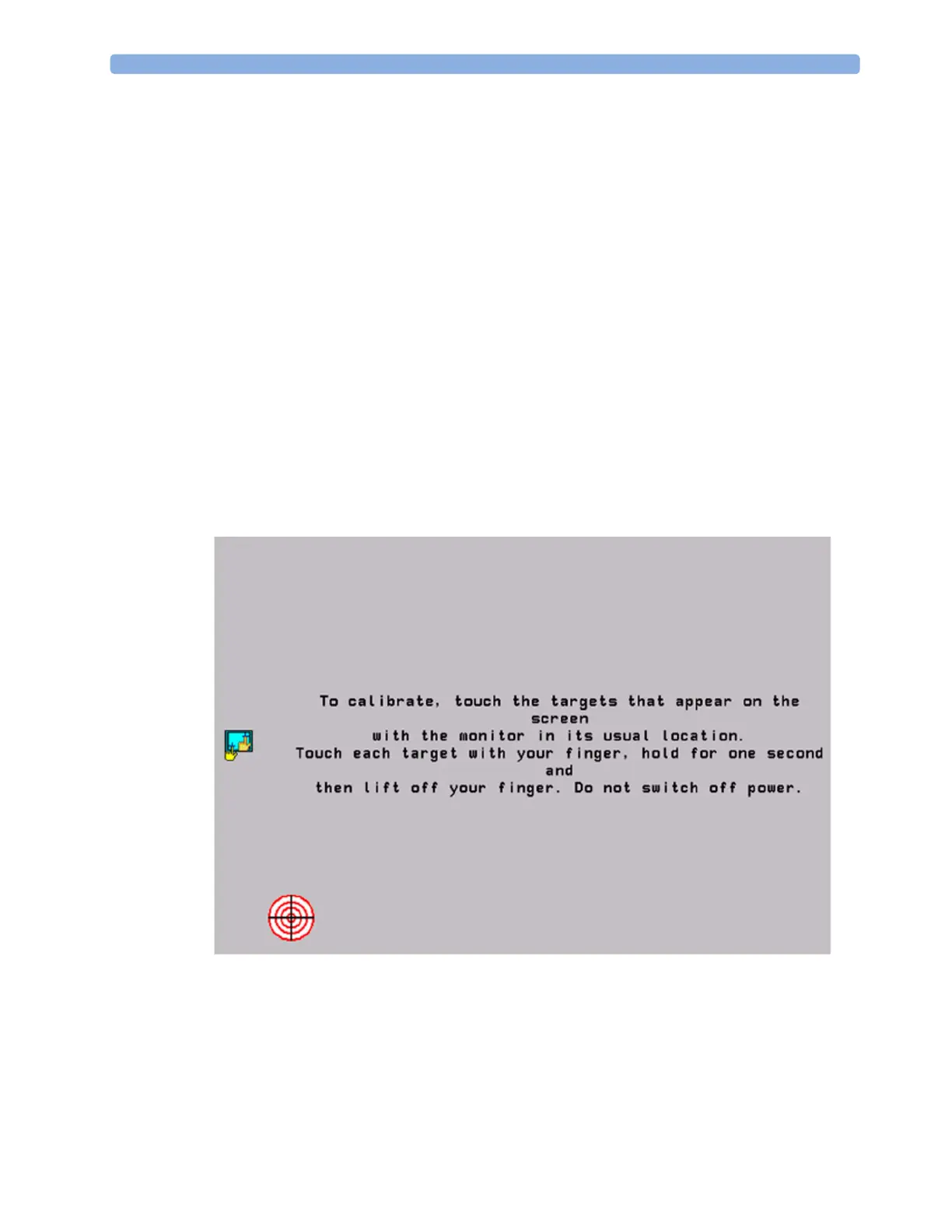

Touchscreen Calibration
To access the touchscreen calibration screen:
1 Enter Service Mode
2 Select Main Setup
3 Select Hardware
4 Select Calibrate Touch
Make sure you complete the calibration procedure without powering off the monitor mid-way. If the
monitor is powered off after the first point is touched, the touch panel will be deactivated until the
touch calibration is performed again.
If the touchscreen is accidentally mis-calibrated by selecting the wrong spot, you must use another
input device to re-enter calibration mode, for instance, a mouse connected to the PS/2 interface. If
you have the support tool, you can select
Start Calibrate Touch and it will create a rough calibration
which will allow you to access the calibration menu again via the touchscreen.
