10 Repair and Disassembly

190

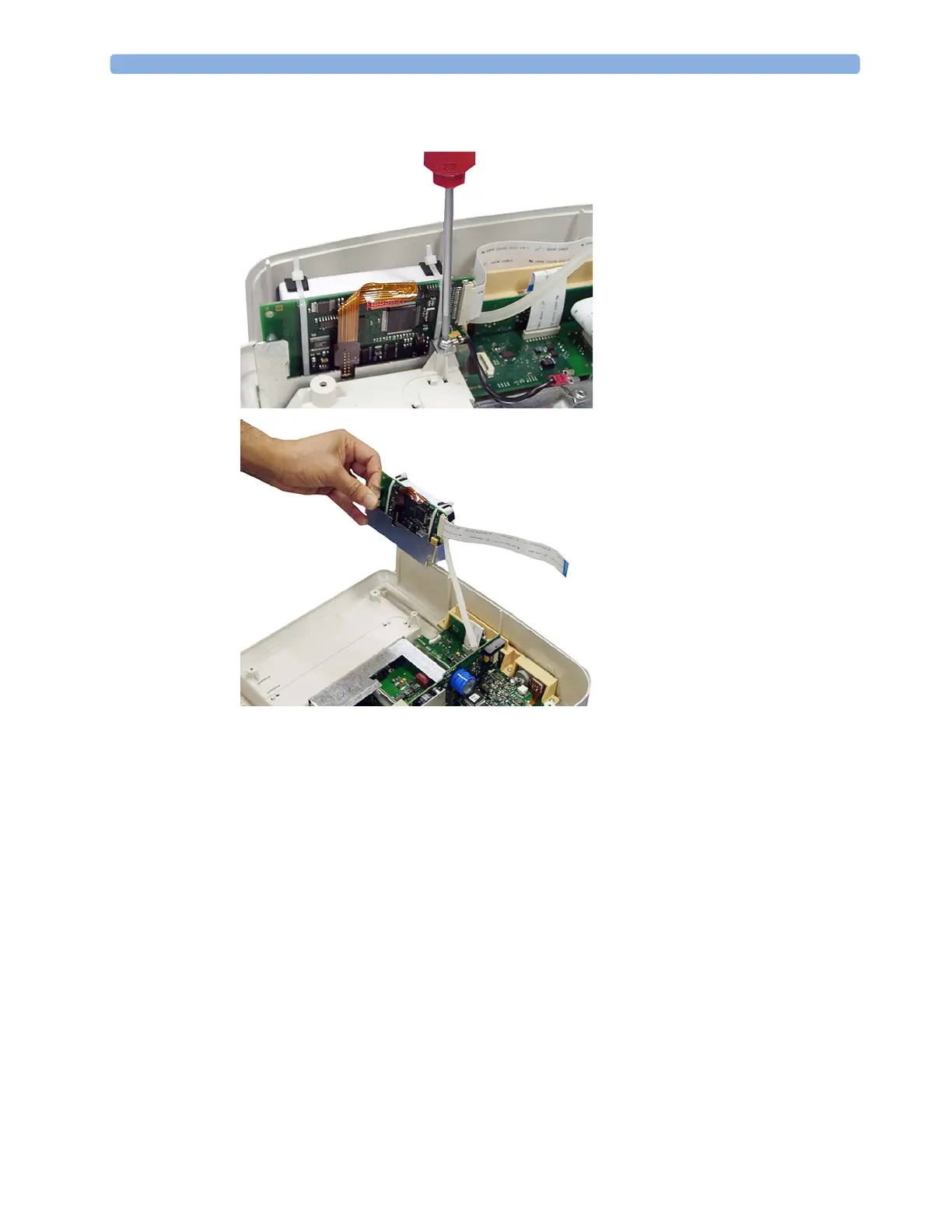

Remove the two screws holding the noninvasive blood pressure assembly to the bottom housing,

then remove the noninvasive blood pressure assembly.
