7 Testing and Maintenance

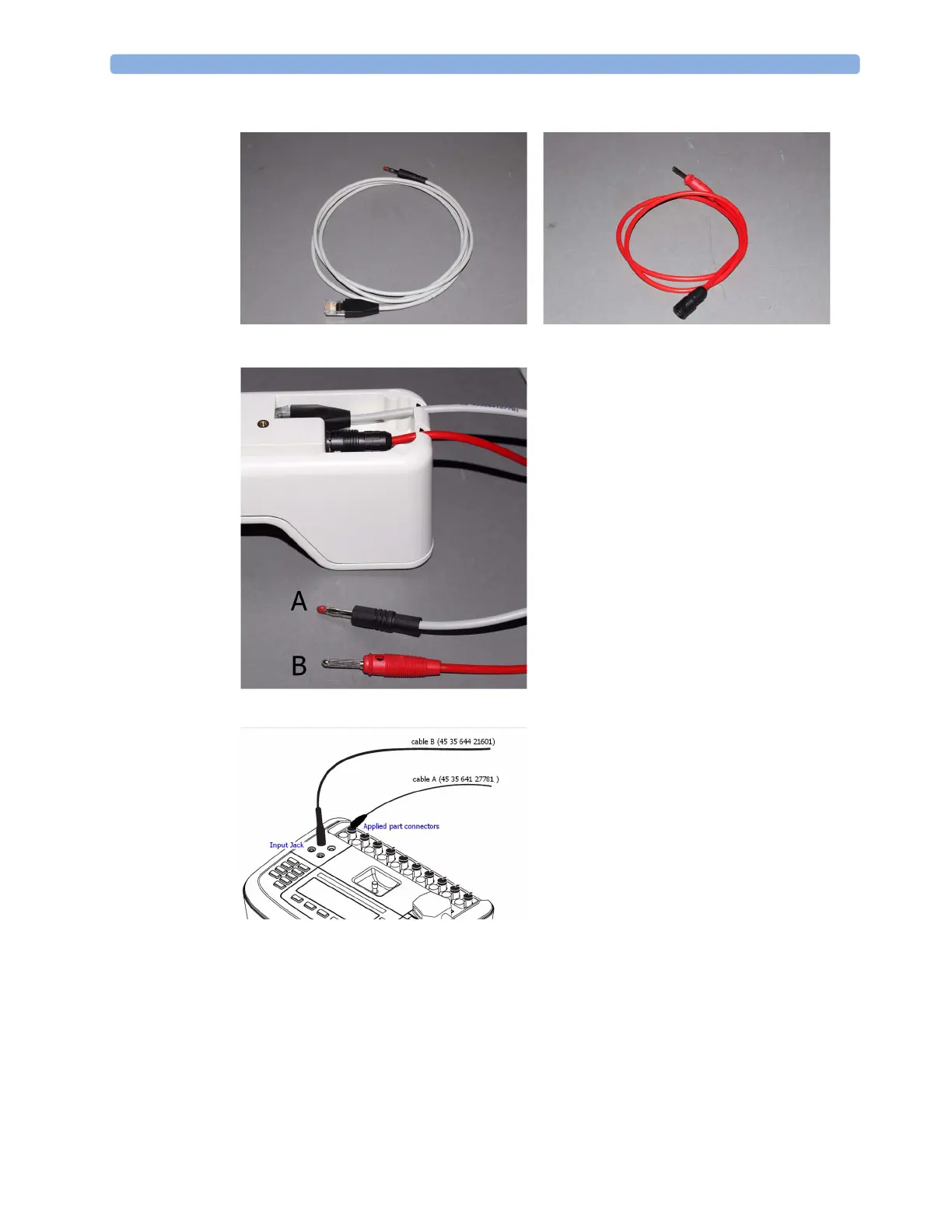

Insert the two safety test cables as shown below.

Cable A (IntelliBridge - 453564127781) and Cable B (Tympanic Temperature - 453564421601)

1 Connect to an appropriate safety tester (e.g. Fluke ESA 620) as shown below.

2 Perform the test:
