English
15

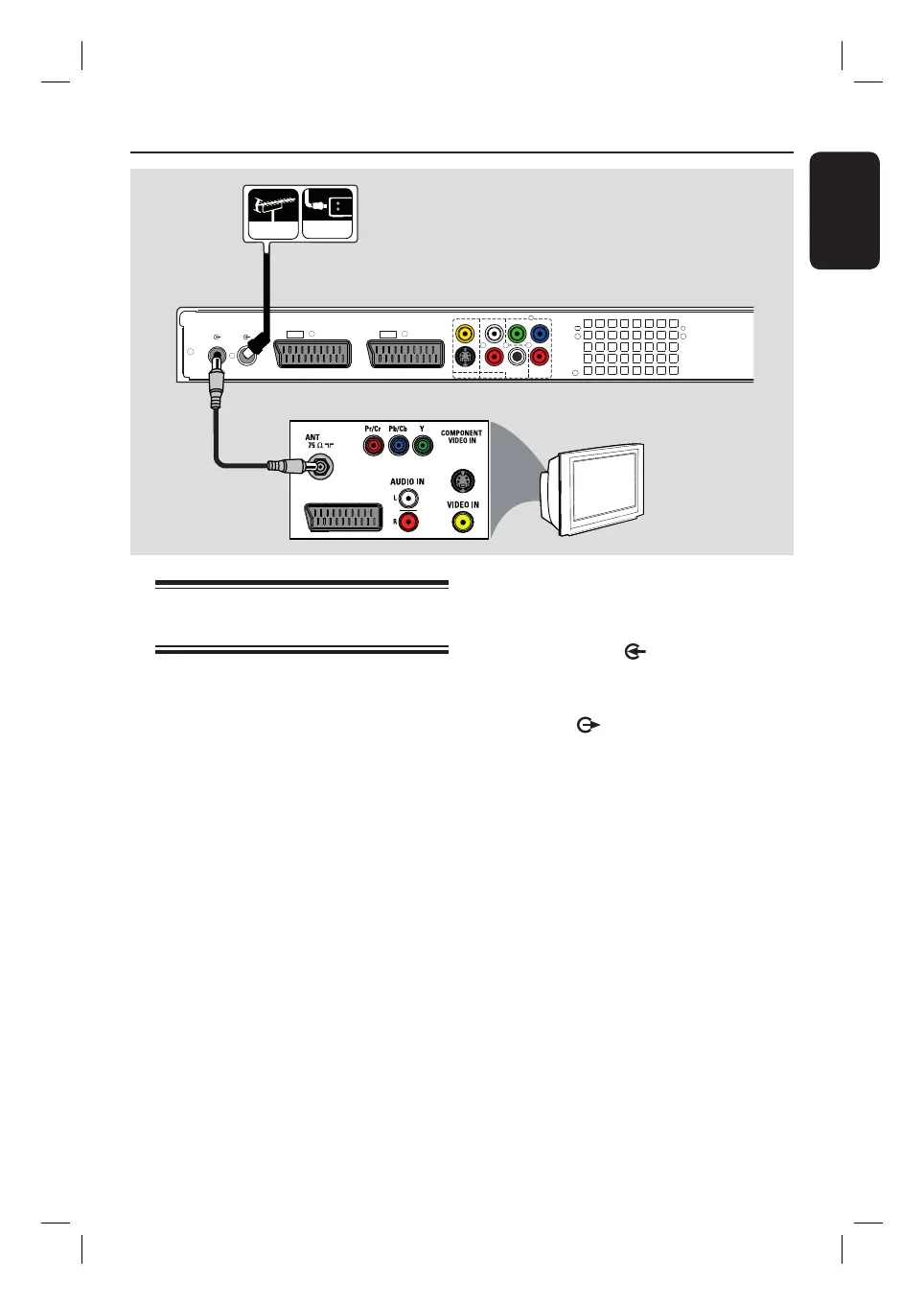

Step 1: Basic Recorder Connections
Connecting the antenna
cables
These connections enable you to watch
and record TV programmes using the
recorder. If the antenna signal is
connected to the Cable Box or Satellite
Receiver, ensure that these devices are
turned on to watch or record the cable
programmes.
If you want to connect to a VCR
and/or a Cable Box/Satellite
Receiver, see the chapter “Step 2 :
Optional Connections” for details.
Helpful Hint:
– Depending on the current connections to
your TV (directly from an off-air antenna or
Cable box or VCR), you may have to
disconnect some of the cables before you can
make the above connection.
A
Connect the existing Antenna/Cable TV
signal [or from the Cable Box/Satellite
Receiver (RF OUT or TO TV)] to the
ANTENNA-IN
socket on the
recorder.
B
Connect an RF antenna cable from the
TV-OUT socket on the recorder to
the antenna input socket on your TV
(VHF/UHF RF IN).
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
VIDEO OUT AUDIO OUT
AUDIO
ANTENNA-IN
TV-OUT
TO TV
EXT1
TO VCR/SAT
EXT2
COMPONENT
VIDEO OUT
P
B
P
R
Y
R
L
S-VIDEO IN
TV
SCART IN
A
B
Antenna Cable
HDR3500_05_eng_30381.indd 15HDR3500_05_eng_30381.indd 15 2008-02-27 10:51:36 AM2008-02-27 10:51:36 AM
