English
19
Step 2: Optional Connections
Connecting to a Cable Box or
Satellite Receiver
Option 1
If your Cable Box/Satellite Receiver
has only an antenna output socket
(RF OUT or TO TV),
see the chapter “Step 1: Basic Recorder
Connections – Connecting the antenna
cables” for details.

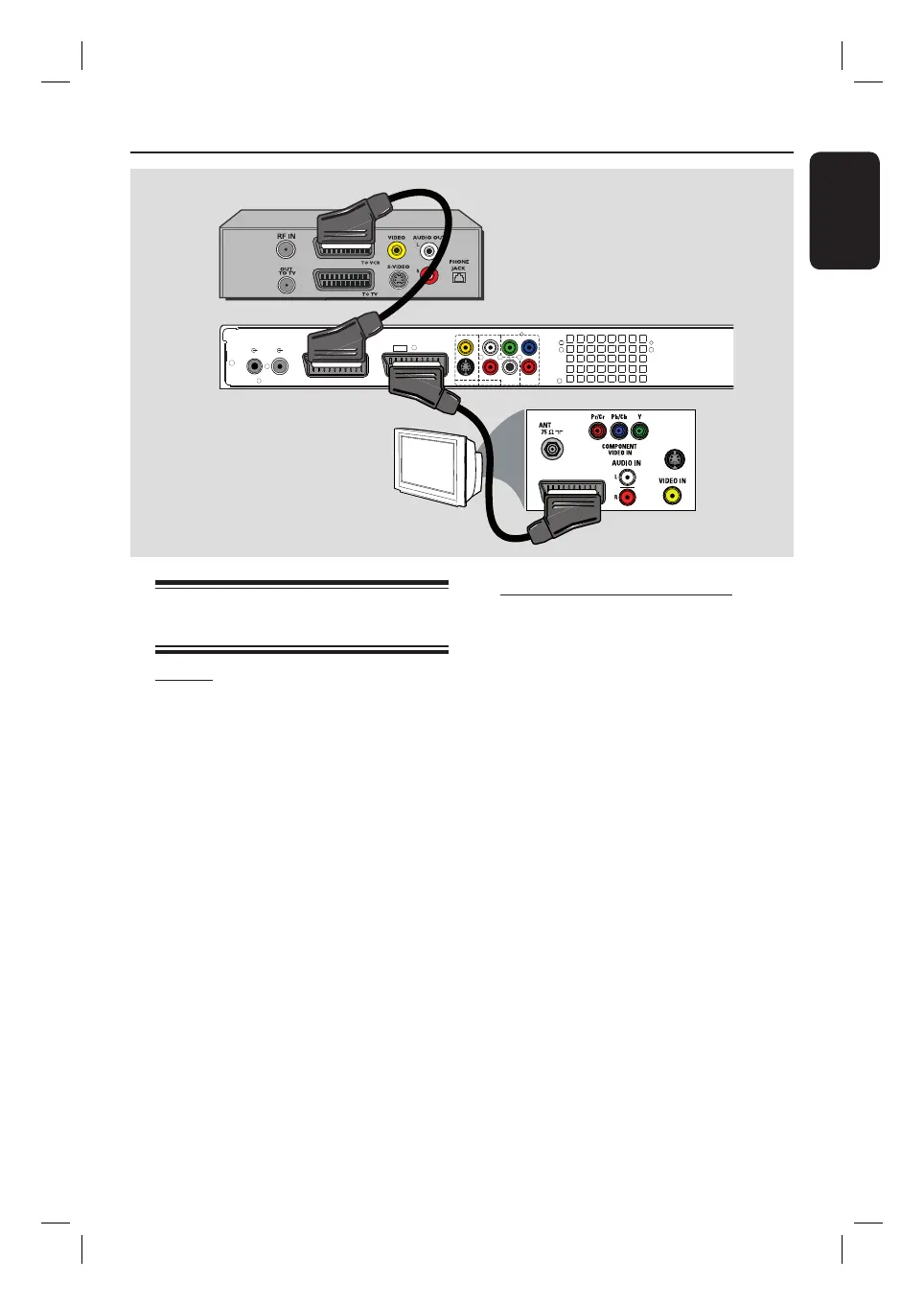

Option 2 (see the above illustration)
If your Cable Box/Satellite Receiver
has a scart output socket,
A
Keep the existing antenna connection
from the Cable Box/Satellite Receiver to
your TV.
B
Connect a scart cable (not supplied) from
the EXT1 TO TV socket on the
recorder to the corresponding scart
input socket on the TV.
C
Connect another scart cable (not
supplied) from the EXT2 TO VCR/
SAT socket on the recorder to the scart
output socket (usually labelled as TV
OUT or TO TV) on the Cable Box/
Satellite Receiver.
Helpful Hint:
– If your TV is connected to the recorder via
the COMPONENT VIDEO (Y Pb Pr) sockets,
connect the external cable box/ satellite
receiver to the EXT2 TO VCR/SAT socket.
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
VIDEO OUT AUDIO OUT
AUDIO
ANTENNA-IN
TV-OUT
TO TV
EXT1
TO VCR/SAT
EXT2
COMPONENT
VIDEO OUT
P
B
P
R
Y
R
L
TV
SCART IN
C
B
Back of a Cable Box
or Satellite Receiver
(Example only)
HDR3500_05_eng_30381.indd 19HDR3500_05_eng_30381.indd 19 2008-02-27 10:51:37 AM2008-02-27 10:51:37 AM

Table of Contents

Other manuals for Philips HDR3500

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Philips HDR3500 and is the answer not in the manual?

Philips HDR3500 Specifications

Picture and Display IconPicture and Display
D/A converter10 bit, 54MHz
A/D converter10 bit, 54 MHz
Picture enhancementProgressive scan
Sound IconSound
D/A converter24 bit, 96 kHz
A/D converter24 bit, 96 kHz
Video Recording IconVideo Recording
Recording MediaDVD+R/+RW, DVD-R/-RW, DVD+R DL, HDD
Recording systemPAL
Compression formatsMPEG2
Storage Media IconStorage Media
Hard Disk Capacity160 GB
HDD recording enhancementsTime Shift Buffer, Instant Replay, Pause Live TV
HDD video recording capacity180 hr
Connectivity IconConnectivity
Front / Side connectionsAudio L/R in, CVBS in, i.LINK DV in (IEEE1394, 4-pin), USB 1.1
Rear ConnectionsSCART1 (CVBS, RGB out), RF antenna in / TV out, Analog audio Left/Right out, Composite video (CVBS) output, S-Video out, Component Video output, Digital coaxial out, SCART2 (CVBS in)
Power IconPower
Power supply220-240V, 50Hz
Power consumption30 W
Standby power consumption2.4 W
Weight and Dimensions IconWeight and Dimensions
Packaging dimensions561x120x413mm
Product dimensions435x325x43mm
Product weight3.5 kg
Weight incl. Packaging5.2 kg
