English
16
Step 1: Basic Recorder Connections (continued)

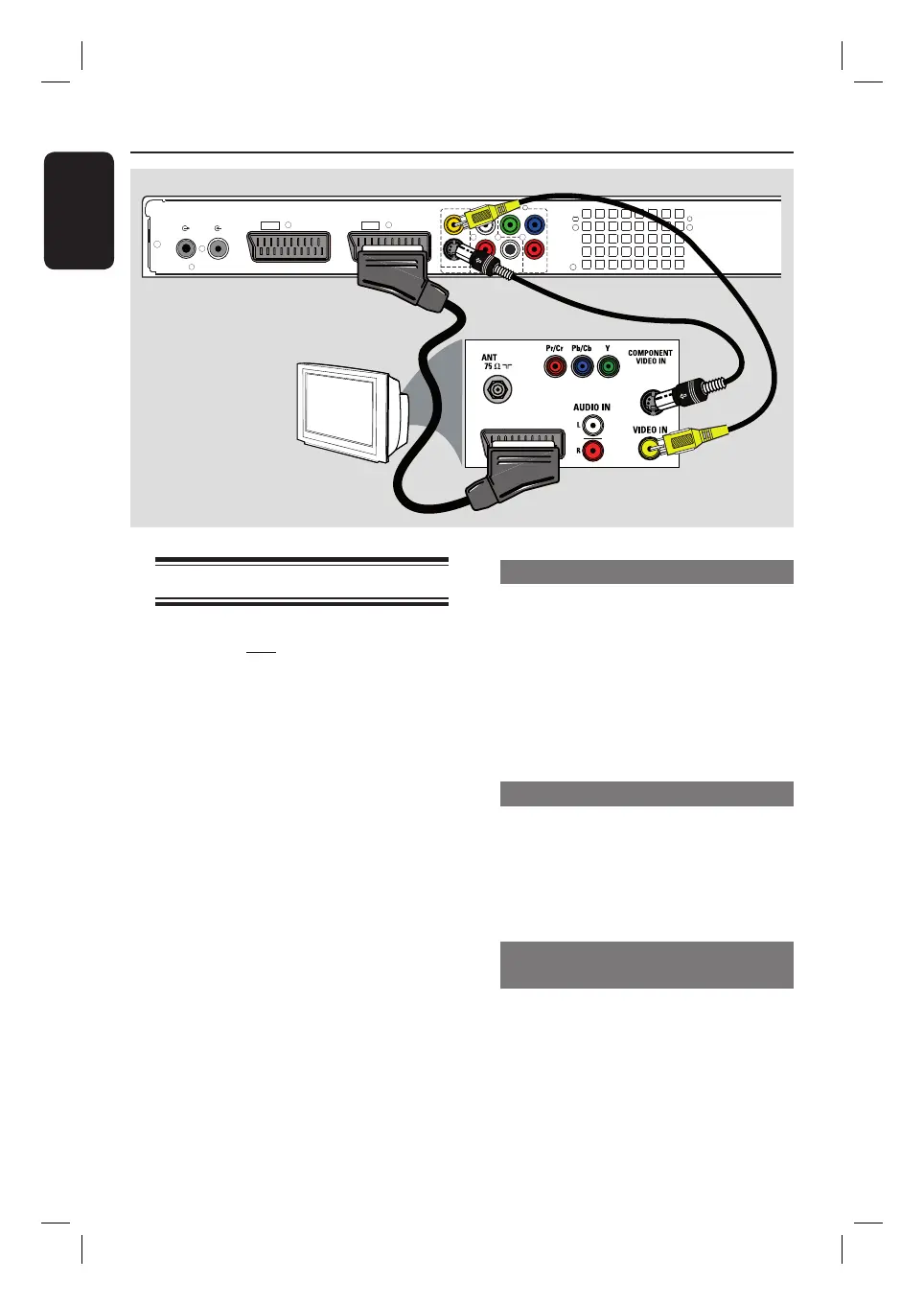

Connecting the video cable
You can view playback from the recorder.
Choose only one of the options below to
make your video connection.
– For a standard TV, see option 1, 2 or 3.
– For a progressive scan TV, see option
4.
Helpful Hint:
– Audio connection is required if you are
using the Y Pb Pr, S-VIDEO or CVBS socket
to connect your TV. See ‘Connecting the
audio cables’.
Option 1: Using a SCART socket
Connect a scart cable (not supplied) from
the EXT1 TO TV socket on the
recorder to the corresponding scart
input socket on the TV.
Helpful Hint:
– Connect any additional devices to EXT2
TO VCR/SAT socket on the recorder.
Option 2: Using an S-Video socket
Connect an S-video cable (not supplied)
from the S-VIDEO OUT socket on the
recorder to the S-Video input socket
(usually labelled as Y/C or S-VHS) on the
TV.
Option 3: Using a Video (CVBS)
socket
Connect a composite video cable (yellow
- not supplied) from the CVBS OUT
socket on the recorder to the video
input socket (usually labelled as A/V In,
Video In, Composite or Baseband) on the
TV.
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
VIDEO OUT AUDIO OUT
AUDIO
ANTENNA-IN
TV-OUT
TO TV
EXT1
TO VCR/SAT
EXT2
COMPONENT
VIDEO OUT
P
B
P
R
Y
R
L
S-VIDEO IN
TV
SCART IN
Option 1
Option 2
Option 3
HDR3500_05_eng_30381.indd 16HDR3500_05_eng_30381.indd 16 2008-02-27 10:51:36 AM2008-02-27 10:51:36 AM
