English
17
Step 1: Basic Recorder Connections (continued)
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
VIDEO OUT AUDIO OUT
AUDIO
TO TV
EXT1
COMPONENT
VIDEO OUT
P
B
P
R
Y
R
L
S-VIDEO IN
TV
SCART IN
A
B

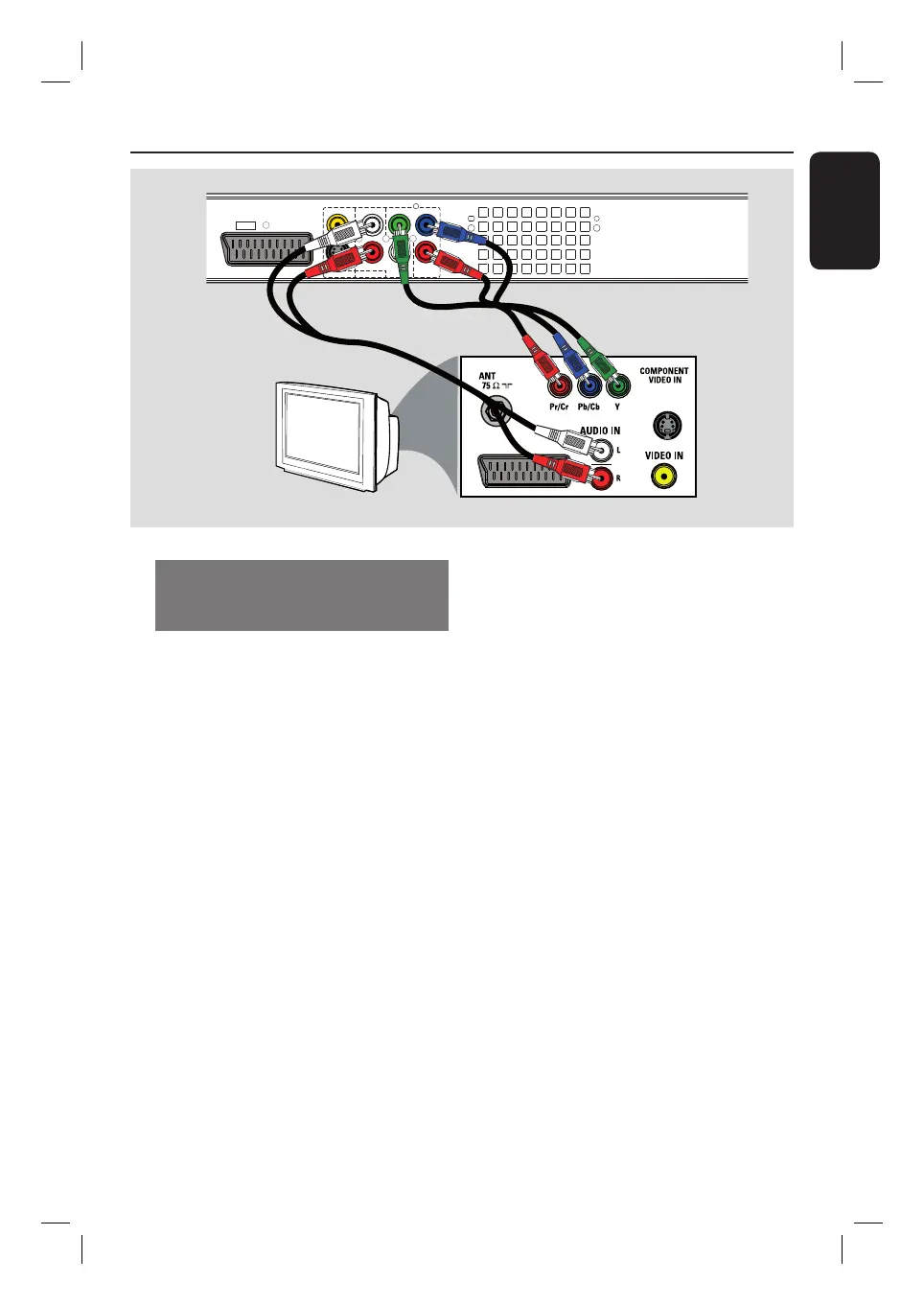

Option 4: Using the Component
video socket/ Connecting to a
Progressive Scan TV
The progressive scan video quality is only
available when using a Y Pb Pr connection
and a progressive scan TV. It provides
superior picture quality when watching
DVD movies.
A
Connect the component video cables
(red/ blue/ green - not supplied) from the
Y PB PR sockets on the recorder to the
corresponding component video input
sockets (usually labelled as Y Pb/Cb Pr/Cr
or YUV) on the TV.
B
Connect the audio cable (red/white - not
supplied) from the AUDIO L/R sockets
on the recorder to the audio input
sockets on the TV.
Option 4
Note:
To enable the Y Pb Pr (YUV) connection,
you must set the recorder’s video output
correctly.
A
Make an additional video connection
from the recorder your TV using Scart,
S-Video or CVBS.
B
Turn on your TV to the correct viewing
channel for the above video connections.
C
When installation and set-up is complete,
change the video output setting of this
recorder as follows:
1) Press SETUP.
2) Move to { Video } > { Video
Output } > { YUV P-Scan }. Press OK
to con rm.
To activate Progressive Scan output, see
‘Other Information – Setting up
Progressive Scan feature’ for details.
D
Switch your TV to the correct viewing
channel for the component video
connection. (See your TV user manual
for details).
HDR3500_05_eng_30381.indd 17HDR3500_05_eng_30381.indd 17 2008-02-27 10:51:36 AM2008-02-27 10:51:36 AM
