English
21
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
VIDEO OUT AUDIO OUT
AUDIO
ANTENNA-IN
TV-OUT
TO TV
EXT1
TO VCR/SAT
EXT2
COMPONENT
VIDEO OUT
P
B
P
R
Y
R
L
S-VIDEO IN
TV
SCART IN
A
B
C
D
E

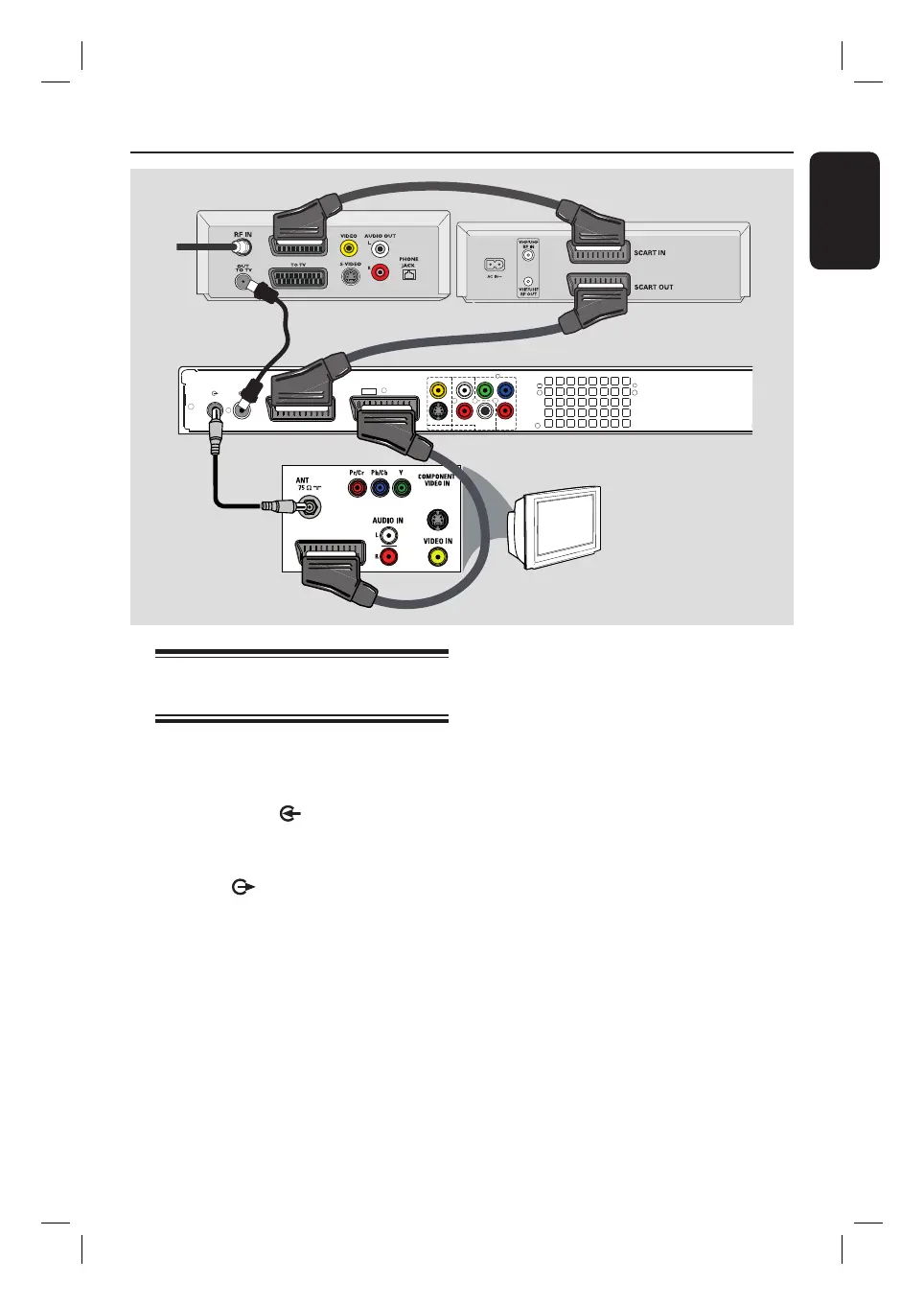

Step 2: Optional Connections (continued)
Connecting to a VCR and
Cable Box/Satellite Receiver
A
Connect the existing antenna cable from
the antenna output socket on the Cable
Box/ Satellite Receiver to the
ANTENNA-IN socket on the
recorder.
B
Connect an RF antenna cable from the
TV-OUT
socket on the recorder to
the antenna input socket on your TV
(usually labelled as ANT, ANTENNA IN,
RF IN).
C
Connect a scart cable (not supplied) from
the EXT1 TO TV socket on the
recorder to the corresponding scart
socket on the TV.
D
Connect another scart cable (not
supplied) from the EXT2 TO VCR/
SAT socket on the recorder to the scart
output socket on the VCR (usually
labelled as TV OUT or TO TV).
E
Connect another scart cable (not
supplied) from the scart socket (usually
labelled as TV IN or TO DECODER) on
the VCR to the scart socket (usually
labelled as TV OUT or TO TV) on the
Cable Box/Satellite Receiver.
Back of a VCR
(Example only)
Back of Cable Box /Satellite
Receiver (Example only)
