Philips Q528.1E - Page 11

Mechanical Instructions
EN 11Q528.1E LA 4.

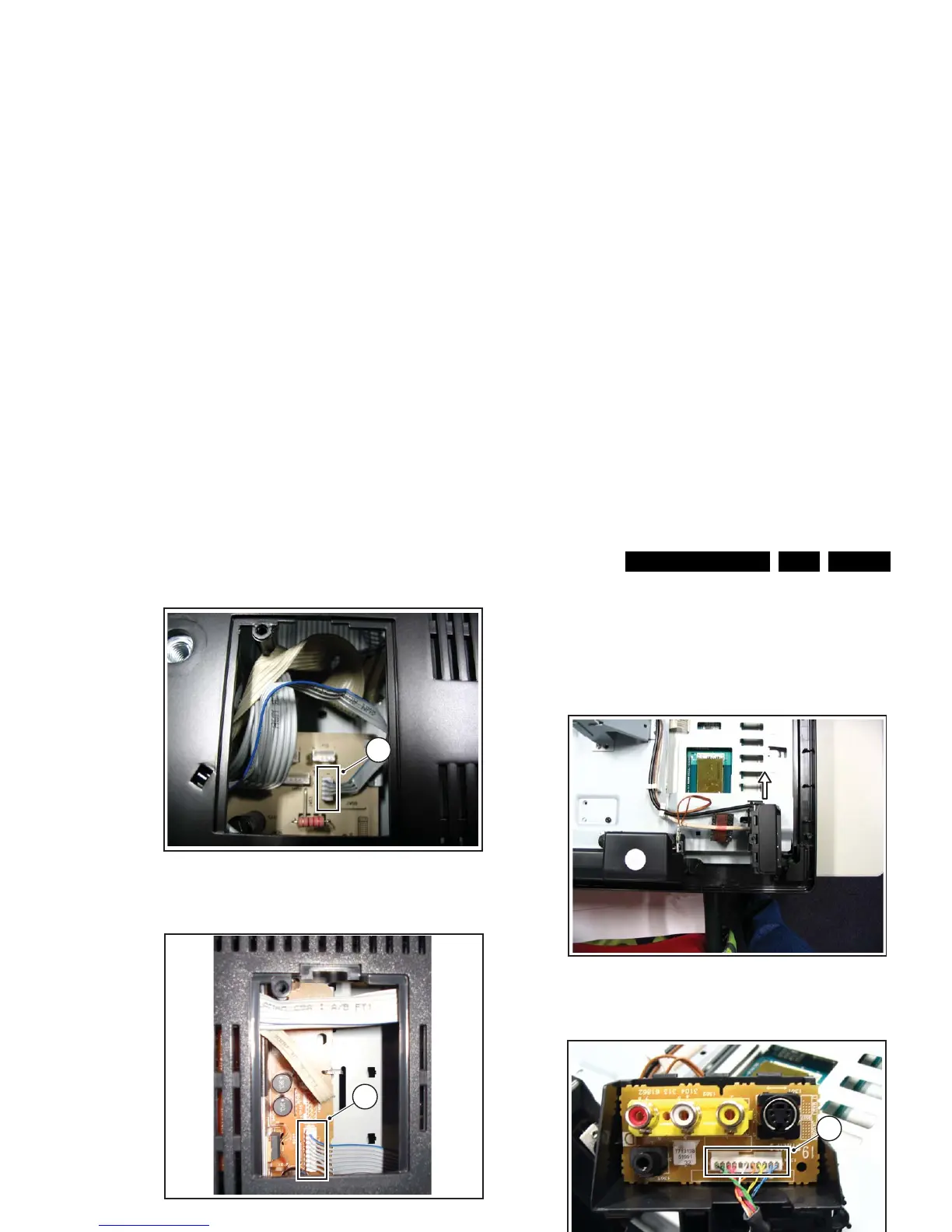

Figure 4-7 Cover Removal -2-
Figure 4-8 Cover Removal -1- (32”)
Figure 4-9 Cover Removal -2- (32”)
4.3.2 Side I/O Board
Refer to next figures for details.
1. Slide the unit upwards.
2. Unplug connector [1] and take the PWB out of its casing.
When defective, replace the whole unit.
Figure 4-10 Side I/O Board -1-
Figure 4-11 Side I/O Board -2-
H_16800_110.eps
090507
4
H_16800_139.eps
100507
4
H_16800_138.eps
100507
4
H_16800_111.eps
090507
H_16800_112.eps
090507
1
