7.3.2 Connecting to the network
• Connect the device to the network. To do this, you need a suitable UTP cable (CAT5)
which is not included in the scope of supply.
• Connect the internal network interface LAN 1 of the device to the corresponding Ether-
net network card of the configuration computer or a valid network connection of the in-
ternal network (LAN).

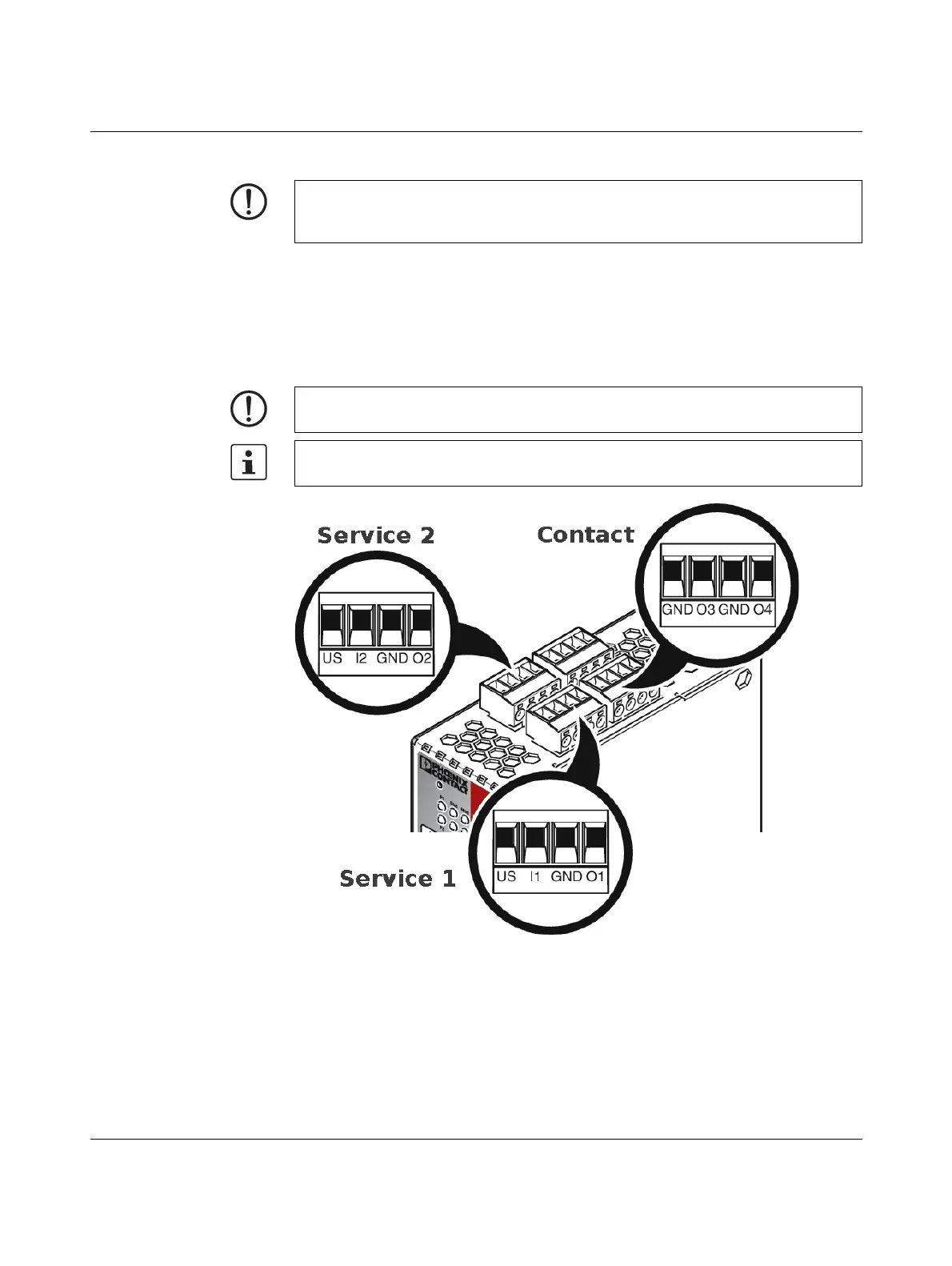

7.3.3 Service contacts
NOTE: Only connect the device network ports to LAN installations. Some telecommuni-
cations connections also use RJ45 sockets; these must not be connected to the RJ45
sockets of the device.
NOTE: Do not connect the voltage and ground outputs US (resp. CMD V+) and GND to
an external voltage source.
The plug-in screw terminal blocks of the service contacts may be removed or inserted
during operation of the device.
