FL MGUARD PCI(E)4000
196
PHOENIX CONTACT 105656_en_05
9.1 Operating elements and LEDs

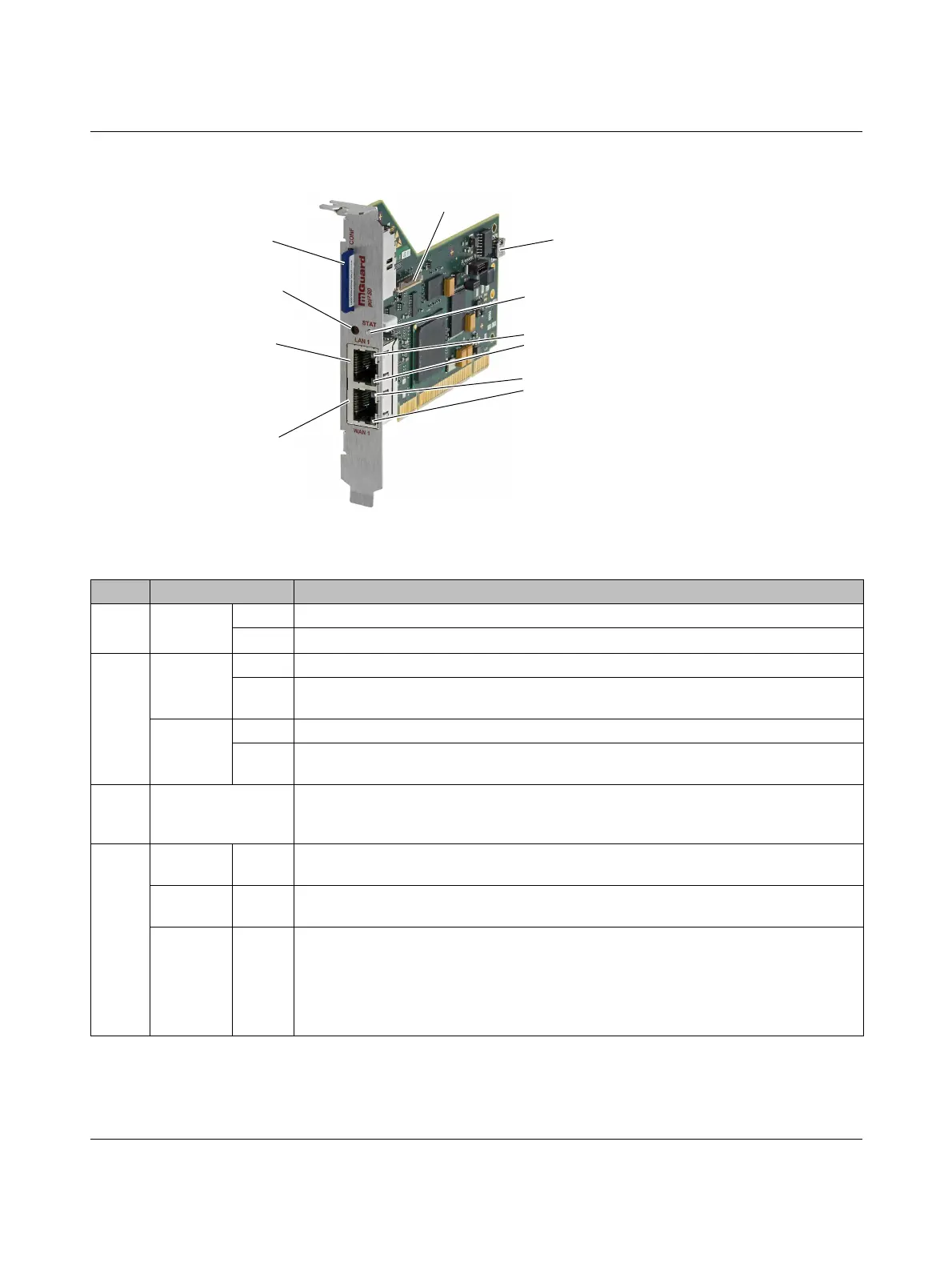

Figure 9-2 Operating elements and LEDs on the FL MGUARD PCI4000
WAN 1 LED
SD card slot (configuration
memory)
Reset button
RJ45 socket (LAN 1) for
connecting to the internal
network
RJ45 socket (WAN 1) for
connecting to the external
network/Internet
LAN 1 LED
Battery (can be replaced)
Extension connection (LEDs, Reset button, SD card)
STAT LED
LAN 2 LED
WAN 1 LED
Table 9-2 LEDs on the FL MGUARD PCI4000
LEDs State Meaning
WAN 1
LAN 1
Green On Full duplex
Off Half duplex
WAN 2
LAN 2
Yellow On 10 Mbps
Flash-
ing
10 Mbps, data transmission active
Green On 100 Mbps
Flash-
ing
100 Mbps, data transmission active
LAN 1
LAN 2
WAN 1
Various LED light
codes
Recovery procedure/flashing
See “Restart, recovery procedure, and flashing the firmware” on page 208.
STAT Red/green Flash-
ing
Boot process. When the device has just been connected to the power supply. After a few
seconds, this LED changes to the heartbeat state.
Green Flash-
ing
Heartbeat. The device is connected correctly and ready to operate.
Red Flash-
ing
System error. Restart the device.
• Press the Reset button (for 1.5 seconds).
• Alternatively, briefly disconnect the device power supply and then connect it again.
If the error is still present, start the recovery procedure (see “Performing a recovery proce-
dure” on page 209) or contact your dealer.
