FL MGUARD RS4000 TX/TX VPN-M
105656_en_05 PHOENIX CONTACT 147
7.3 Installation of FL MGUARD RS4000 TX/TX VPN-M
7.3.1 Mounting/removal
Mounting The device is ready to operate when it is supplied. The recommended sequence for mount-
ing and connection is as follows:
Mount the device on a grounded 35 mm DIN rail according to DIN EN 60715.

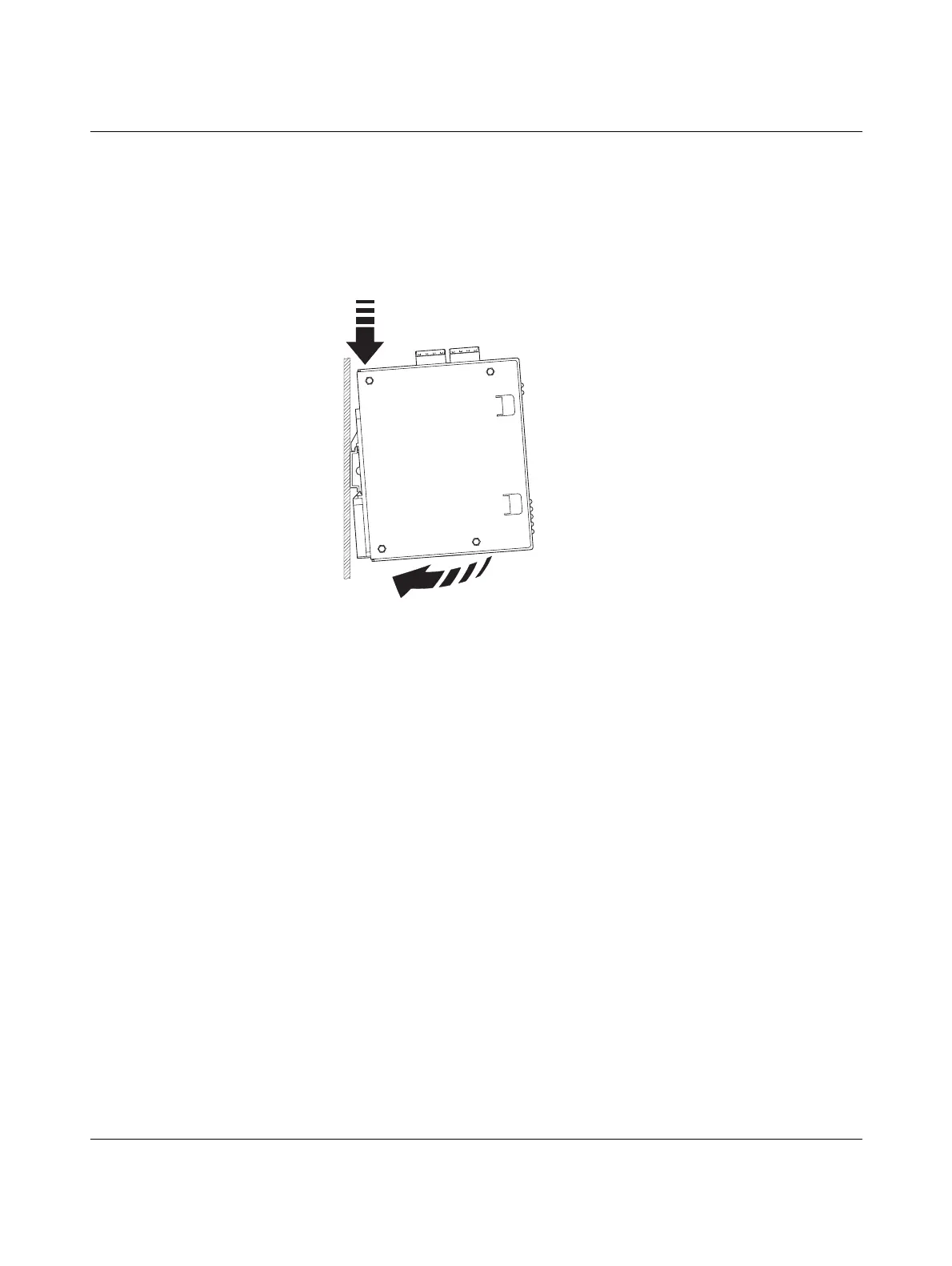

Figure 7-3 Mounting the device on a DIN rail
Attach the top snap-on foot of the device to the DIN rail and then press the device down
towards the DIN rail until it engages with a click.
Removal Remove or disconnect the connections.
To remove the device from the DIN rail, insert a screwdriver horizontally in the locking
slide under the housing, pull it down – without tilting the screwdriver – and then pull up
the device.
