FL MGUARD RS2000 TX/TX-B
100
PHOENIX CONTACT 105656_en_05
5.1 Operating elements and LEDs

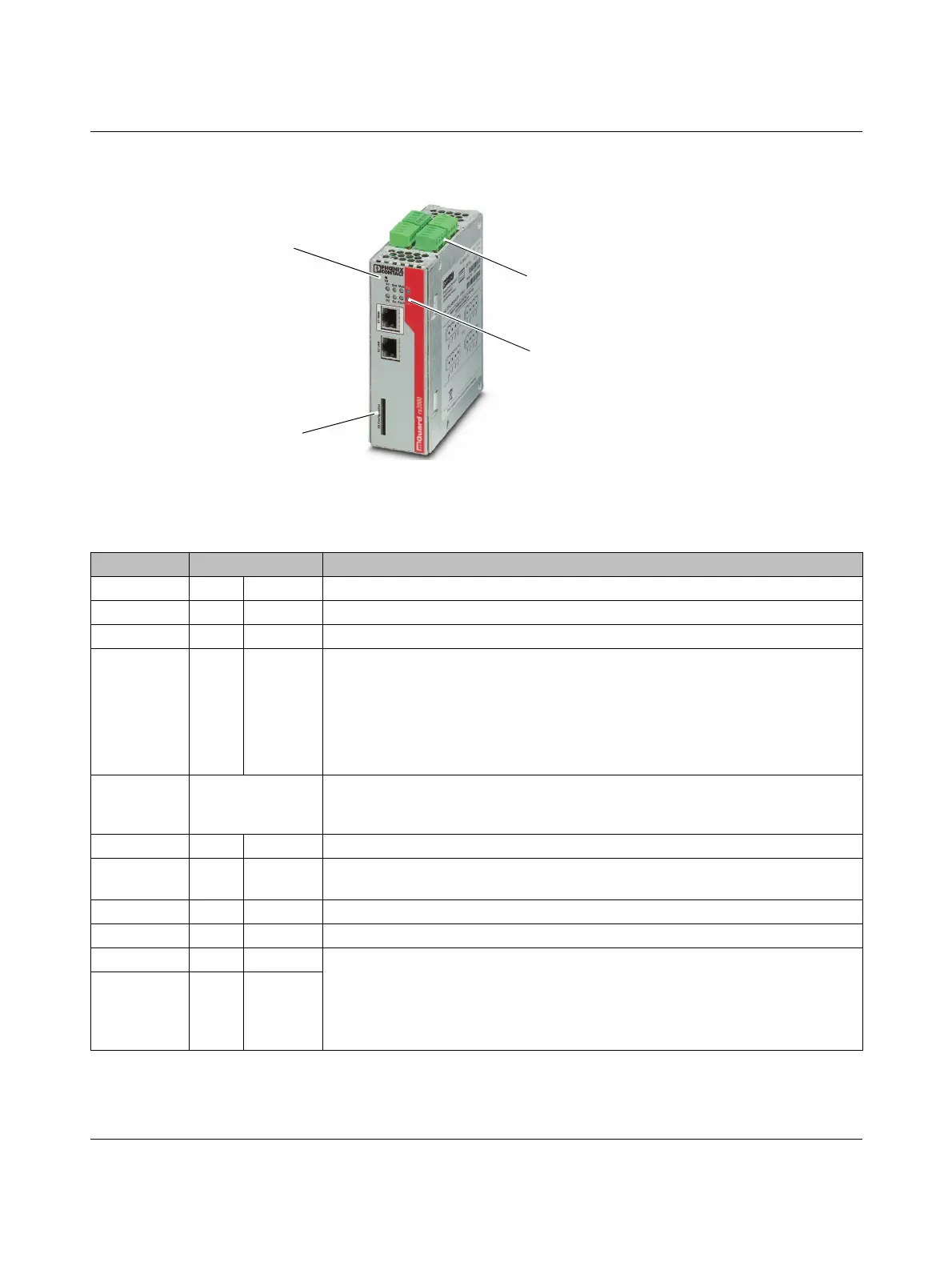

Figure 5-2 Operating elements and LEDs on the FL MGUARD RS2000 TX/TX-B
LEDs, see Table 5-2
For plug-in screw terminal blocks, assign-
ment, refer to Page 103 and Page 107
Configuration
(SD card)
Connections at bottom:
9-pos. serial interface
(console)
Reset button
Table 5-2 LEDs on the FL MGUARD RS2000 TX/TX-B
LED State Meaning
P1 Green On Power supply 1 is active
P2 Green Off Redundant supply not provided
STAT Green Flashing Heartbeat. The device is correctly connected and operating.
ERR Red Flashing System error. Restart the device.
– Press the Reset button (for 1.5 seconds).
– Alternatively, briefly disconnect the device power supply and then connect it
again.
If the error is still present, start the recovery procedure (see Page 112) or contact your
dealer.
STAT+ E RR Flashing alter-
nately: green and
red
Boot process. When the device has just been connected to the power supply. After
a few seconds, this LED changes to the heartbeat state.
SIG –(Not used)
FAULT Red On The signal output is open due to an error at “low” signal (see Page 105). The signal
output is inactive during a restart.
MOD Green Off (Connection via modem is not provided)
INFO Green Off (VPN connection is not provided)
LAN Green On The LAN/WAN LEDs are located in the LAN/WAN sockets (10/100 and duplex LED)
Ethernet status: Indicates the status of the LAN or WAN port. As soon as the device
is connected to the relevant network, a continuous light indicates that there is a con-
nection to the network partner in the LAN or WAN. When data packets are transmit-
ted, the LED goes out briefly.
WAN Green On
