8.1 Operating elements and LEDs
8.1.1 Status and diagnostics indicators

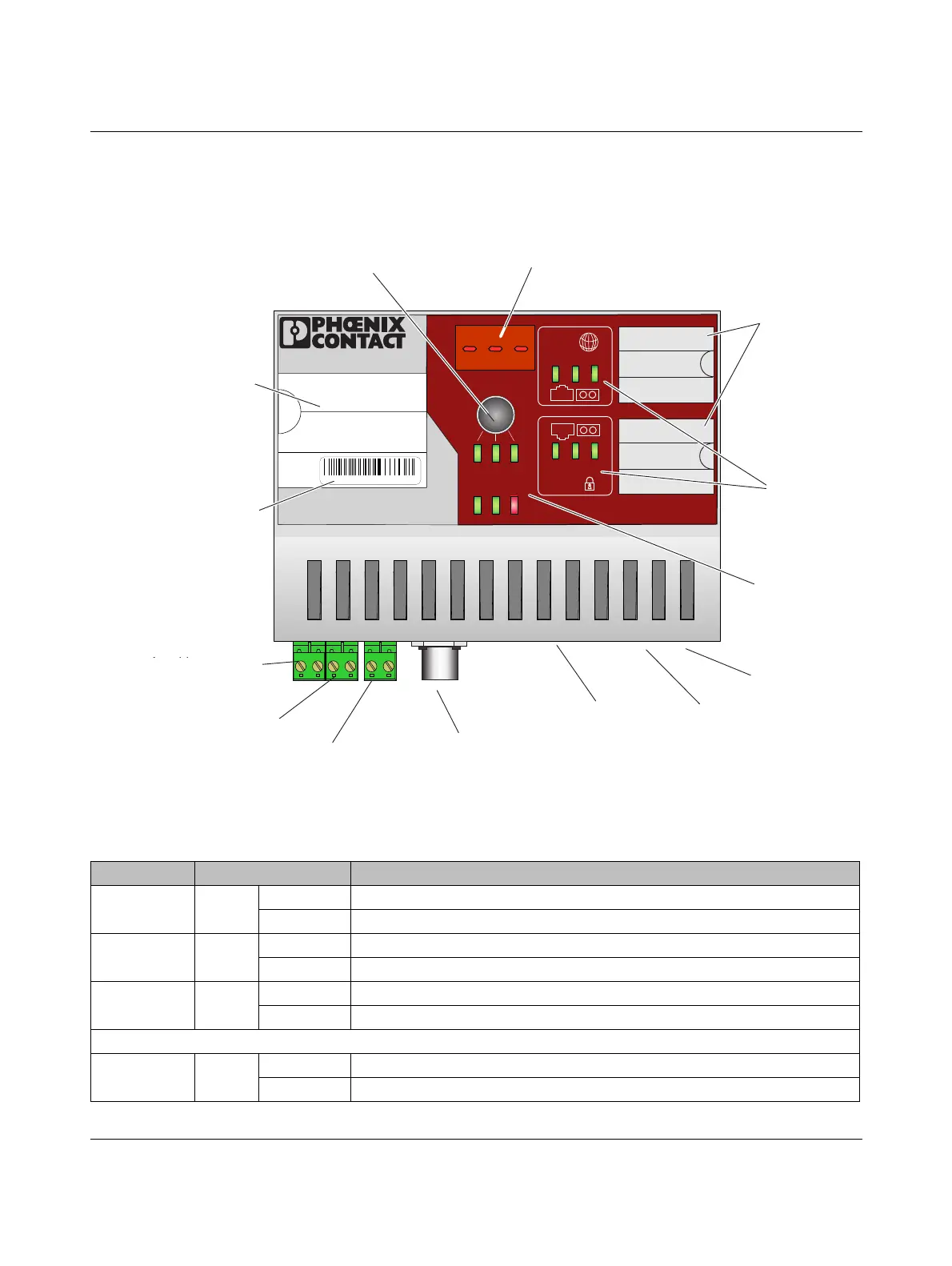

Figure 8-2 Operating elements and LEDs on the FL MGUARD GT/GT
00.A0.45.06.04.02
MAC
Address
US2 FAIL
X5
US1 GND
X7
R1 R2
FL MGUARD GT/GT VPN
Ord. No. 2700198
US1
X9
V.24
SPD
FD
ACT
MODE
WAN
MODE
INF LNK
X3
LAN
MODE INF LNK
X4
X1
X2
X8
MEM
X6
MC1 GND
Anschluss
Versorgungsspannung US1
V.24-Schnittstelle
Mini-DIN
Potenzialfreier
Meldekontakt
allg. Diagnose/
Status-Anzeigen
MODE-Umschalter
mit LEDs
Geräte-Beschrif-
tungsfeld
MAC-Adresse
Port-
Beschriftungsfelder
RJ45-
Ports
M12-Buchse für
Parametrierungsspeicher
SFP-Slots
Display
Diagnose/
Status-Anzeigen
je Port
Anschluss
Versorgungsspannung US2
VPN-Freigabetaster
MODE switch with
LEDs
7-segment display
Device marking field
MAC address
Supply voltage connec-
tion US1
Port marking fields
RS-232 interface, Mini-
DIN
Supply voltage connec-
tion US2
VPN enable button
Floating signal con-
tact
LEDs
SFP slots
RJ45 ports
M12 socket for parameter-
ization memory
LEDs for each
port
Table 8-2 LEDs on the FL MGUARD GT/GT
LED State Meaning
US1 Green On Supply voltage 1 within the tolerance range
Off Supply voltage 1 too low
US2 Green On Supply voltage 2 within the tolerance range
Off Supply voltage 2 too low
FAIL Red On Signal contact open, i.e., an error has occurred
Off Signal contact closed, i.e., an error has not occurred
A Link LED is located on the front of the device for the LAN and WAN port.
LNK
(Link)
Green On Link active
Off Link not active
