PianoDisc Installation Guide 29
. . . . .

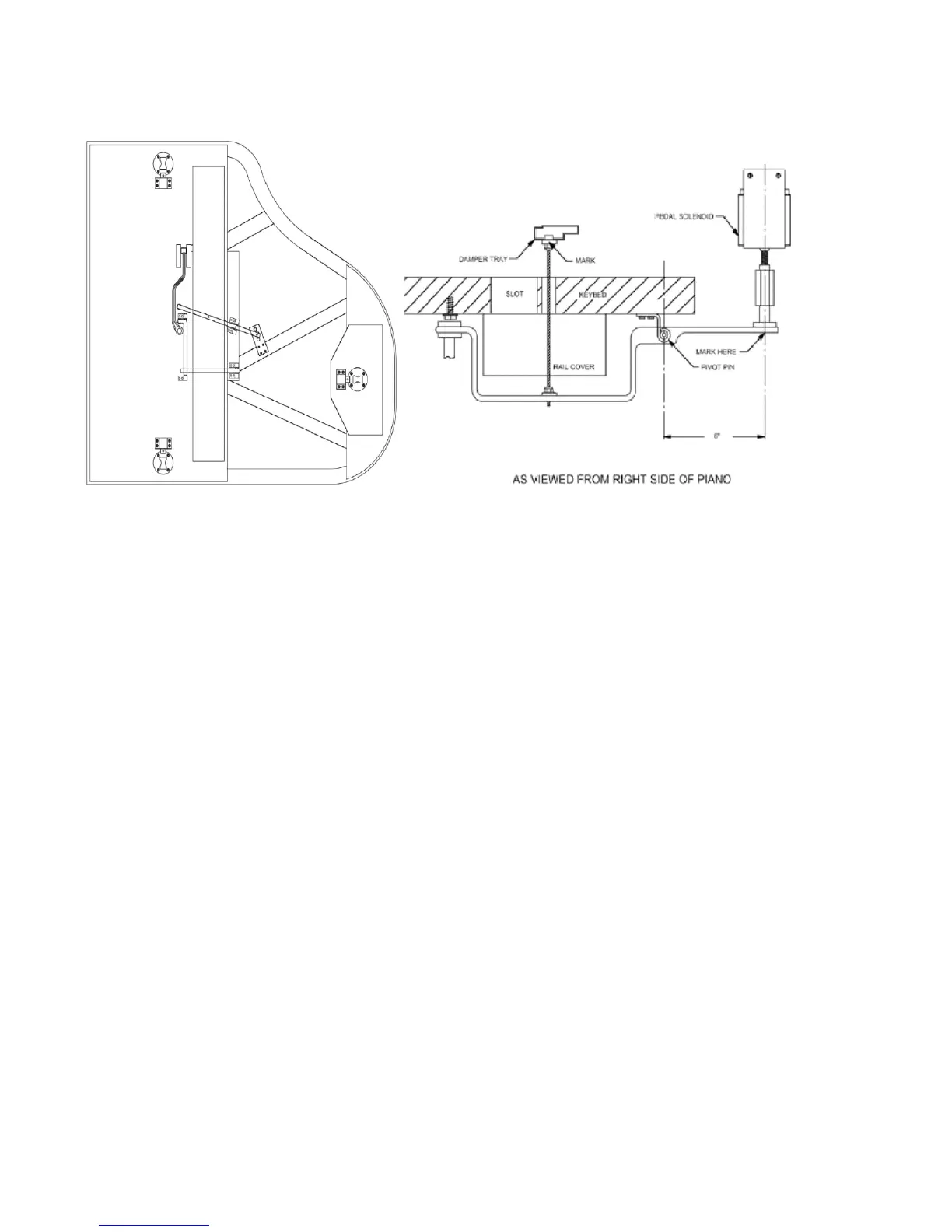

Figure 16A Figure 16B
D. Locating the best place for the pedal solenoid. Glue felt to the side of
the pedal solenoid to cushion between the beam and solenoid.
• Center the sustain lever over the solenoid rail cover outline.
• Place the pedal solenoid on the beam aligning with the 6” location established in
Step C. Attach the pedal solenoid at this time.
NOTE: It may be necessary to place a block of wood on the beam as a spacer
for better alignment.
Pianos with no support beam. In this case, it is necessary to install a beam
of wood to mount the sustain solenoid and possibly a speaker. Use a 4” x 6”
piece of wood attached by metal “L” brackets on the belly rail. At the other end
use glue and attach to the leg base console with two screws
E. Mount the sustain lever. Place the sustain lever between the rail cover
outline in line with the lyre sustain pedal rod and pedal solenoid.
• Mount lever in place with screws supplied in the installation kit.
F. Threaded rod (pitman arm). The threaded rod will need to have access to
the damper tray outside of the solenoid slot area.
• Look down the sustain lever at the keybed and mark the amount of wood to be
cut out for this purpose.
• Make this cut with a jig saw.
To Next Page
