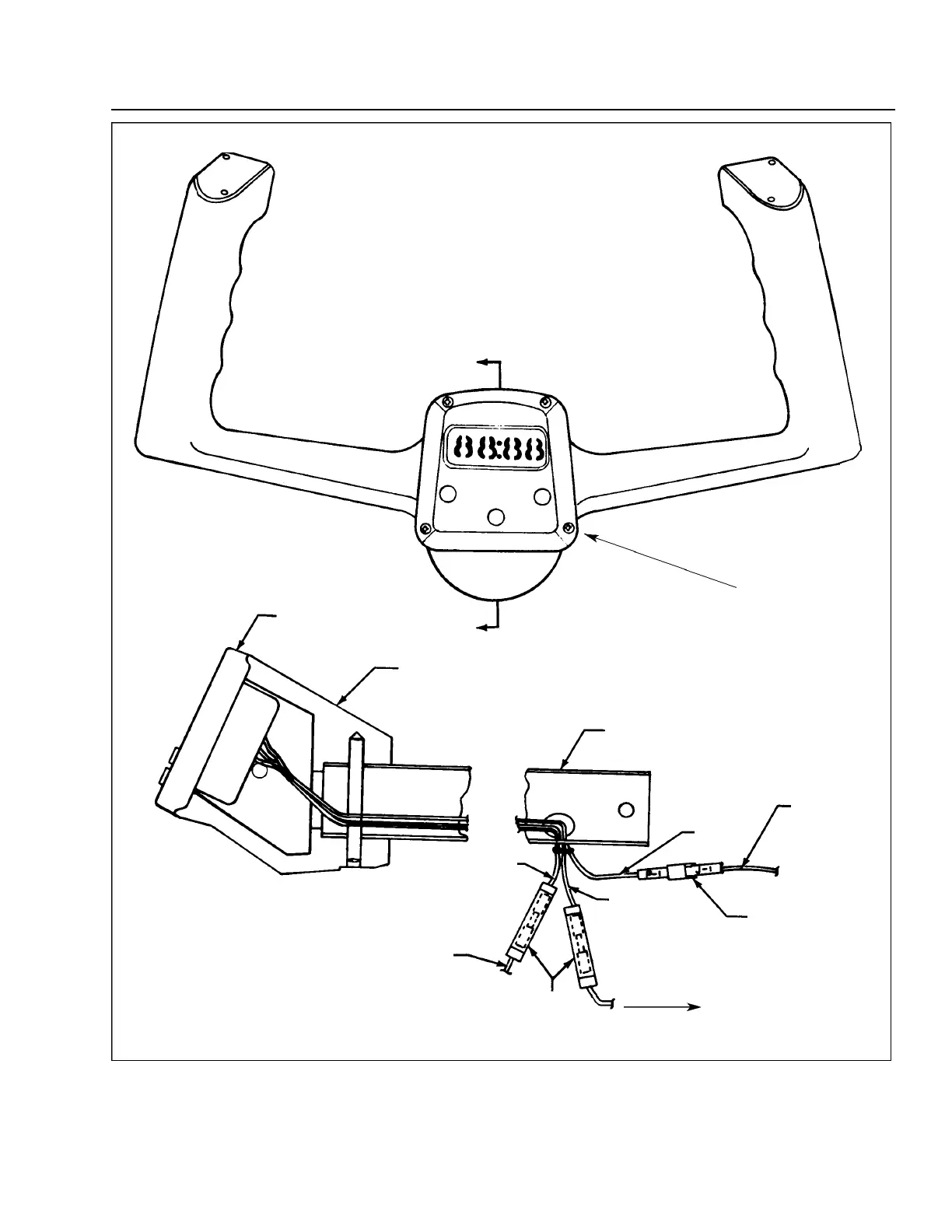

Figure 39-2. Electric Clock Installation (cont)
C679
C689
NO. 4 FLAT HEAD, SELF-TAPPING,
7/8 IN. LONG, SCREW (4 EACH)
PART OF
86414-2
WIRE
ASSEMBLY
CONNECTOR
BLACK
TO GROUNDSPLICE
MODE
RST
MODE
ST/SP
M2BR
RED
WHITE
CONTROL WHEEL TUBE ASSEMBLY
CONTROL
WHEEL
ASTROTECH LC-2P
CHRONOMETER
CONTROL WHEEL MOUNTED
CLOCK INSTALLATION - OPTIONAL
VIEW A - A
A
A
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
3 9 - 1 3 - 0 0
Page 39-07
Revised: May 15, 1989
2L3
PIPER AIRCRAFT
