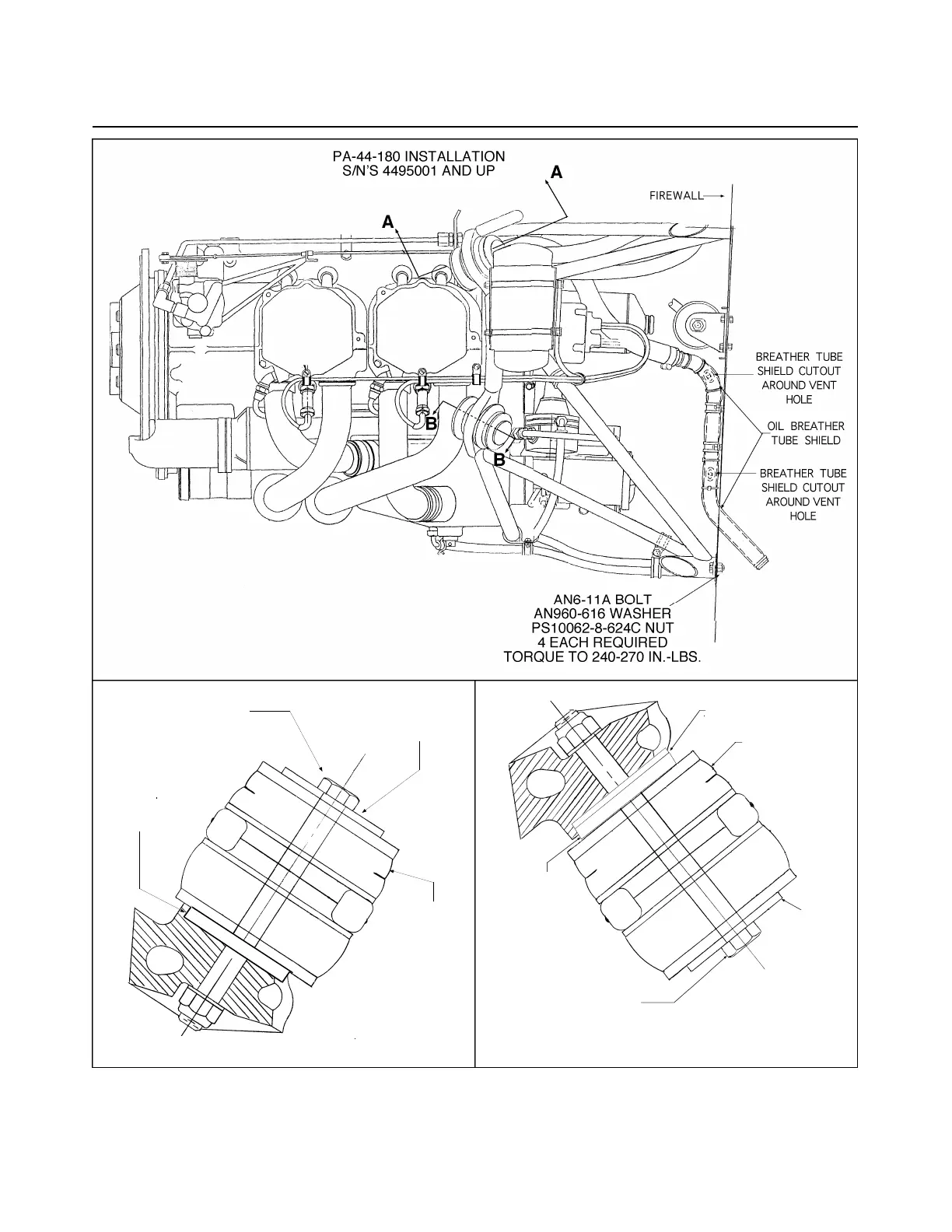

Figure 71-1. Engine and Shock Mount Installation (Sheet 2 of 3)
(S/n’s 4495001 and up)
PIPER AIRCRAFT
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
71-03-00
Page 71-11
Added: June 20, 1995
3E9
AN7-45A BOLT
AN960-716 WASHER
MS20365-720C NUT
2 EACH REQUIRED
TORQUE TO
450 - 500 IN. LBS.
WASHER SUPPLIED
WITH KIT
J9613-40 KIT
(PURCHASED
FROM LORD)
UPPER MOUNT
VIEW A-A
62833-140
WASHER
(2 REQUIRED)
WASHER SUPPLIED
WITH KIT
J9613-40 KIT
(PURCHASED
FROM LORD)
85012-101
WASHER
AN7-46 A BOLT
AN960-716 WASHER
MS20365-720C NUT
2 EACH REQUIRED
TORQUE TO
450 - 500 IN. LBS.
LOWER MOUNT
VIEW B-B
62833-140
WASHER
(2 REQUIRED)
