2.2.3 Wall Mount Plate Mounting
To install the Modbus Gateway on the wall, please follow the instructions below.
Follow all the DIN-rail installation steps as shown in the example.
Step 1: Remove the DIN-rail bracket from the Modbus Gateway. Use the screwdriver to loosen the screws to remove the
DIN-rail.bracket.

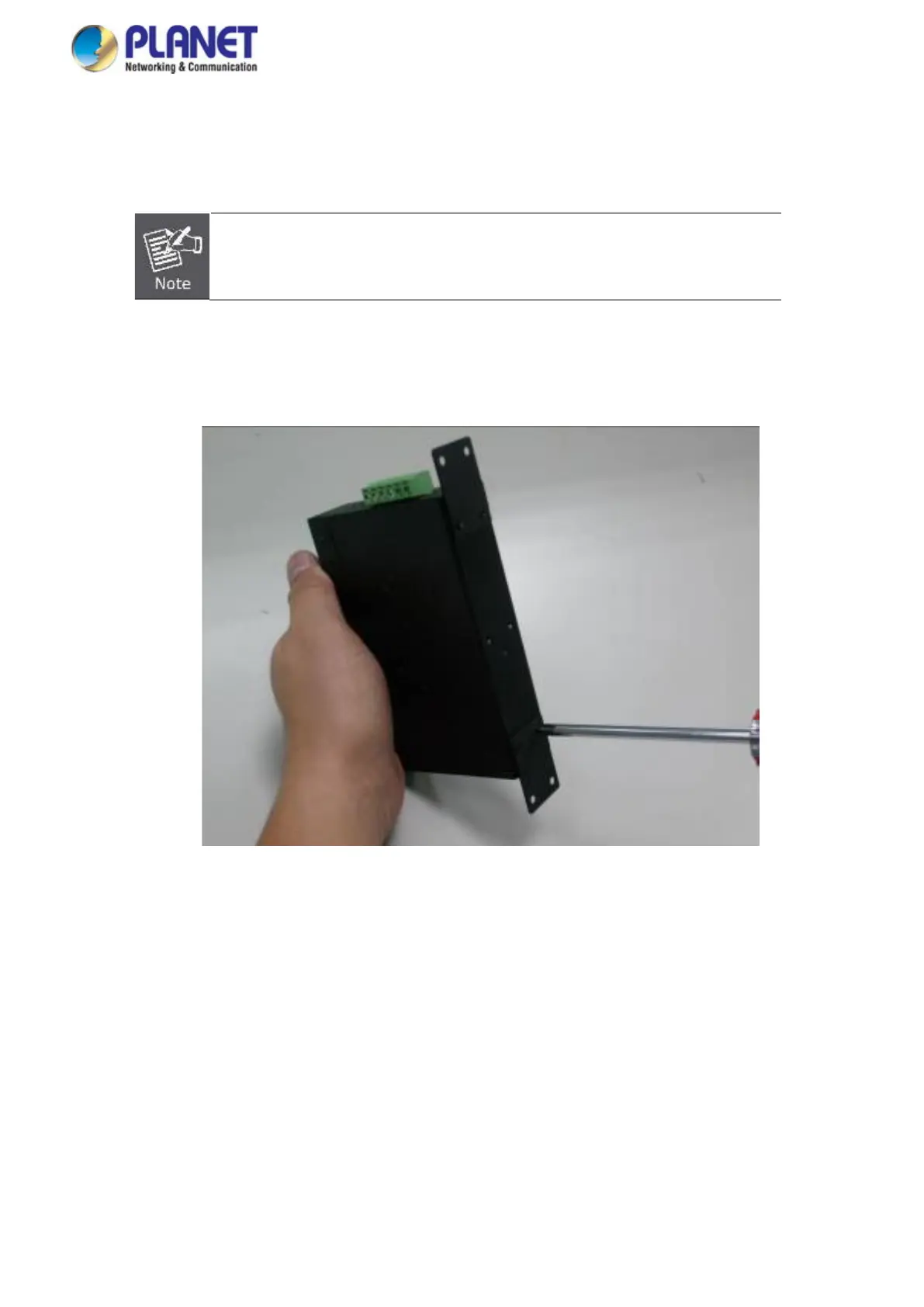

Step 2: Place the wall-mount plate on the rear panel of the Modbus Gateway.
Step 3: Use the screwdriver to screw the wall-mount plate on the Modbus Gateway.
Step 4: Use the hook holes at the corners of the wall mount plate to hang the Modbus Gateway on the wall.
Step 5: To remove the wall-mount plate, reverse the steps above.
