User’s Manual of IMG-2x00T Modbus Gateway Series
53

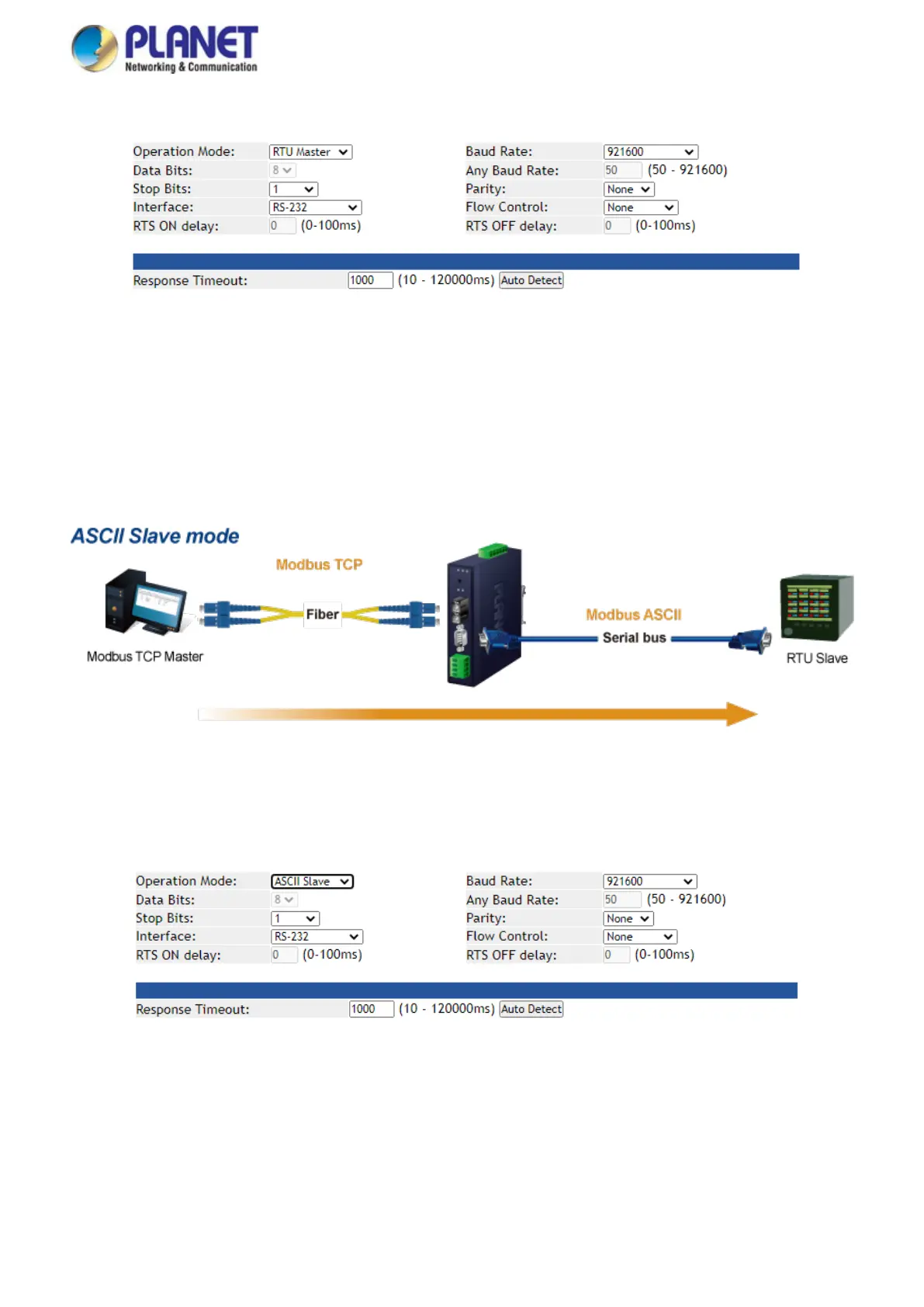

The serial Telnet mode screenshot in Figure 4-5-8 appears.
Figure 4-5-8: RTU Master Mode Screenshot
4.5.2.4 ASCII Slave mode
This function allows the users to use Modbus TCP master device and Modbus ASCII device to achieve communication. The
operation mode of the gateway is set to ASCII Slave. The TCP server mode topology in Figure 4-5-9 appears.
Figure 4-5-9: ASCII Slave Mode Topology
The TCP server mode screenshot in Figure 4-5-10 appears.
Figure 4-5-10: ASCII Slave Mode Screenshot
