User’s Manual of IMG-2x00T Modbus Gateway Series
11
1.5 Product Specifications
Product IMG-2100T IMG-2105AT
IMG-2102T
IMG-2102TS
IMG-2200T IMG-2400T
Serial Interface
Serial Port 1 x DB9 male 2 x DB9 male 4 x DB9 male
Serial Standards
RS232/RS422/4-wire RS485/2-wire RS485
Baud Rate (Data Rate) 50bps to 921Kbps
Data Bits 5, 6, 7, 8
Stop Bit 1, 1.5, 2
Parity Type
Odd, Even, None, Space, Mark
Flow Control
RTS/CTS and DTR/DSR (RS232 only)
XON/XOFF
Signals
RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS485: Data A (+), Data B (-), GND

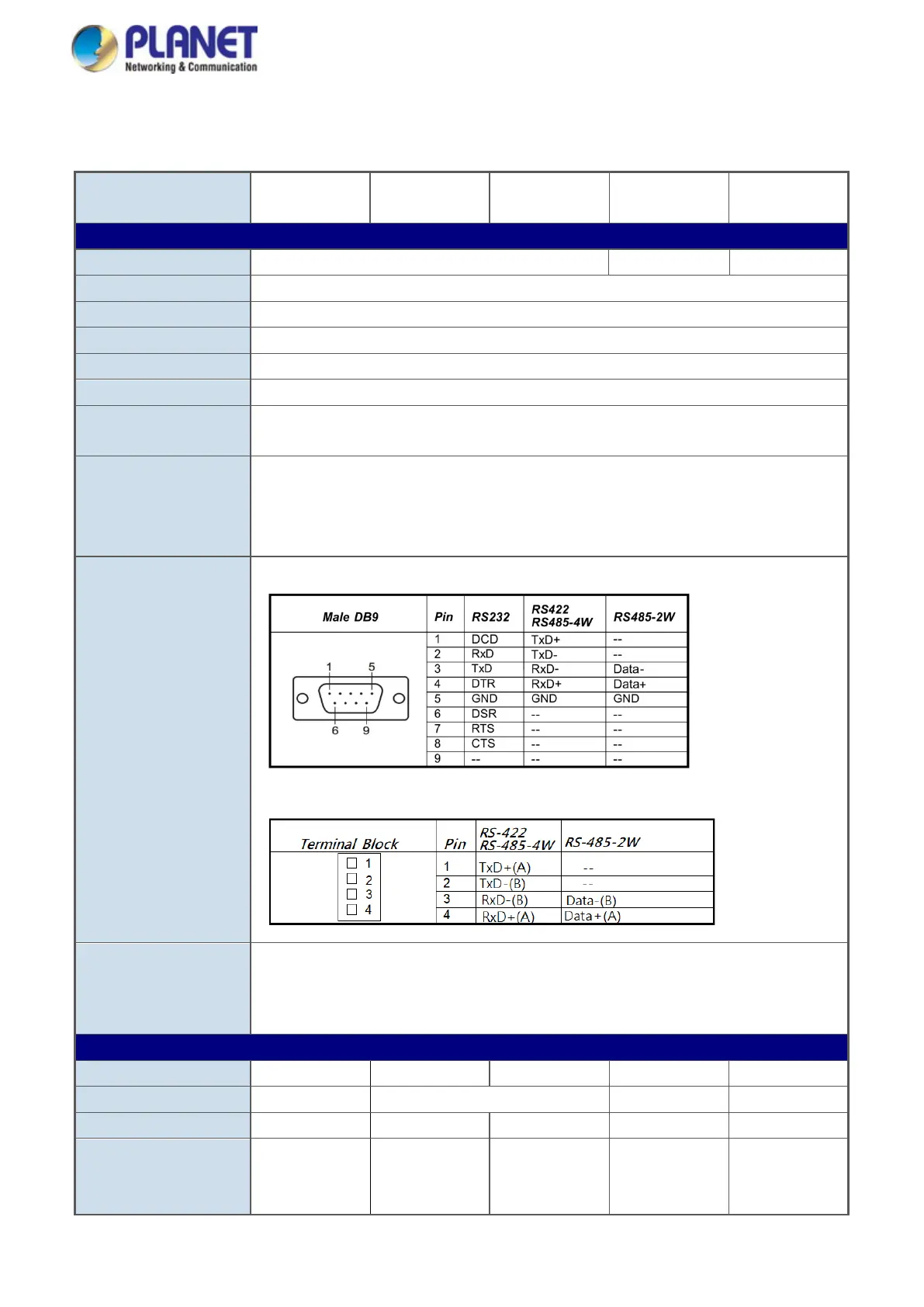

Pin Assignment
Serial Port
4-pin Terminal Block
Operation Mode
RTU Master/RTU Slave/ASCII Master/ASCII Slave
Master mode: Supports up to 32 TCP slave connection requests
Slave mode: Supports up to 32 TCP master connection requests
Ethernet Interface
Ethernet Ports 1 x RJ45 1 x SFP 1 x SC 2 x RJ45 2 x RJ45
Standard 10/100BASE-TX 100BASE-FX 10/100BASE-TX 10/100BASE-TX
Connector RJ45 LC Duplex SC RJ45 RJ45
Fiber Mode -
Single mode or
multi modes
(may vary on
IMG-2102T: Multi
modes
IMG-2102TS:
- -
