A.4 E&M Card Technical Specifications
Type V, four wires
A.5 Console Port
The console port uses a DB-9 RS-232 connector. The supplied straight-through RS-232 cable con-
nects the console port of VIP to a console PC or terminal. Pinout for the port is described in the fol-
lowing table.
DB-9 pin Signal
1 Not connected
2 TxD
3 RxD
4 Not connected
5 Ground
6 Not connected
7 Not connected
8 Not connected
9 Not connected
A.6 LAN Port

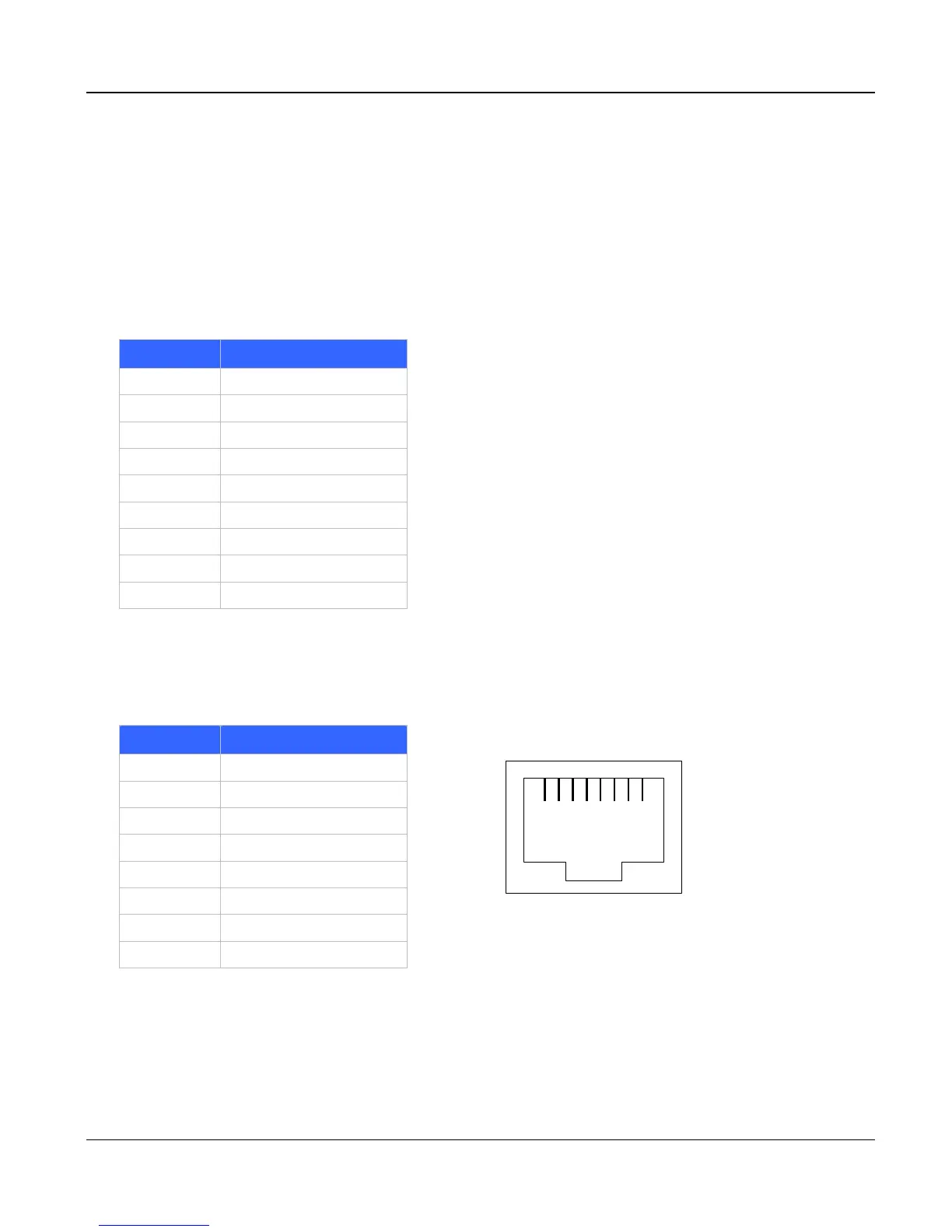

The 10/100 LAN port use standard RJ-45 connector and Ethernet pinouts. The following diagram
and table show the pinout on the port connector. When connecting the LAN port to switches or re-
peaters, you must use a straight-through cable.
RJ45 pin Signal
1 RxD+
2 RxD-
3 TxD+
4 Not connected
5 Not connected
6 TxD-
7 Not connected
8 Not connected
12345678
